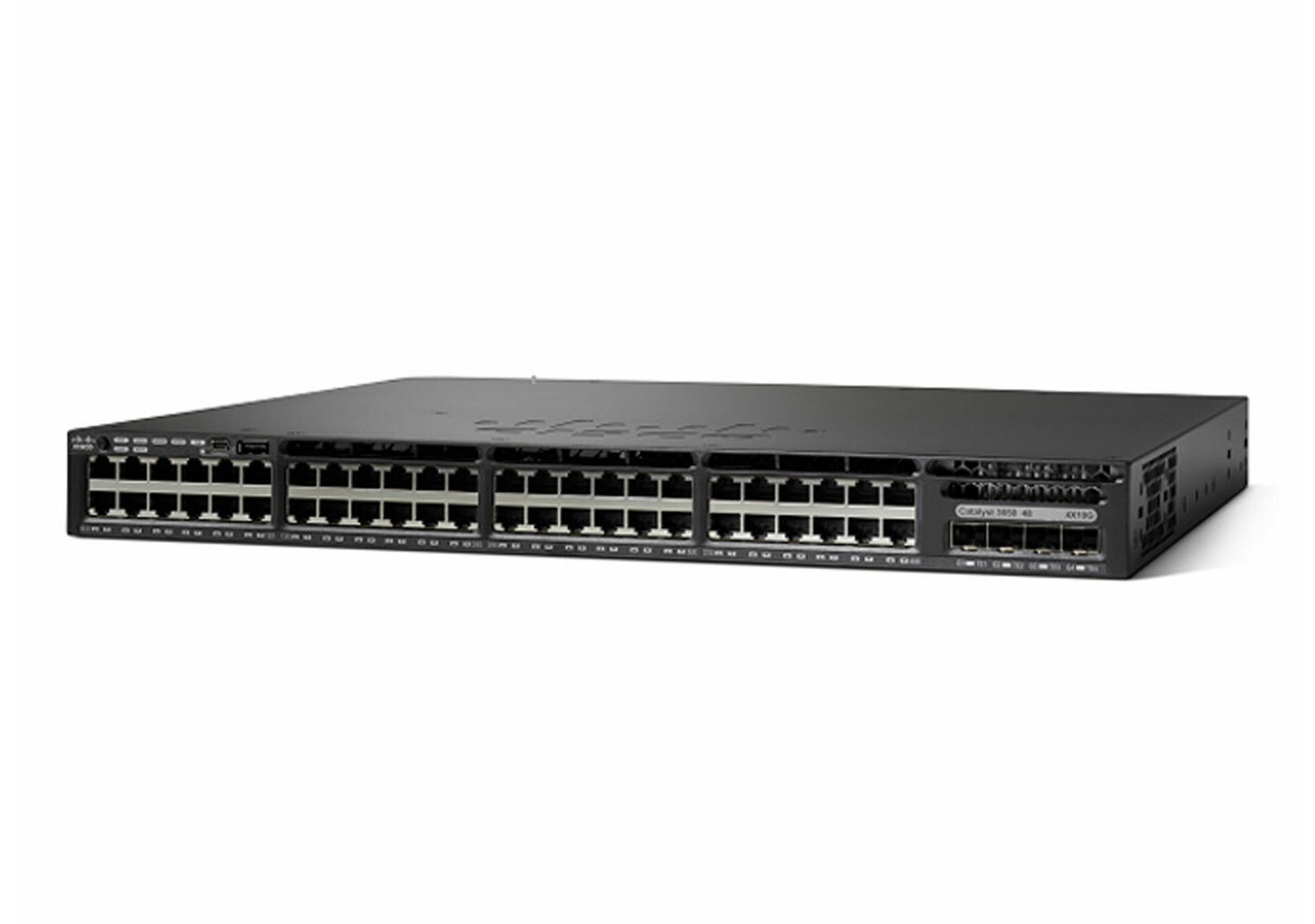

• Cisco WS-C3650-48FD-E switch with 48x 1G PoE+ ports
1 1

Cisco

Cisco WS-C3650-48FD-E | Catalyst 3650 48-Port Full PoE+ Switch, IP Services

WS-C3650-48FD-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3650 is a 1 RU enterprise access-layer switch built for campus and branch deployments that need full PoE+ on every port. It combines wired access with an integrated wireless controller capability, so a single IOS XE platform can terminate CAPWAP access points as well as power IP phones, 802.11n/ac access points and other 802.3at devices.

This model provides 48 Gigabit Ethernet ports with PoE+ at up to 30W per port, plus uplinks of 2x 10G SFP+ and 2x 1G SFP. Switching capacity is 176 Gbps with a forwarding rate of 104.16 Mpps. It ships with the IP Services feature set and a PWR-C2-1025WAC power supply, which delivers 775 W of PoE power on its own. Running 30W on all 48 ports requires two supplies.

Optional StackWise-160 stacking gives 160 Gbps of stack bandwidth across up to nine switches, using STACK-T2 cables and the C3650-STACK-KIT. A stack can only include other Catalyst 3650 switches running the same feature set. The PWR-C2-250WAC, PWR-C2-640WAC and PWR-C2-640WDC supplies are also supported.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Converged wired and wireless access on a single Cisco IOS XE platform
- Integrated wireless controller capability in mobility agent and mobility controller modes
- StackWise-160 stacking with SSO resiliency for up to 9 switches per stack
- Full IEEE 802.3at PoE+ with 30W available on all ports in a 1 RU form
- Advanced Layer 3 routing in IP Services: OSPF, EIGRP, BGPv4, IS-ISv4, PIM and IPv6 routing
- Flexible NetFlow for wired and wireless application visibility
- Hierarchical wired and wireless QoS per AP, radio, SSID and user using MQC
- Security features including 802.1X, DHCP snooping, DAI, IP source guard and port security
- Cisco Catalyst Smart Operations: Smart Install, Auto Smartports and EEM

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: WS-C3650-48FD-E
- Ethernet ports: 48 x 10/100/1000 PoE+ (up to 30W per port)
- Uplinks: 2 x 10 Gigabit Ethernet SFP+ and 2 x 1 Gigabit Ethernet SFP
- Power supply: PWR-C2-1025WAC (1025 W AC)
- Available PoE power: 775 W with a single supply
- Switching capacity: 176 Gbps
- Forwarding rate: 104.16 Mpps
- Stacking bandwidth: 160 Gbps (StackWise-160, optional, up to 9 switches)
- Wireless bandwidth per switch: up to 40 Gbps
- MAC addresses: 32,000
- IPv4 routes (ARP plus learned routes): 24,000
- FNF entries: 48,000 flows
- DRAM: 4 GB
- Flash: 2 GB
- VLAN IDs: 4,094
- Switched virtual interfaces: 1,000
- Jumbo frame: 9198 bytes
- Feature set: IP Services
- Form factor: 1 RU
- Power consumption (no PoE load, 115VAC): 88.8 W at 0% traffic, 109.4 W at 100% traffic
- Operating temperature (AC supply): -5 to +45 C up to 1500 m
- Relative humidity: 5% to 96% noncondensing
- Storage temperature: -40 to 70 C
- Acoustic noise: 45 dB typical, 48 dB maximum

FAQs

Q: Which feature set does this switch run?
A: The -E suffix means it ships with the IP Services feature set, which adds full enterprise Layer 3 features such as advanced IPv4 and IPv6 routing, PIM multicast and IP SLA. A single universal IOS XE image is used, and licence levels can be upgraded via RTU licensing.

Q: Can it deliver 30W PoE+ on all 48 ports?
A: A single PWR-C2-1025WAC supply provides a 775 W PoE budget. Delivering 30W on all 48 ports requires two PWR-C2-1025WAC supplies.

Q: Which devices can it stack with?
A: It stacks using StackWise-160 with STACK-T2-50CM, STACK-T2-1M or STACK-T2-3M cables and the C3650-STACK-KIT. Stacking is only supported with other Catalyst 3650 switches running the same feature set.

Q: Do I need an extra licence to use the integrated wireless controller?
A: No additional licence is needed for mobility agent mode. An access point licence (LIC-CTIOS-1A) is required if the switch operates as a mobility controller.

Q: How does it differ from other Catalyst 3650 48-port models?
A: This model has full PoE+ on all 48 ports, 2x 10G SFP+ and 2x 1G SFP uplinks, a 1025 W AC power supply and the IP Services feature set.
