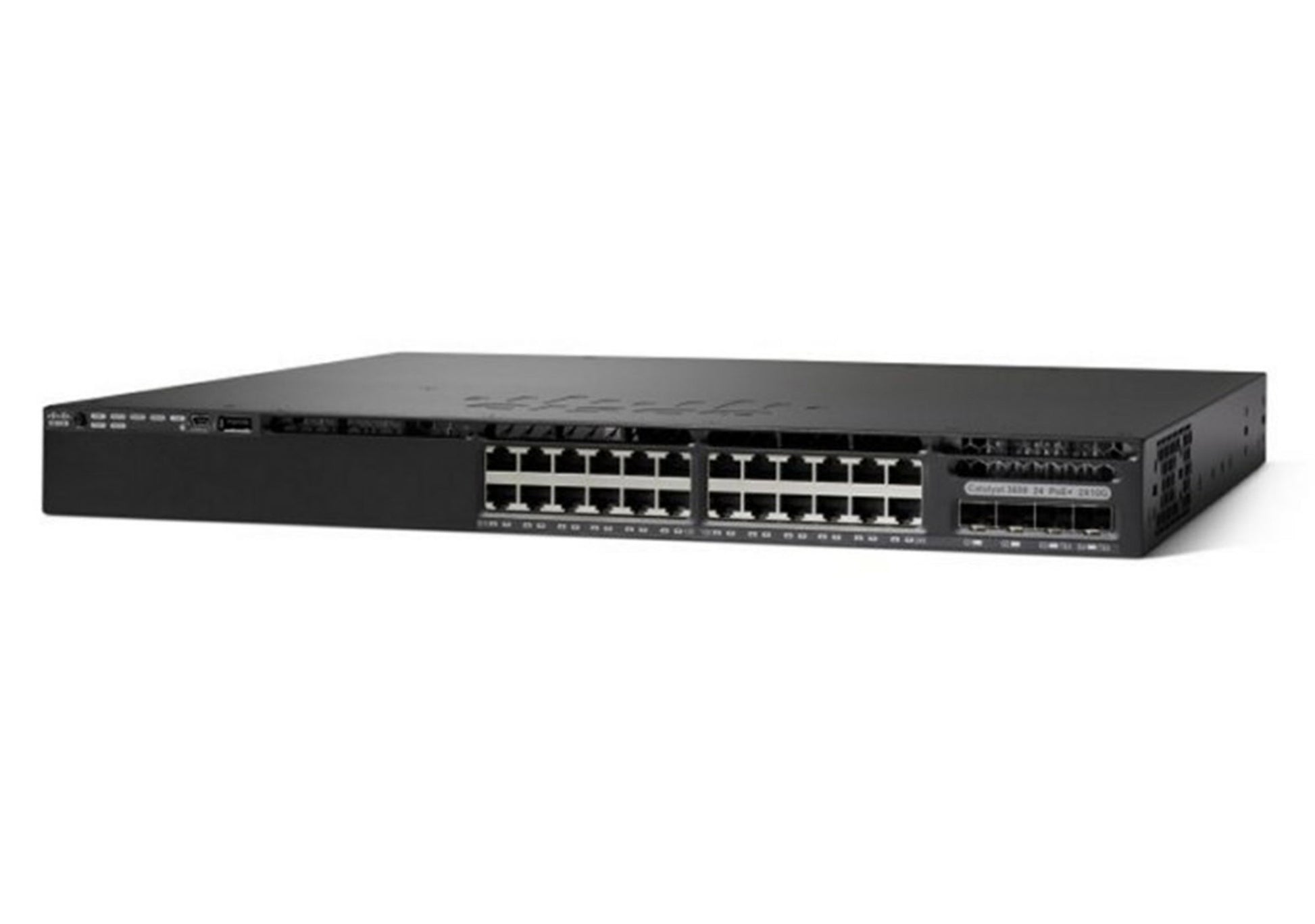

• Cisco WS-C3650-24TS-L black switch with 24 ports
1 1

Cisco

Cisco WS-C3650-24TS-L | Catalyst 3650 24-Port Gigabit Switch, 4x 1G SFP, LAN Base

WS-C3650-24TS-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3650 24-port data-only Gigabit switch is an enterprise access-layer switch built for campus and branch networks, small offices and deployments that need converged wired and wireless access with optional stacking. It suits environments that need Layer 2 access without PoE.

This model provides 24 x 10/100/1000 Ethernet ports and 4 fixed Gigabit SFP uplinks, with a switching capacity of 92 Gbps and a forwarding rate of 41.66 Mpps. It is a data-only model with no PoE budget, and ships with the LAN Base feature set and a 250 W AC power supply. A second power supply slot allows for redundancy. StackWise-160 provides 160 Gbps of optional stack bandwidth, with up to 9 switches per stack.

LAN Base provides enterprise access Layer 2 features with up to 255 VLANs, and can be upgraded to IP Base through right-to-use licences. It stacks with other Catalyst 3650 LAN Base switches using the C3650-STACK-KIT= and STACK-T2 stacking cables, and accepts the PWR-C2-250WAC, PWR-C2-640WAC, PWR-C2-1025WAC and PWR-C2-640WDC power supplies.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Converged wired and wireless access with integrated wireless controller capability (mobility agent by default)
- Optional StackWise-160 stacking with stateful switchover (SSO) resiliency, up to 9 switches per stack
- UADP ASIC with programmability for future features
- Flexible NetFlow for application visibility across wired and wireless traffic
- Hierarchical QoS (MQC) with 8 egress queues per port
- Security features including 802.1x, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, port security and ACLs
- Cisco Catalyst Smart Operations including Smart Install and Auto Smartports
- Energy Efficient Ethernet support and field-replaceable power supplies and fans

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 24 x 10/100/1000 Ethernet (data only, no PoE)
- Uplinks: 4 x Gigabit Ethernet SFP, fixed
- Feature set: LAN Base (Layer 2)
- Default power supply: PWR-C2-250WAC, 250 W AC
- Secondary power supply: supported
- Switching capacity: 92 Gbps
- Forwarding rate: 41.66 Mpps
- Stacking bandwidth: 160 Gbps (StackWise-160)
- MAC addresses: 32,000
- VLAN IDs: 4,094
- DRAM: 4 GB
- Flash: 2 GB
- Jumbo frame: 9198 bytes
- Dimensions (H x W x D): 1.73 x 17.5 x 17.625 in (4.4 x 44.5 x 44.8 cm)
- Weight: 15.15 lb (6.87 kg)
- Form factor: 1 RU
- PSU input: 100-240 VAC, 50-60 Hz
- Power consumption: 57.1 W at 100% traffic (115 VAC, EEE enabled)
- Normal operating temperature: -5 to +45 C up to 1500 m
- Relative humidity: 5% to 96% non-condensing
- Management ports: RJ-45 Ethernet management and RJ-45 console
- MTBF: 661,800 hours

FAQs

Q: Does the WS-C3650-24TS-L need a licence upgrade to be used?
A: No. It ships with the LAN Base feature set, which provides Layer 2 access features with up to 255 VLANs. It can be upgraded to IP Base through right-to-use licences if required.

Q: Does this switch support PoE?
A: No. This is a data-only model with no PoE budget. It is powered by one PWR-C2-250WAC 250 W AC power supply, with a second slot available for redundancy.

Q: Which switches can it be stacked with?
A: It stacks only with other Catalyst 3650 LAN Base switches using StackWise-160 with the C3650-STACK-KIT= and STACK-T2 stacking cables. Mixed stacks with IP Base or IP Services switches are not supported.

Q: Which power supplies are compatible?
A: The compatible power supplies are PWR-C2-250WAC, PWR-C2-640WAC, PWR-C2-1025WAC and PWR-C2-640WDC. The fan spare is FAN-T1=.

Q: How does it differ from other 24-port Catalyst 3650 models?
A: This is the 24-port data-only variant with 4 x 1G SFP uplinks, a 250 W AC power supply and LAN Base. PoE and higher feature-set variants of the 3650 are separate SKUs.
