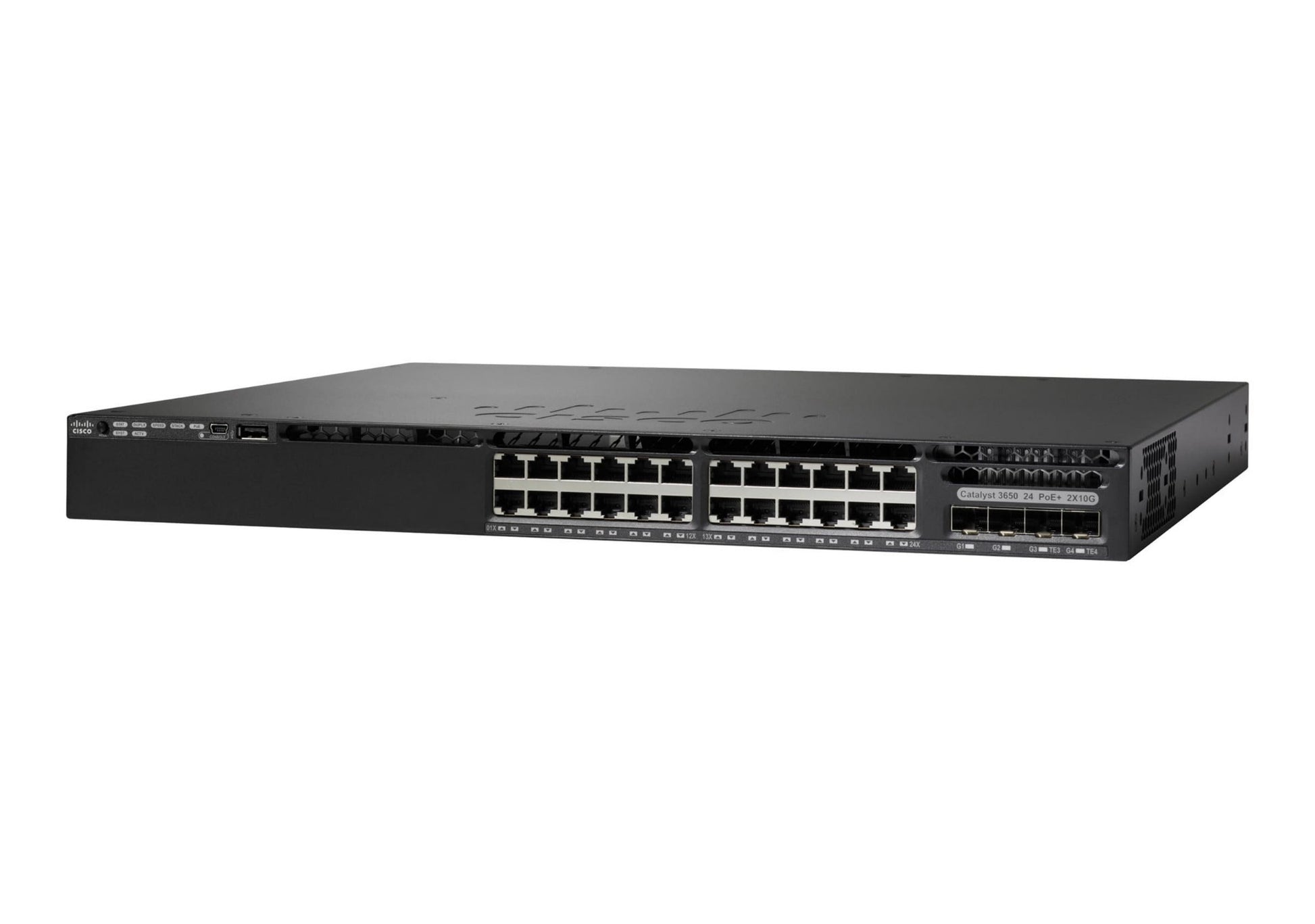

• Cisco WS-C3650-24PS-S switch with 24x 1G PoE+ ports
1 1

Cisco

Cisco WS-C3650-24PS-S | Catalyst 3650 24-Port Gigabit PoE+ Switch, 390W, 4x 1G SFP

WS-C3650-24PS-S

Stock Status: Enquire

Request Quote
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco WS-C3650-24PS-S is an enterprise-class stackable access switch delivering full wired and wireless convergence on a unified platform. With 24 Gigabit Ethernet PoE+ ports, 390W PoE budget, and 4x 1G SFP uplinks, this IP Base switch powers IP phones, wireless access points, and security cameras while providing StackWise-160 stacking for up to 9 switches. Built on the Cisco UADP ASIC, it delivers 88 Gbps switching capacity and 41.66 Mpps forwarding performance for demanding campus and branch deployments.

Features

Cisco UADP ASIC for high-performance wired and wireless convergence
- StackWise-160 stacking technology for up to 9 switches and 160 Gbps stack throughput
- Full IEEE 802.3at PoE+ support with 390W power budget
- IP Base feature set with static routing, RIP, EIGRP stub, and basic Layer 3 capabilities
- Integrated wireless controller for up to 50 APs and 1,000 clients per switch
- Dual redundant modular power supply support with field-replaceable fans
- Advanced QoS with 8 egress queues per port for voice, video, and data prioritization
- Comprehensive security: IEEE 802.1X, port security, DHCP snooping, Dynamic ARP Inspection, IP Source Guard
- Layer 2 features: VLAN support (up to 4,094 VLAN IDs), Rapid PVST+, MST, FlexLink
- Energy-efficient Ethernet (IEEE 802.3az) for reduced power consumption
- Flexible management: CLI, web GUI, SNMP v1/v2c/v3, RMON, Syslog, Telnet, SSH
- Jumbo frame support (up to 9,198 bytes)
- Hot-swappable power supplies and fans for high availability
- IPv6 ready with dual IPv4/IPv6 stack support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Port Configuration: 24x 10/100/1000 Gigabit Ethernet PoE+ ports, 4x 1G SFP uplinks
- PoE Budget: 390W total available PoE power (IEEE 802.3af/at PoE+ support, up to 30W per port)
- Performance: 88 Gbps switching capacity, 41.66 Mpps forwarding rate
- Stacking: Optional StackWise-160 technology, up to 9 switches, 160 Gbps stack bandwidth
- Memory: 4 GB RAM, 2 GB Flash
- License: IP Base feature set with Layer 2 and basic Layer 3 routing (static, RIP, EIGRP stub)
- Wireless Integration: Supports up to 50 access points and 1000 wireless clients per switch
- MAC Address Table: 32,000 entries
- Management: Console (RJ-45), Ethernet management port (RJ-45), 2x USB (Type A and Mini-B), CLI, SNMP, web GUI
- Redundancy: Dual modular power supply bays (ships with 1x 640W AC PSU), field-replaceable fans
- Form Factor: 1U rack-mountable, 44.5 x 44.5 x 4.4 cm, 17.49 kg
- Standards Compliance: IEEE 802.3af/at, IEEE 802.3az (EEE), IEEE 802.1Q, IEEE 802.1w/s, IEEE 802.1X

FAQs

Q: What is the total PoE power budget on the WS-C3650-24PS-S?
A: The switch provides 390W of available PoE power across all 24 ports, supporting both IEEE 802.3af (up to 15.4W per port) and IEEE 802.3at PoE+ (up to 30W per port). For full PoE+ on all ports simultaneously, dual power supplies may be required.

Q: Can this switch be stacked with other Catalyst 3650 models?
A: Yes, the WS-C3650-24PS-S supports optional StackWise-160 technology using the C3650-STACK-KIT module (sold separately). You can stack up to 9 Catalyst 3650 switches with 160 Gbps of total stack bandwidth for simplified management and scalability.

Q: What routing capabilities does the IP Base license include?
A: The IP Base license supports static routing, RIP, and EIGRP stub routing. It also includes up to 24,000 IPv4 routes, 1,000 switched virtual interfaces (SVIs), and multicast routing features suitable for converged access layer deployments.

Q: How many wireless access points can this switch support?
A: The WS-C3650-24PS-S can support up to 50 Cisco Aironet access points and 1,000 wireless clients per switch (or stack). It provides integrated wireless controller functionality for seamless wired-wireless policy enforcement.

Q: Is the IP Services license available as an upgrade?
A: Yes, the IP Base license can be upgraded to IP Services using the electronic RTU license (L-C3650-24-S-E). IP Services adds full Layer 3 routing protocols including OSPF, BGP, and enhanced QoS capabilities.
