Cisco

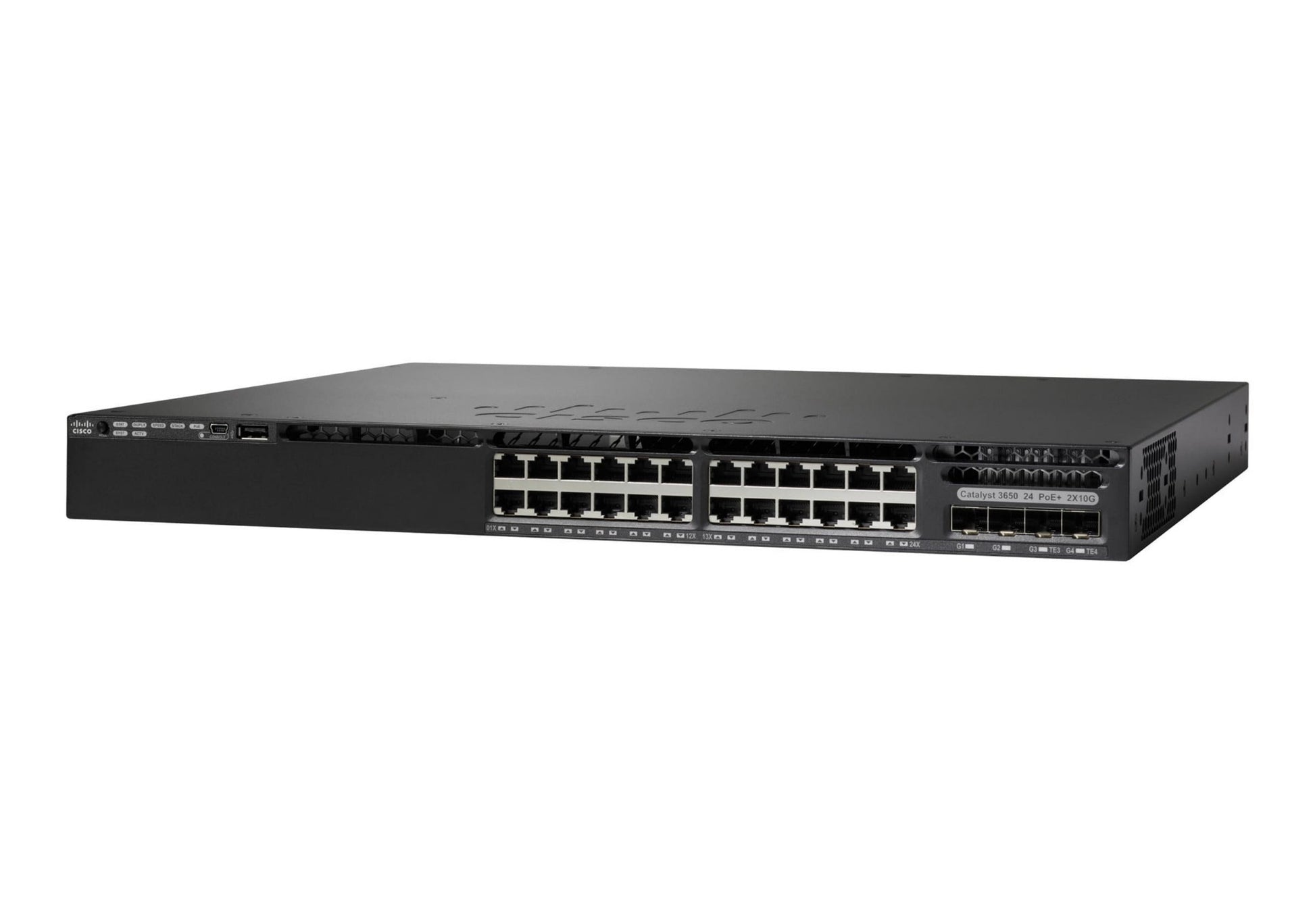

Cisco WS-C3650-24PS-L | Catalyst 3650 24-Port PoE+ Switch, 390W, LAN Base

WS-C3650-24PS-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3650 24-port PoE+ switch is a stackable enterprise access-layer switch for campus and branch networks. It suits access closets that power IP phones, wireless access points and cameras, and it brings wired and wireless access together through integrated wireless controller capability on the UADP ASIC platform.

It provides 24 10/100/1000 PoE+ ports with 390W of PoE budget from the 640 WAC power supply, plus 4x 1G SFP fixed uplinks. Switching capacity is 92 Gbps with a 41.66 Mpps forwarding rate, 4 GB DRAM and 2 GB flash. Optional StackWise-160 stacking delivers 160 Gbps of stack bandwidth. This SKU ships with the LAN Base feature set, which covers Layer 2 features, up to 255 VLANs and limited static routing, and a LAN Base switch only stacks with other 3650 LAN Base switches. Upgrade licences to IP Base and IP Services are available.

The SFP uplinks accept 1000BASE-SX/LX/ZX/BX10, 100BASE-FX, CWDM/DWDM and 1000BASE-T SFPs. The switch works with Aironet 3700, 3600, 3500, 2600, 1600, 1260, 1140 and 1040 series access points and is managed through Cisco Prime Infrastructure and ISE.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wired and wireless convergence with integrated wireless controller capability, mobility agent by default
- Optional StackWise-160 stacking with SSO-based resiliency, up to nine switches per stack
- Full IEEE 802.3at PoE+ support, up to 30W per port
- UADP ASIC with Flexible NetFlow and hierarchical wired and wireless QoS
- Security features including 802.1x, DHCP snooping, dynamic ARP inspection, IP source guard and port security
- Redundant modular power supplies and field-replaceable fans
- IEEE 802.1ba Audio Video Bridging support and Energy Efficient Ethernet on supported ports
- Single universal Cisco IOS XE image across licence levels

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ethernet ports: 24 x 10/100/1000 PoE+
- Fixed uplinks: 4 x Gigabit Ethernet SFP
- Available PoE power: 390W
- Default power supply: 640 WAC (PWR-C2-640WAC)
- Power supply input: 100-240 VAC, 50-60 Hz, 8-4 A
- Switching capacity: 92 Gbps
- Forwarding rate: 41.66 Mpps
- Stacking bandwidth: 160 Gbps (StackWise-160, optional)
- Feature set: LAN Base
- MAC addresses: 32,000
- IPv4 routes: 24,000
- Flexible NetFlow entries: 24,000 flows
- DRAM: 4 GB
- Flash: 2 GB
- VLAN IDs: 4,094 (LAN Base supports up to 255 VLANs)
- Switched virtual interfaces: 1,000
- Jumbo frame: 9198 bytes
- Wireless capacity: 25 access points and 1000 wireless clients per switch or stack
- Form factor: 1 RU
- Dimensions (H x W x D): 4.4 x 44.5 x 44.8 cm
- Weight: 7.26 kg
- MTBF: 528,280 hours
- Operating temperature: -5 to +45 C up to 1500 m
- Relative humidity: 5% to 96% non-condensing
- Acoustic noise: 45 dB typical, 48 dB maximum

FAQs

Q: Which licence does this SKU come with?
A: The -L suffix means it ships with the LAN Base feature set. Right-to-use upgrades to IP Base (C3650-24-L-S) and IP Services (C3650-24-L-E) are available.

Q: Can it deliver full 30W PoE+ on all 24 ports?
A: The default 640 WAC supply provides 390W of PoE budget. Full 30W on all 24 ports needs one PWR-C2-1025WAC or two PWR-C2-640WAC supplies, and full 15.4W PoE on all ports needs one 640 WAC.

Q: Which power supplies are compatible?
A: Compatible supplies are PWR-C2-250WAC, PWR-C2-640WAC, PWR-C2-1025WAC and PWR-C2-640WDC. There are dual power supply bays for redundancy, and a single supply must sit in bay 1. The 1100W and 715W multigigabit supplies are not for this model.

Q: What can it be stacked with?
A: Stacking uses the C3650-STACK-KIT and StackWise-160 cables (STACK-T2-50CM, 1M or 3M). A LAN Base switch can only stack with other 3650 LAN Base switches.

Q: Which SFP modules work in the uplink ports?
A: The 4 x 1G SFP uplinks support 1000BASE-SX/LX/ZX/BX10, 100BASE-FX, CWDM/DWDM and 1000BASE-T SFPs.
