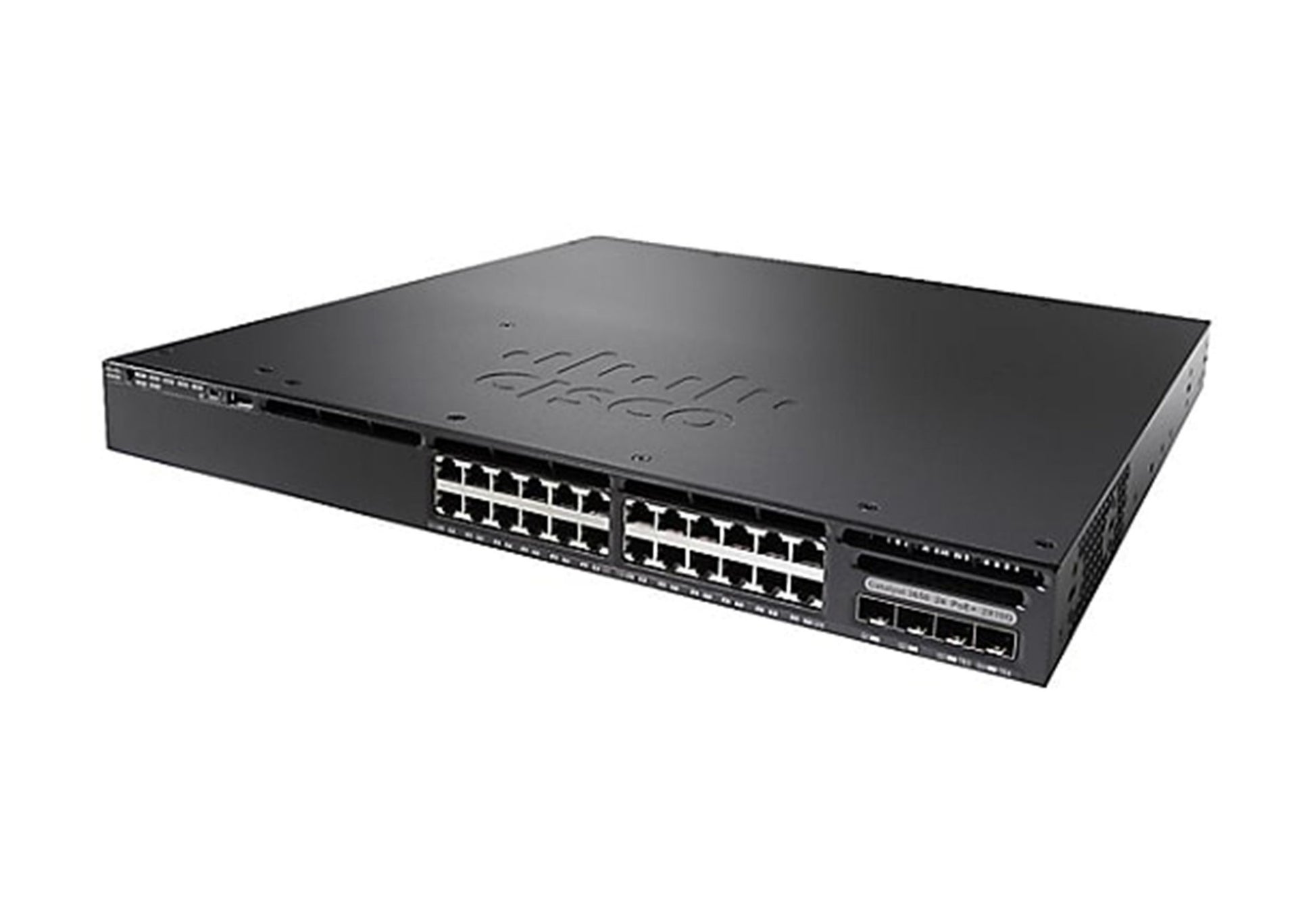

• Cisco WS-C3650-24PDM-S 24-port PoE+ switch with SFP uplinks
1 1

Cisco

Cisco WS-C3650-24PDM-S | Catalyst 3650 24-Port PoE+ Switch, 390W, IP Base

WS-C3650-24PDM-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3650 24-port PoE+ mini switch is an access-layer switch for small offices, branches, classrooms and retail sites where cabinets are shallow and quiet running matters. It combines wired and wireless access on one platform and can act as an integrated wireless controller for Aironet access points.

It provides 24 x 10/100/1000 PoE+ ports with 390W of available PoE power, so IP phones and access points can be powered directly from the switch. Uplinks are 2 x 10G SFP+ and 2 x 1G SFP, and the SFP+ ports also run at 1G. Switching capacity is 92 Gbps with a forwarding rate of 68.45 Mpps. The IP Base feature set adds routed access, up to 4,094 VLANs, Flexible NetFlow and smart operations. The 1RU chassis is only 29.6 cm deep, with a fixed 640W AC power supply and fixed fans.

It can be stacked with other 3650 switches using StackWise-160 for 160 Gbps of stacking bandwidth, provided every member runs the same feature set. An external RPS 2300 is supported for power redundancy, and the SFP and SFP+ ports accept a wide range of Cisco 1G and 10G optics.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Converged wired and wireless access with integrated wireless controller capability
- Mobility agent mode by default, mobility controller mode available with IP Base
- Full IEEE 802.3at PoE+ (30W) support
- Optional Cisco StackWise-160 stacking for resiliency and scale
- Cisco Unified Access Data Plane (UADP) ASIC
- Flexible NetFlow and application visibility across wired and wireless traffic
- Security features including 802.1X, DHCP snooping, DAI and IP Source Guard
- Cisco Smart Operations with Smart Install, Auto Smartports and EEM

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: WS-C3650-24PDM-S
- Ports: 24 x 10/100/1000 PoE+
- Uplinks: 2 x 10G SFP+ and 2 x 1G SFP
- PoE budget: 390W (30W PoE+ on up to 12 ports)
- Power supply: fixed 640W AC, 100-240 VAC, 50-60 Hz
- Switching capacity: 92 Gbps
- Forwarding rate: 68.45 Mpps
- Stacking bandwidth: 160 Gbps (Cisco StackWise-160)
- MAC addresses: 32,000
- IPv4 routes: 24,000
- Flexible NetFlow: 24,000 flows
- DRAM: 4 GB
- Flash: 2 GB
- VLAN IDs: 4,094
- Switched virtual interfaces: 1,000
- Jumbo frame: 9198 bytes
- Dimensions (H x W x D): 4.4 x 44.5 x 29.6 cm
- Weight: 5.56 kg
- Operating temperature: -5 to 45 C
- Relative humidity: 5% to 96% noncondensing
- Acoustic noise: 42 dB typical, 45 dB maximum
- MTBF: 304,860 hours
- Feature set: IP Base

FAQs

Q: Which feature set does this switch run?
A: It runs the IP Base feature set. This adds routed access, up to 4,094 VLANs, Flexible NetFlow and wireless controller functionality over LAN Base. An upgrade to IP Services is available through an RTU licence.

Q: How much PoE power does it provide?
A: It has 390W of available PoE power. That supports 30W PoE+ on up to 12 ports, or 15.4W PoE across all 24 ports.

Q: Can the power supply be replaced or made redundant?
A: The 640W AC power supply is fixed and non-modular, and no second internal supply is supported. An external Cisco RPS 2300 can be connected for power redundancy.

Q: Can I stack it with other Catalyst 3650 switches?
A: Yes, using StackWise-160 adapters and cables for 160 Gbps of stacking bandwidth. All switches in the stack must run the same feature set, so IP Base cannot be mixed with LAN Base or IP Services.

Q: Do the SFP+ uplinks also work at 1G?
A: Yes. The two SFP+ ports support 10G optics and also accept 1G SFP optics. The two additional SFP uplinks are 1G.
