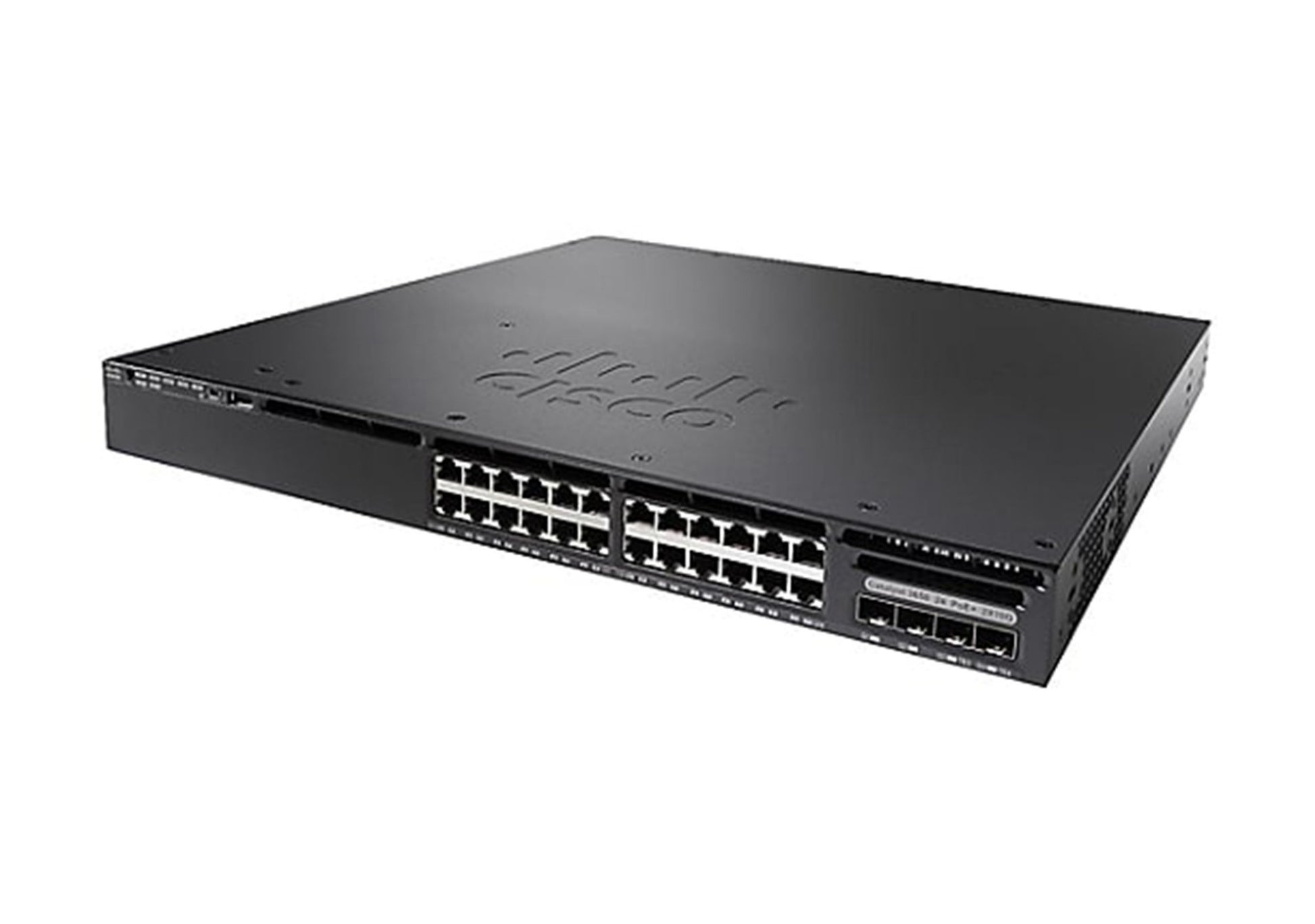

Cisco WS-C3650-24PDM-L | Catalyst 3650 24-Port PoE+ Switch, 390W, LAN Base

WS-C3650-24PDM-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3650 24-port PoE+ switch is a compact, shallow-depth 1RU access-layer switch from the Catalyst 3650 mini range. It suits small offices, branches, classrooms, labs and retail sites where a short wiring cabinet needs PoE access switching with converged wired and wireless capability.

It provides 24 x 10/100/1000 PoE+ ports with a 390 W PoE budget, plus uplinks of 2 x 10G SFP+ and 2 x 1G SFP. Switching capacity is 92 Gbps with a forwarding rate of 68.45 Mpps. This SKU uses a fixed 640 W AC power supply with fixed fans and runs the LAN Base feature set, which covers Layer 2 features with limited static routing. Optional StackWise-160 stacking gives 160 Gbps of stack bandwidth.

It stacks with other Catalyst 3650 switches of the same feature set using the C3650-STACK-KIT and STACK-T2 cables. An external RPS 2300 can be added for power redundancy, and the switch works with Cisco Prime Infrastructure and ISE.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Converged wired and wireless access with integrated wireless controller capability in mobility agent and mobility controller modes
- Full IEEE 802.3at PoE+ with up to 30 W per port
- StackWise-160 stacking with up to nine switches
- Cisco UADP ASIC with Flexible NetFlow and hierarchical wired and wireless QoS
- Security features including 802.1X, DHCP snooping, Dynamic ARP Inspection and IP Source Guard
- Smart Operations with Smart Install, Auto Smartports and EEM
- Energy Efficient Ethernet on supported ports
- Shallow chassis depth and low acoustic noise for tight wiring cabinets

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: WS-C3650-24PDM-L
- Ports: 24 x 10/100/1000 PoE+
- Uplinks: 2 x 10G SFP+ and 2 x 1G SFP
- Available PoE power: 390 W
- PoE per port: up to 30 W (IEEE 802.3at)
- Power supply: fixed 640 W AC, 100-240 VAC
- Redundant PSU: no internal secondary, supports external RPS 2300
- Fans: fixed
- Switching capacity: 92 Gbps
- Forwarding rate: 68.45 Mpps
- Stacking: StackWise-160, 160 Gbps (optional)
- Feature set: LAN Base
- MAC addresses: 32,000
- IPv4 routes: 24,000
- Flexible NetFlow entries: 24,000 flows
- VLAN IDs: 4,094
- Switched virtual interfaces: 1,000
- Jumbo frame: 9198 bytes
- DRAM: 4 GB
- Flash: 2 GB
- Dimensions (H x W x D): 4.4 x 44.5 x 29.6 cm (1RU)
- Weight: 5.56 kg
- Operating temperature: -5 to +45 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 96% non-condensing
- Acoustic noise: 42 dB typical LpA
- MTBF: 304,860 hours

FAQs

Q: Which feature set does this switch run?
A: The -L suffix means LAN Base, which covers Layer 2 features with limited static routing. It can be upgraded to IP Base or IP Services using RTU licences such as C3650-24-L-S and C3650-24-L-E.

Q: How much PoE power does it provide?
A: It has a 390 W PoE budget across 24 PoE+ ports. That supports up to 30 W per port on 12 ports at full power, or more ports at lower draw.

Q: Does it have a redundant power supply?
A: It has a single fixed 640 W AC power supply and fixed fans. Power redundancy is available through an external Cisco RPS 2300.

Q: Can it be stacked?
A: Yes. StackWise-160 stacking gives 160 Gbps of stack bandwidth using the C3650-STACK-KIT and STACK-T2 cables. It stacks with other Catalyst 3650 switches running the same feature set, as mixed feature sets are not supported.

Q: Do I need an access point licence to use the wireless features?
A: No access point licence is needed in mobility agent mode. One is required when the switch operates as a mobility controller, which also requires the IP Base feature set.
