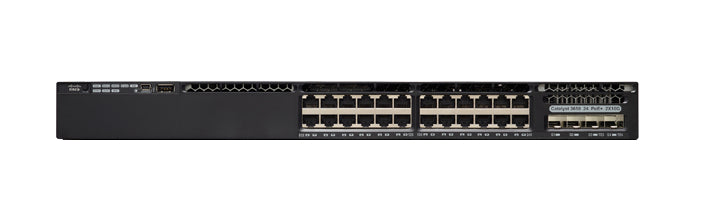

• Cisco WS-C3650-24PDM-E switch with 24x 1G PoE+ ports and uplinks
1 1

Cisco

Cisco WS-C3650-24PDM-E | Catalyst 3650 24-Port PoE+ Switch, 390W, IP Services

WS-C3650-24PDM-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3650 is a 1RU stackable access-layer switch for small offices, branches, education labs and retail sites that need PoE+ for phones and access points in a tight cabinet. This model uses the shallow-depth mini chassis at 11.6 inches and runs the IP Services feature set, with integrated wireless controller capability for converged wired and wireless access.

It provides 24 x 10/100/1000 ports with IEEE 802.3at PoE+ at up to 30W per port, sharing a 390W PoE budget from a fixed 640W AC power supply. Fixed uplinks are 2 x 10G SFP+ and 2 x 1G SFP. Switching capacity is 92 Gbps with a forwarding rate of 68.45 Mpps, and the unit carries 4 GB DRAM and 2 GB flash. Optional StackWise-160 stacking gives 160 Gbps of stack bandwidth.

The IP Services tier adds advanced Layer 3 IPv4 and IPv6 routing including EIGRP, OSPF, BGP, IS-IS and PIM. It stacks only with other Catalyst 3650 switches running the same feature set, and an external RPS 2300 can be added for power redundancy.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Converged wired and wireless access with integrated wireless controller capability
- Full IEEE 802.3at PoE+ at up to 30W per port in a 1RU chassis
- Optional StackWise-160 stacking with SSO resiliency, up to nine switches per stack
- Cisco UADP ASIC with hardware QoS and Flexible NetFlow
- Advanced security including 802.1X, DHCP snooping, Dynamic ARP Inspection, IP Source Guard and ACLs
- Cisco Catalyst Smart Operations including Smart Install, Auto Smartports and EEM
- Layer 3 routing with EIGRP, OSPF, BGP, IS-IS, PIM and IPv6 routing
- Energy-efficient Ethernet (EEE) support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ethernet ports: 24 x 10/100/1000 with PoE+ (IEEE 802.3at, up to 30W per port)
- Fixed uplinks: 2 x 10G SFP+ and 2 x 1G SFP
- PoE budget: 390W
- Power supply: fixed 640W AC, 100-240 VAC, 50-60 Hz
- Redundant power: external RPS 2300 supported
- Feature set: IP Services (-E)
- Switching capacity: 92 Gbps
- Forwarding rate: 68.45 Mpps
- Stacking: optional StackWise-160, 160 Gbps
- DRAM: 4 GB
- Flash: 2 GB
- MAC addresses: 32,000
- IPv4 routes: 24,000
- VLAN IDs: 4,094
- Jumbo frame: 9198 bytes
- Dimensions (H x W x D): 4.4 x 44.5 x 29.6 cm (1RU)
- Weight: 5.56 kg
- Operating temperature: -5 to 45 C up to 3000 m
- Acoustic noise: 42 dB typical, 45 dB maximum

FAQs

Q: Which licence tier does this switch run?
A: The -E suffix means it runs the IP Services feature set, which adds advanced Layer 3 IPv4 and IPv6 routing. Right-to-use upgrades between LAN Base, IP Base and IP Services are done via the CLI.

Q: How many devices can the 390W PoE budget power?
A: The 390W budget supports PoE+ at up to 30W per port, which covers 12 ports at the full 30W. Lower-draw devices such as phones allow more ports to be powered at once.

Q: Can it be stacked with other switches?
A: Yes, using StackWise-160 with the C3650-STACK-KIT and STACK-T2 stacking cables. It stacks only with other Catalyst 3650 switches running the same IP Services feature set.

Q: Does it have a redundant power supply?
A: It has a fixed internal 640W AC power supply and no secondary power supply slot. An external RPS 2300 is supported for power redundancy.

Q: How does it differ from other 24-port Catalyst 3650 PoE+ models?
A: This is the shallow-depth mini chassis with a fixed 640W power supply, 390W of PoE and 2 x 10G SFP+ uplinks, running IP Services.
