• Cisco WS-C3650-24PD-L 24-port PoE+ switch with 10GbE uplinks
1 1

Cisco

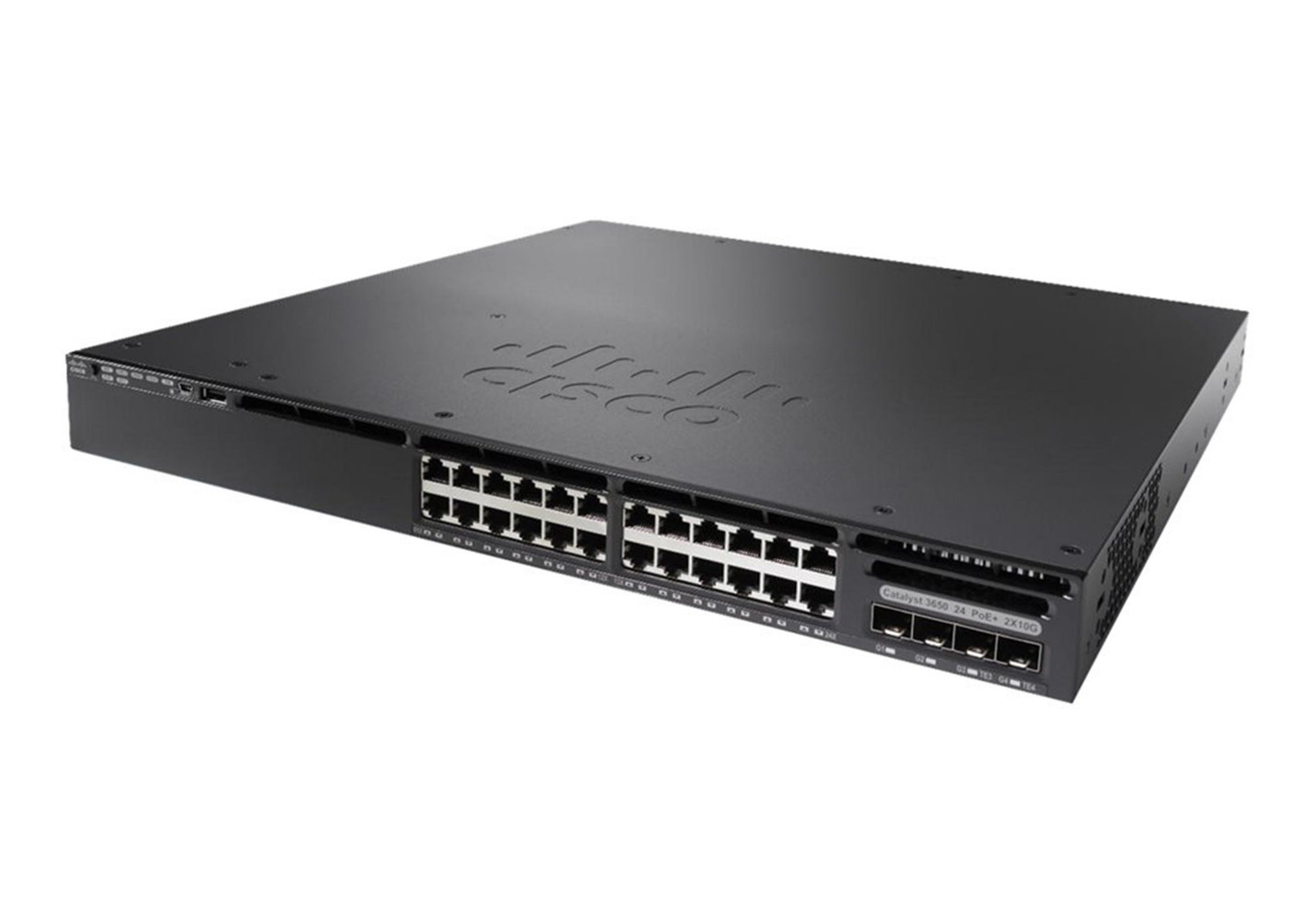

Cisco WS-C3650-24PD-L | Catalyst 3650 24-Port PoE+ Switch, 640W, LAN Base

WS-C3650-24PD-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3650 24-port PoE+ switch is a stackable enterprise access-layer switch built for campus and branch networks that need converged wired and wireless access. It suits sites powering IP phones, access points and other PoE devices from one platform, with optional stacking for resilience.

This SKU provides 24 10/100/1000 PoE+ ports, with fixed uplinks of 2x 10G SFP+ and 2x 1G SFP. It ships with a 640W AC power supply (PWR-C2-640WAC) and 390W of available PoE power, and delivers 92 Gbps of switching capacity and a 68.45 Mpps forwarding rate in a 1 RU chassis. It runs the LAN Base feature set, which provides Layer 2 features and up to 255 VLANs, and it can be upgraded to IP Base or IP Services through right-to-use licences. LAN Base switches stack only with other Catalyst 3650 LAN Base switches.

Optional StackWise-160 stacking uses the C3650-STACK-KIT with STACK-T2-50CM, STACK-T2-1M or STACK-T2-3M cables. A second modular power supply can be added for redundancy, with PWR-C2-250WAC, PWR-C2-640WAC, PWR-C2-1025WAC and PWR-C2-640WDC all compatible.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full IEEE 802.3at PoE+ with up to 30W per port
- Optional StackWise-160 stacking for up to nine switches with SSO resiliency
- Integrated wireless controller capability, with mobility agent by default
- Cisco UADP ASIC with hierarchical wired and wireless QoS
- Flexible NetFlow and Wireshark packet capture for application visibility
- 802.1X, DHCP snooping, Dynamic ARP inspection and IP Source Guard
- Catalyst Smart Operations including Smart Install and Auto Smartports
- Energy Efficient Ethernet support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: WS-C3650-24PD-L
- Ports: 24 x 10/100/1000 PoE+
- Uplinks: 2 x 10G SFP+ and 2 x 1G SFP
- Feature set: LAN Base
- Power supply: 640W AC (PWR-C2-640WAC)
- Available PoE power: 390W
- Switching capacity: 92 Gbps
- Forwarding rate: 68.45 Mpps
- Stacking bandwidth: 160 Gbps (StackWise-160, optional)
- MAC addresses: 32,000
- IPv4 routes: 24,000
- DRAM: 4 GB
- Flash: 2 GB
- VLAN IDs: 4,094
- Jumbo frame: 9198 bytes
- Power supply input: 100-240 VAC, 50-60 Hz
- Dimensions (H x W x D): 4.4 x 44.5 x 44.8 cm
- Form factor: 1 RU
- Operating temperature: -5 to +45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 96% non-condensing

FAQs

Q: Which licence does this switch ship with?
A: It ships with the LAN Base feature set. It can be upgraded to IP Base or IP Services through right-to-use licences such as C3650-24-L-S and C3650-24-L-E.

Q: Can it provide PoE+ on all 24 ports?
A: The included 640W supply provides 390W of PoE power, enough for 15.4W on all 24 ports. Full 30W PoE+ on every port needs a second power supply or the 1025W unit.

Q: Can I stack it with other Catalyst 3650 switches?
A: Yes, using the optional C3650-STACK-KIT and StackWise-160 cables. LAN Base switches can only stack with other Catalyst 3650 LAN Base switches.

Q: Which power supplies are compatible?
A: PWR-C2-250WAC, PWR-C2-640WAC, PWR-C2-1025WAC and PWR-C2-640WDC are compatible. A second modular supply can be added for redundancy.

Q: What optics fit the uplink ports?
A: The fixed uplinks accept SFP and SFP+ optics. Genuine Cisco SFP and SFP+ modules are listed in Cisco's SFP compatibility tables.
