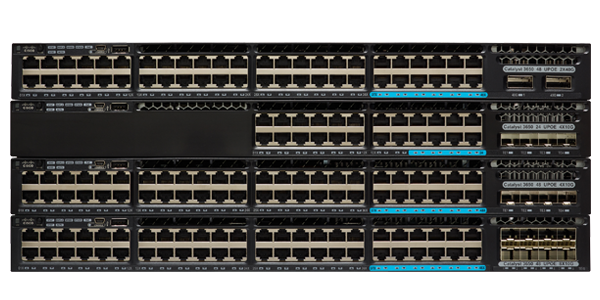

• Cisco WS-C3650-12X48UZ-L 48-port switch with ports and blue cables
1 1

Cisco

Cisco WS-C3650-12X48UZ-L | Catalyst 3650 48-Port UPOE Switch, 2x 40G QSFP+, LAN Base

WS-C3650-12X48UZ-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3650 48-port UPOE switch is a 1RU stackable access-layer switch for enterprise campus and converged wired and wireless deployments. It suits sites that need high-density UPOE and PoE+ power for 802.11ac Wave 2 access points, IP phones and other IoT or UPOE-powered devices, with 40G uplinks back to the distribution layer.

The 48 Ethernet ports are made up of 36 x 10/100/1000 ports and 12 multigigabit ports running at 100M/1/2.5/5/10G, so existing Cat 5e and Cat 6 cabling can carry faster speeds to access points. Two fixed 40 Gigabit QSFP+ uplinks provide the upstream connection. The 1100 W AC power supply gives 660 W of available PoE power. Switching capacity is 472 Gbps with a forwarding rate of 351.19 Mpps, and optional StackWise-160 stacking provides 160 Gbps of stack bandwidth.

This SKU ships with the LAN Base feature set, with RTU licence upgrades available to IP Base or IP Services. It works with the optional StackWise-160 stacking kit and cables, and with Aironet access points including the 3700, 3600, 2600 and 1600 series.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated wireless controller capability, with mobility agent mode by default
- Optional StackWise-160 stacking for up to nine switches with stateful switchover
- UADP ASIC with hierarchical wired and wireless QoS
- Flexible NetFlow across wired and wireless traffic
- IEEE 802.3bz multigigabit support over existing Cat 5e and Cat 6 cabling
- Security features including 802.1X, DHCP snooping, DAI and IP Source Guard
- Dual redundant modular power supplies and modular fans
- Energy Efficient Ethernet support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 total, 36 x 10/100/1000 and 12 x 100M/1/2.5/5/10G multigigabit
- PoE: Cisco UPOE at 60 W per port, plus PoE+ and PoE
- Uplinks: 2 x 40 Gigabit Ethernet QSFP+, fixed
- Power supply: 1100 WAC (PWR-C1-1100WAC)
- Available PoE power: 660 W
- Switching capacity: 472 Gbps
- Forwarding rate: 351.19 Mpps
- Stacking: StackWise-160, 160 Gbps stack bandwidth
- Feature set: LAN Base
- MAC addresses: 32,000
- IPv4 routes: 24,000
- VLAN IDs: 4,094
- DRAM: 4 GB
- Flash: 4 GB
- Jumbo frame: 9198 bytes
- Dimensions (H x W x D): 4.4 x 44.5 x 48.6 cm, 1 RU
- Weight: 8.08 kg
- Operating temperature: -5 to +45 C up to 1500 m
- Relative humidity: 5% to 96%, noncondensing
- MTBF: 203,190 hours

FAQs

Q: Which licence does this switch ship with?
A: It ships with the LAN Base feature set, which provides Layer 2 features and up to 255 VLANs. RTU licence upgrades to IP Base or IP Services are available.

Q: How much PoE power does it provide?
A: With the 1100 W AC power supply it provides 660 W of available PoE power. Delivering 60 W UPOE on a maximum of 29 ports requires two 1100 W power supplies.

Q: Can it be stacked with other Catalyst 3650 switches?
A: Yes, using the optional StackWise-160 stacking kit (C3650-STACK-KIT=) and stack cables. LAN Base switches stack only with other Catalyst 3650 LAN Base switches.

Q: Which access points does it work with?
A: It works with Aironet access points including the 3700, 3600, 3500, 2600, 1600, 1260, 1140 and 1040 series.

Q: What are the uplink options?
A: It has two fixed 40 Gigabit Ethernet QSFP+ uplinks, which suit connections to the distribution layer.
