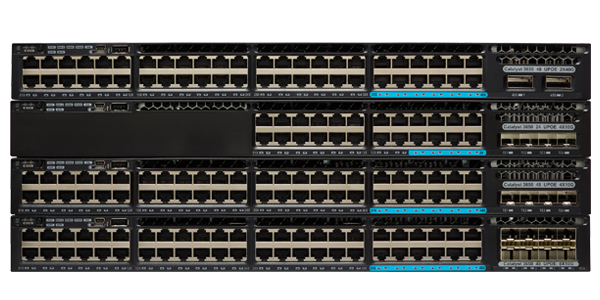

• Cisco WS-C3650-12X48UZ-E 48-port switch with blue cables
1 1

Cisco

Cisco WS-C3650-12X48UZ-E | Catalyst 3650 48-Port mGig Switch, 660W UPOE, 2x 40G QSFP+

WS-C3650-12X48UZ-E

Stock Status: Enquire

Request Quote
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst 3650-12X48UZ-E is an enterprise-class stackable switch designed for converged wired-wireless networks. It features 36 Gigabit Ethernet ports, 12 multigigabit ports supporting 100Mbps/1G/2.5G/5G/10G, and two 40G QSFP+ uplinks, all with UPOE capability. With IP Services licensing, integrated wireless controller support, StackWise-160 technology, and 660W PoE budget, this switch delivers advanced Layer 3 routing, application visibility, and high-density connectivity for demanding enterprise environments.

Features

Cisco StackWise-160 Technology: Stack up to 9 switches with 160 Gbps stacking throughput for high availability and scalability
- Integrated Wireless Controller: Built-in controller supports up to 25 access points and 1,000 wireless clients per switch/stack
- Cisco Universal Power over Ethernet (UPOE): Delivers up to 60W per port for high-power devices across all 48 ports
- Multigigabit Ethernet (IEEE 802.3bz): 12 ports support 100Mbps/1G/2.5G/5G/10G speeds over existing Cat5e/Cat6 cabling
- Advanced Layer 3 Routing: Full IP Services feature set with OSPF, EIGRP, BGP, PBR, and multicast routing
- Cisco Unified Access Data Plane (UADP) ASIC: Purpose-built ASIC enables unified wired-wireless policy enforcement and application visibility
- Flexible NetFlow: Advanced traffic analysis and monitoring with 48,000 flow entries
- Redundant and Modular Design: Field-replaceable power supplies and fans with dual power supply slots for redundancy
- IPv4 and IPv6 Dual-Stack Support: Native support for both IPv4 and IPv6 with 24,000 IPv4 routes
- Quality of Service (QoS): Advanced QoS with 8 egress queues, traffic shaping, and marking capabilities
- Comprehensive Security: IEEE 802.1X authentication, port security, DHCP snooping, Dynamic ARP Inspection, IP Source Guard
- Energy Efficient Ethernet (EEE): IEEE 802.3az support for reduced power consumption during low traffic periods
- Audio Video Bridging (AVB): Support for time-sensitive networking and AV streaming applications
- Wireshark Support: Embedded packet capture and analysis for troubleshooting and monitoring
- Single Universal Cisco IOS XE Image: One software image across all license levels simplifies upgrades and management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Total Ports: 48 (36x 10/100/1000 Ethernet + 12x multigigabit 100Mbps/1G/2.5G/5G/10G Ethernet)
- Uplinks: 2x 40 Gigabit QSFP+ ports
- PoE Standard: Cisco Universal Power over Ethernet (UPOE) on all 48 ports
- PoE Power Budget: 660W
- Switching Capacity: 472 Gbps
- Forwarding Rate: 351.19 Mpps
- Stacking Bandwidth: 160 Gbps (StackWise-160 technology)
- MAC Address Table: 32,000 entries
- DRAM: 4 GB (upgradeable to 8 GB)
- Flash Memory: 4 GB
- IPv4 Routing Table: 24,000 routes
- VLANs: 4,094 VLAN IDs supported
- Switched Virtual Interfaces (SVIs): 1,000
- Flexible NetFlow Entries: 48,000
- Jumbo Frame Support: 9,198 bytes
- Power Supply: 1x 1100W AC power supply (PWR-C1-1100WAC) included, 2x PSU slots
- Form Factor: 1U rack-mountable
- Software License: IP Services feature set pre-installed
- Integrated Wireless Controller: Supports up to 25 access points and 1,000 wireless clients
- Management: CLI, SNMP, Web GUI, Cisco DNA
- Stacking: Optional stacking up to 9 switches
- Standards Compliance: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3at, 802.3bz, 802.1D, 802.1Q, 802.1w, 802.1s, 802.1x

FAQs

Q: What is multigigabit Ethernet and which ports support it on this switch?
A: Multigigabit Ethernet (mGig) allows ports to auto-negotiate speeds of 100Mbps, 1G, 2.5G, 5G, and 10G over standard Cat5e/Cat6 cabling. The WS-C3650-12X48UZ-E has 12 multigigabit ports that support these speeds, plus 36 standard Gigabit Ethernet ports, providing flexibility for high-bandwidth devices like Wi-Fi 6 access points.

Q: Does this switch support Cisco UPOE and what is the total power budget?
A: Yes, all 48 ports support Cisco Universal Power over Ethernet (UPOE), which can deliver up to 60W per port for high-power devices. The switch has a total PoE budget of 660W with the included 1100W power supply, enabling it to power devices like wireless access points, IP phones, cameras, and other network equipment simultaneously.

Q: What is included with the IP Services license?
A: The IP Services license provides full Layer 3 routing capabilities including advanced protocols such as OSPF, EIGRP, BGP, policy-based routing, multicast routing (PIM), and IPv6 routing. It also includes advanced security features, quality of service (QoS), and full access to Cisco IOS features for enterprise-grade network deployments.

Q: Can this switch be stacked and what is the stacking capacity?
A: Yes, the WS-C3650-12X48UZ-E supports optional stacking using Cisco StackWise-160 technology, which provides 160 Gbps of stacking bandwidth. You can stack up to 9 switches in a single logical unit, managed as one system with a single IP address, simplifying management and providing redundancy and scalability.

Q: What are the upgrade options and is this switch end-of-life?
A: The Catalyst 3650 Series has been announced end-of-sale by Cisco, with the recommended replacement being the Catalyst 9300L Series. The suggested migration path for this model is the C9300L-48UXG-2Q-A, which offers similar multigigabit and 40G uplink capabilities with Network Advantage licensing. However, refurbished units and support contracts remain available.
