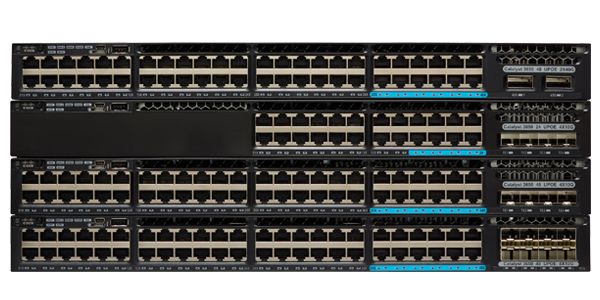

• Cisco WS-C3650-12X48UR-L switch with ports and blue cables
1 1

Cisco

Cisco WS-C3650-12X48UR-L | Catalyst 3650 48-Port UPOE Switch, 8x 10G SFP+, LAN Base

WS-C3650-12X48UR-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3650 48-port multigigabit UPOE switch is a stackable enterprise access-layer switch for campus and branch networks that need converged wired and wireless access, 60W UPOE endpoints and high-bandwidth 10G uplinks. It carries the LAN Base feature set and an integrated wireless controller capability.

The front panel provides 48 ports: 36 x 10/100/1000 and 12 x 100M/1/2.5/5/10G multigigabit ports, all supporting Cisco UPOE and PoE+. It offers 660W of available PoE power, 8 x 10G SFP+ fixed uplinks (which can also run as 8 x 1G SFP) and a 1100WAC default power supply with support for a second supply for redundancy. Switching capacity is 472 Gbps with a 351.19 Mpps forwarding rate, and optional StackWise-160 stacking delivers 160 Gbps of stack bandwidth.

This SKU ships with LAN Base and can be upgraded to IP Base or IP Services through a right-to-use licence. It stacks with other Catalyst 3650 switches running the same feature set, and works with Aironet access points and Cisco WLC controllers, ISE and Prime infrastructure.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Converged wired and wireless access with integrated wireless controller capability (mobility agent and mobility controller)
- Cisco Multigigabit technology (IEEE 802.3bz) over Cat 5e and above cabling
- Cisco UPOE up to 60W per port plus IEEE 802.3at PoE+
- StackWise-160 stacking with up to 9 members and SSO resiliency
- Cisco Unified Access Data Plane (UADP) ASIC
- Flexible NetFlow, Wireshark packet capture and hierarchical wired/wireless QoS
- Security with 802.1X, DHCP snooping, Dynamic ARP Inspection, IP Source Guard and port security
- Energy Efficient Ethernet (EEE) and field-replaceable power supplies and fans

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 total (36 x 10/100/1000 plus 12 x 100M/1/2.5/5/10G multigigabit)
- PoE: Cisco UPOE (60W per port) and PoE+ (30W per port)
- Available PoE power: 660W
- Fixed uplinks: 8 x 10G SFP+ or 8 x 1G SFP
- Default power supply: 1100WAC (PWR-C1-1100WAC), dual redundant supply support
- Feature set: LAN Base
- Switching capacity: 472 Gbps
- Forwarding rate: 351.19 Mpps
- Stacking bandwidth: 160 Gbps (StackWise-160)
- MAC addresses: 32,000
- IPv4 routes: 24,000
- VLAN IDs: 4,094
- Total SVIs: 1,000
- Jumbo frame: 9198 bytes
- DRAM: 4 GB
- Flash: 4 GB
- Form factor: 1 RU
- Dimensions (H x W x D): 4.4 x 44.5 x 48.6 cm
- Weight: 8.08 kg
- Power supply input: 100-240 VAC, 50-60 Hz
- Relative humidity: 5% to 96% non-condensing
- Acoustic noise: 45 dB typical, 48 dB maximum
- MTBF: 201,680 hours

FAQs

Q: Which licence does this switch ship with?
A: It ships with the LAN Base feature set. It can be upgraded to IP Base or IP Services through a right-to-use licence. The wireless mobility controller role requires IP Base plus access point licences.

Q: How much PoE power does it provide?
A: It has 660W of available PoE power with the default 1100WAC supply. Delivering Cisco UPOE at 60W on the maximum of 29 ports requires two 1100W power supplies.

Q: Can it be stacked with other switches?
A: Yes, it supports StackWise-160 stacking at 160 Gbps using the C3650-STACK-KIT. It stacks only with other Catalyst 3650 switches running the same feature set, so LAN Base units stack with LAN Base units.

Q: What uplinks does it offer?
A: It has 8 fixed uplink ports that run as 10G SFP+ or as 1G SFP, depending on the optics fitted.

Q: Which access points does it work with?
A: It is compatible with Aironet 3700, 3600, 3500, 2600, 1600, 1260, 1140 and 1040 access points. The multigigabit ports suit 802.11ac Wave 2 access point uplinks, and it interoperates with Cisco WLC 5760, 5508 and WiSM2 controllers.
