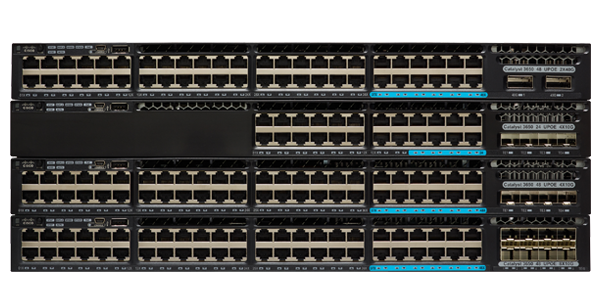

• Cisco WS-C3650-12X48UQ-S switch with ports and blue cables
1 1

Cisco

Cisco WS-C3650-12X48UQ-S | Catalyst 3650 48-Port mGig UPOE Switch, IP Base, 1100W

WS-C3650-12X48UQ-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3650 is a stackable 1 RU access-layer switch for enterprise campus and branch networks that need converged wired and wireless access. This model pairs 36 Gigabit ports with 12 multigigabit ports, so 802.11ac Wave 2 access points can run at full speed over existing Cat 5e or Cat 6 cabling.

The 48 ports are split into 36 x 10/100/1000 and 12 x 100M/1/2.5/5/10G, with Cisco UPOE at 60W per port and PoE+ at 30W per port. Four fixed 10G SFP+ uplinks (or 4 x 1G SFP) handle aggregation. Switching capacity is 392 Gbps with a forwarding rate of 291.66 Mpps. A single 1100 WAC power supply provides 660 W of PoE budget, and this SKU runs the IP Base feature set, which adds routed access, Flexible NetFlow and wireless mobility agent and controller support.

It stacks with other Catalyst 3650 switches running the same feature set using StackWise-160, and the SFP and SFP+ uplinks accept a wide range of Cisco optics.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Converged wired and wireless access on a single IOS XE platform, with integrated wireless controller capability
- Cisco UPOE delivers 60W per port for high-power endpoints
- Multigigabit ports (IEEE 802.3bz) support 100M/1/2.5/5/10G on Cat 5e, Cat 6 and Cat 6a cabling
- StackWise-160 stacking of up to nine switches with SSO-based resiliency
- Cisco UADP ASIC with Flexible NetFlow and hierarchical wired and wireless QoS
- Security features including 802.1X, DHCP snooping, Dynamic ARP Inspection, IP Source Guard and ACLs
- Smart Operations tools: Smart Install, Auto Smartports and Smart Configuration
- Energy Efficient Ethernet (EEE) on supported ports

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: WS-C3650-12X48UQ-S
- Total ports: 48 (36 x 10/100/1000 + 12 x 100M/1/2.5/5/10G multigigabit)
- Fixed uplinks: 4 x 10G SFP+ or 4 x 1G SFP
- PoE type: Cisco UPOE (60W per port) and PoE+ (30W per port)
- Default power supply: 1100 WAC (PWR-C1-1100WAC)
- Available PoE power: 660 W with a single supply
- Switching capacity: 392 Gbps
- Forwarding rate: 291.66 Mpps
- Stacking bandwidth: 160 Gbps (StackWise-160, optional)
- Feature set: IP Base
- MAC addresses: 32,000
- IPv4 routes: 24,000
- Flexible NetFlow entries: 48,000 flows
- DRAM: 4 GB
- Flash: 4 GB
- VLAN IDs: 4,094
- Jumbo frame: 9198 bytes
- Dimensions (H x W x D): 1.73 x 17.5 x 19.125 in (4.4 x 44.5 x 48.6 cm)
- Weight: 17.75 lb (8.05 kg)
- Power consumption (no PoE load): 170.4 W idle, 186.6 W at 100% traffic
- Operating temperature (AC supply): -5 to +45 C up to 1500 m
- Relative humidity: 5% to 96% noncondensing
- Acoustic noise: 45 dB typical, 48 dB maximum

FAQs

Q: Which licence tier does this switch run?
A: The -S suffix means it runs the IP Base feature set. An upgrade to IP Services is available through an RTU licence such as L-C3650-48-S-E. An access point licence is only needed when operating in mobility controller mode.

Q: Is one power supply enough to run UPOE?
A: A single 1100 WAC supply provides 660 W of PoE budget. Delivering UPOE at 60W on up to 29 ports requires two 1100W power supplies.

Q: Which power supplies does it work with?
A: It supports a second redundant supply using PWR-C1-1100WAC or PWR-C1-715WAC, and the PWR-C1-440WDC DC supply. The multigigabit models do not support the PWR-C1-350WAC.

Q: What can it be stacked with?
A: It stacks only with other Catalyst 3650 switches running the same IP Base feature set, using the C3650-STACK-KIT and StackWise-160 cables (STACK-T2-50CM, 1M or 3M).

Q: Which access points does it support?
A: It is compatible with Cisco Aironet 3700, 3600, 3500, 2600, 1600, 1260, 1140 and 1040 series access points.
