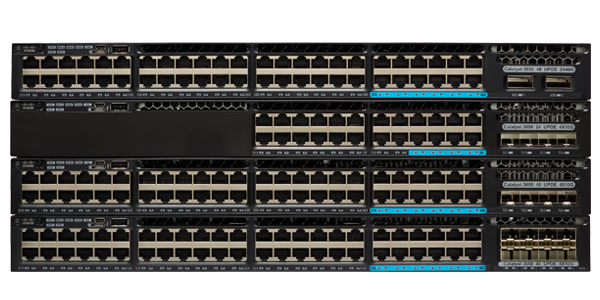

• Cisco WS-C3650-12X48UQ-L 48-port switch with blue cables
1 1

Cisco

Cisco WS-C3650-12X48UQ-L | Catalyst 3650 48-Port UPoE Switch, 4x 10G, LAN Base

WS-C3650-12X48UQ-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3650 is a stackable 1RU access-layer switch for campus and branch wiring closets that need converged wired and wireless access. It suits 802.11ac Wave 2 deployments needing multigigabit and UPOE or PoE+ power, as well as high-power endpoint rollouts that call for resilient stackable access.

This model provides 48 ports: 36 x 10/100/1000 plus 12 multigigabit ports running 100Mbps/1/2.5/5/10 Gbps over Cat 5e/6/6a. Four fixed 10G SFP+ uplinks (or 4 x 1G SFP) handle aggregation. Switching capacity is 392 Gbps with a forwarding rate of 291.66 Mpps, and StackWise-160 stacking delivers 160 Gbps of stack bandwidth. It uses the 1100WAC power supply with 660W of available PoE power, and UPOE at 60W per port is supported on up to 29 ports with two 1100W supplies. It ships with the LAN Base feature set.

Stacking uses C3650-STACK-KIT and STACK-T2 cables, and only with other 3650 LAN Base switches. The fixed SFP+ uplinks accept 10G and 1G SFP optics, and the switch works with Cisco Aironet access points and WLC 5760, WLC 5508, WiSM2, ISE and Prime Infrastructure.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Integrated wireless controller capability, mobility agent by default
- Cisco multigigabit technology, 100M/1/2.5/5/10G over Cat 5e/6/6a (IEEE 802.3bz)
- Optional StackWise-160 stacking with SSO resiliency, up to 9 switches per stack
- Cisco Unified Access Data Plane (UADP) ASIC
- Flexible NetFlow, Wireshark and hierarchical wired-plus-wireless QoS
- Security features including 802.1x, DHCP snooping, DAI, IP Source Guard and port security
- Cisco Catalyst Smart Operations and Embedded Event Manager
- Modular field-replaceable fans and a second power supply bay for redundancy

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 total, 36 x 10/100/1000 plus 12 x 100Mbps/1/2.5/5/10 Gbps multigigabit
- PoE: Cisco UPOE (60W per port) and PoE+ (30W per port)
- Uplinks: 4 x 10G SFP+ fixed, or 4 x 1G SFP
- Default power supply: 1100WAC (PWR-C1-1100WAC)
- Available PoE power: 660W
- UPOE capacity: 60W per port on up to 29 ports with two 1100W power supplies
- Switching capacity: 392 Gbps
- Forwarding rate: 291.66 Mpps
- Stacking bandwidth: 160 Gbps (Cisco StackWise-160)
- Feature set: LAN Base
- MAC addresses: 32,000
- IPv4 routes: 24,000
- DRAM: 4 GB
- Flash: 4 GB
- VLAN IDs: 4,094
- Jumbo frame: 9198 bytes
- Wireless capacity: up to 40 Gbps per switch
- Dimensions (H x W x D): 4.4 x 44.5 x 48.6 cm (1RU)
- Weight: 8.05 kg
- Operating temperature: -5 to +45 C up to 1500 m
- Relative humidity: 5% to 96% noncondensing
- Safety and EMI: UL 60950-1, FCC Part 15 Class A, EN55022 Class A, RoHS

FAQs

Q: Which licence does this switch ship with?
A: The -L suffix means it ships with the LAN Base feature set. It can be upgraded to IP Base or IP Services using right-to-use licences such as L-C3650-48-L-S or L-C3650-48-L-E.

Q: How much PoE power does it provide?
A: The 1100WAC power supply provides 660W of available PoE power. UPOE at 60W per port is supported on up to 29 ports when two 1100W power supplies are fitted.

Q: Can it be stacked with other switches?
A: Yes, using C3650-STACK-KIT and STACK-T2 stacking cables for 160 Gbps of stack bandwidth. A stack can only contain other 3650 LAN Base switches, not IP Base or IP Services units.

Q: Which power supplies work in the second bay?
A: The second bay accepts PWR-C1-715WAC or PWR-C1-1100WAC for redundancy. Multigigabit models use different power supplies from non-multigigabit models, and PWR-C1-350WAC is not supported.

Q: What optics fit the uplink ports?
A: The fixed SFP+ uplinks take 10G SFP+ and 1G SFP optics. Refer to the Cisco SFP compatibility tables for the supported part numbers.
