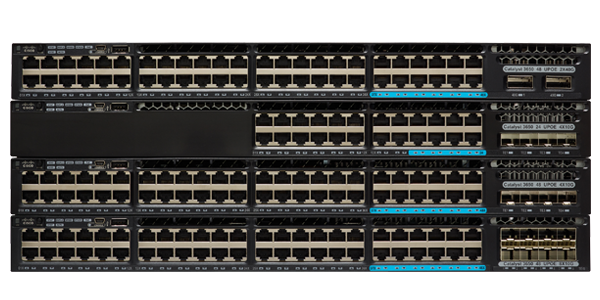

• Cisco WS-C3650-12X48FD-L switch with 48 ports and blue cables
1 1

Cisco

Cisco WS-C3650-12X48FD-L | Catalyst 3650 48-Port PoE+ Switch, 12x mGig, LAN Base

WS-C3650-12X48FD-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3650 48-port PoE+ switch is a 1RU enterprise access switch for campus and branch networks where wired and wireless access are converged. It suits high-density PoE+ deployments for IP phones and access points, and the multigigabit ports let 802.11ac Wave 2 access points run at full speed over existing Cat 5e or Cat 6 cabling.

There are 48 PoE+ ports: 36 x 10/100/1000 and 12 x 100M/1/2.5/5/10G multigigabit, supporting IEEE 802.3at at up to 30 W per port. Uplinks are 2 x 10G SFP+ and 2 x 1G SFP. The 1100 WAC power supply (PWR-C1-1100WAC) provides a 660 W PoE budget, with dual redundant modular supplies supported. Forwarding rate is 261.90 Mpps, with 4 GB of DRAM and 4 GB of flash. This SKU ships with the LAN Base feature set, which can be upgraded through right-to-use licences to IP Base or IP Services.

It stacks with other Catalyst 3650 LAN Base switches over StackWise-160 at 160 Gbps, with up to nine switches per stack. It works with Cisco SFP and SFP+ optics and supports a range of Aironet access points, with an integrated wireless controller capability that runs in mobility agent mode by default.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Converged wired and wireless access with integrated wireless controller capability
- IEEE 802.3at PoE+ (30 W) on all ports, with IEEE 802.3bz 2.5G/5GBASE-T on the multigigabit ports
- StackWise-160 stacking for up to nine switches in a stack
- Dual redundant, field-replaceable power supplies and three modular fans
- UADP ASIC with hierarchical wired and wireless QoS
- Flexible NetFlow, Wireshark packet capture and Embedded Event Manager for visibility
- 802.1X, DHCP snooping, dynamic ARP inspection, IP Source Guard, port security and private VLANs
- Smart Install, Auto Smartports and Cisco Prime Infrastructure management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: WS-C3650-12X48FD-L (LAN Base)
- Ports: 48 PoE+ (36 x 10/100/1000 + 12 x 100M/1/2.5/5/10G multigigabit)
- Fixed uplinks: 2 x 10G SFP+ and 2 x 1G SFP
- Power supply: 1100 WAC (PWR-C1-1100WAC), dual redundant modular supply support
- Available PoE power: 660 W with a single supply
- Forwarding rate: 261.90 Mpps
- Stacking: Cisco StackWise-160, 160 Gbps
- MAC addresses: 32,000
- IPv4 routes: 24,000
- Flexible NetFlow entries: 48,000 flows
- DRAM: 4 GB
- Flash: 4 GB
- VLAN IDs: 4,094 hardware, LAN Base supports up to 255 VLANs
- Switched virtual interfaces: 1,000
- Jumbo frame: 9198 bytes
- Wireless capacity: up to 40 Gbps, 25 APs and 1000 clients per switch or stack, 64 WLANs
- Dimensions (H x W x D): 4.4 x 44.5 x 48.6 cm (1RU)
- Weight: 8.05 kg
- Operating temperature: -5 to +45 C up to 1500 m
- Humidity: 5% to 96% non-condensing
- Acoustic noise: 45 dB typical, 48 dB maximum
- Power consumption: 172.7 W at 100% traffic, no PoE load
- MTBF: 227,490 hours

FAQs

Q: What licence does this switch ship with?
A: It ships with the LAN Base feature set. It can be upgraded through right-to-use licences to IP Base (L-C3650-48-L-S) or IP Services (L-C3650-48-L-E). A mixed stack of LAN Base with IP Base or IP Services switches is not supported.

Q: How much PoE power does it provide?
A: With the 1100 WAC power supply fitted, it provides 660 W of PoE power across the 48 PoE+ ports. A second supply can be added for redundancy.

Q: Can it be stacked with other switches?
A: Yes, using StackWise-160 at 160 Gbps, with up to nine switches per stack. It stacks only with other Catalyst 3650 LAN Base switches, using the C3650-STACK-KIT= and STACK-T2 cables.

Q: What power supplies are supported?
A: The default supply is the PWR-C1-1100WAC, and the PWR-C1-715WAC is also supported on multigigabit models. Multigigabit models use different power supplies than non-multigigabit models.

Q: Which wireless access points and controllers does it work with?
A: It supports Aironet AP series 3700, 3600, 3500, 2600, 1600, 1260, 1140 and 1040. It works with the WLC 5760, WLC 5508 and WiSM2 as mobility controller.

Q: What is the difference between the multigigabit and standard ports?
A: 12 ports run at 100M/1/2.5/5/10G for 802.11ac Wave 2 access points over Cat 5e or Cat 6, and the other 36 are standard 10/100/1000 ports. All 48 ports support PoE+.
