• Cisco WS-C3560X-48T-L 48-port Gigabit Ethernet Switch
1 1

Cisco

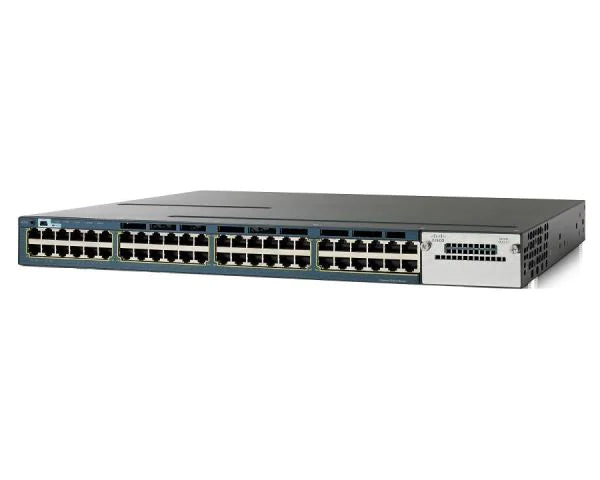

Cisco WS-C3560X-48T-L | Catalyst 3560-X 48-Port Gigabit Switch, LAN Base, 350W

WS-C3560X-48T-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3560-X 48-port Gigabit switch is a standalone 1RU access-layer switch for enterprise campus and branch networks that need 48 data-only Gigabit ports without PoE. It provides Layer 2 services, 802.1X and Cisco TrustSec security, and optional 1G or 10G uplinks towards the distribution layer.

This SKU has 48 10/100/1000 Ethernet ports and ships with the LAN Base feature set and a default 350W AC power supply (C3KX-PWR-350WAC). It is a non-PoE model, so no PoE budget is available. The switching fabric is 160 Gbps with a forwarding rate of 101.2 mpps when fitted with two 10GbE uplinks. LAN Base supports up to 255 VLANs and 16 static routes, and can be upgraded to IP Base or IP Services with Cisco IOS software activation licences.

Uplinks are provided by optional hot-swappable network modules: C3KX-NM-1G (4x GbE SFP), C3KX-NM-10G (2x 10GbE SFP+) and C3KX-NM-10GT (2x 10GBASE-T). A second power supply bay accepts a redundant supply, and the XPS 2200 can be used as an external redundant power system. The 3560-X is a standalone switch and does not support stacking.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Four optional hot-swappable uplink network modules with GE or 10GE ports
- Dual redundant modular power supply and fan design
- MACsec (IEEE 802.1AE) hardware-based encryption on downlink ports
- Cisco EnergyWise for monitoring and reducing power consumption
- Cisco Catalyst Smart Operations including Smart Install and Auto Smartports
- Layer 2 threat defence: Port Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
- 802.1X, flexible authentication and Cisco TrustSec identity features
- Advanced QoS with 8 egress queues per port, SRR scheduling and Weighted Tail Drop
- USB Type-A and Type-B ports plus an out-of-band Ethernet management port

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000 Ethernet (non-PoE)
- Feature set: LAN Base (Layer 2)
- Default power supply: 350W AC (C3KX-PWR-350WAC)
- PoE: None (data-only model)
- Switching fabric: 160 Gbps
- Forwarding rate: 101.2 mpps (with two 10GbE uplinks)
- DRAM: 256 MB
- Flash: 64 MB
- Total VLANs: 1005
- VLAN IDs: 4K
- Switched virtual interfaces: 1K
- Jumbo frame: 9216 bytes
- Unicast MAC addresses: 4K (access), 6K (default), 12K (VLAN template)
- Dimensions (H x W x D): 4.45 x 44.5 x 46.0 cm
- Weight: 7.3 kg
- Form factor: 1RU
- MTBF: 186,778 hours
- Power input: 100-240 VAC, 50-60 Hz, 4-2 A
- Operating temperature (AC PSU): -5 to +45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 95% non-condensing

FAQs

Q: Does this switch support PoE?
A: No. The WS-C3560X-48T-L is a data-only model with no PoE budget. The PoE versions of the 3560-X use a different SKU.

Q: Which licence does it ship with and can it be upgraded?
A: It ships with the LAN Base feature set, indicated by the -L suffix. It can be upgraded to IP Base or IP Services using Cisco IOS software activation licences such as C3560X-48-L-S and C3560X-48-L-E.

Q: What uplink modules does it work with?
A: It accepts the C3KX-NM-1G (4x GbE SFP), C3KX-NM-10G (2x 10GbE SFP+) and C3KX-NM-10GT (2x 10GBASE-T) network modules. The C3KX-SM-10G Service Module also fits but requires IP Base or IP Services.

Q: Which power supplies can be used?
A: The default supply is the 350W AC C3KX-PWR-350WAC. The switch also works with the C3KX-PWR-715WAC, C3KX-PWR-1100WAC and C3KX-PWR-440WDC, and a second bay allows a redundant supply. The XPS 2200 can be used as an external redundant power system.

Q: Can I stack it with other switches?
A: No. The 3560-X is a standalone switch. StackWise and StackPower are available on the 3750-X only.
