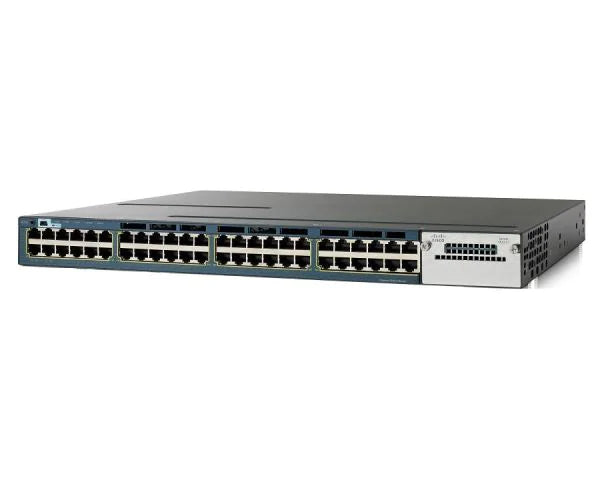

• Cisco WS-C3560X-48T-E 48-port Gigabit Ethernet Switch
1 1

Cisco

Cisco WS-C3560X-48T-E | Catalyst 3560-X 48-Port Gigabit Switch, IP Services

WS-C3560X-48T-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3560-X WS-C3560X-48T-E is a standalone 1RU enterprise access switch for campus and branch networks that need data-only connectivity with advanced Layer 3 services. It suits routed access deployments, secure access designs using MACsec and TrustSec, and 10G uplinks to the distribution layer.

This SKU provides 48 x 10/100/1000 Ethernet ports without PoE, a 160 Gbps switching fabric and a forwarding rate of 101.2 mpps with two 10GbE uplinks. It ships with the IP Services feature set, the highest licence tier, and a 350W AC modular power supply. Memory is 256 MB DRAM and 64 MB flash, with support for 1005 VLANs and 9216-byte jumbo frames.

Uplinks are provided through optional hot-swappable network modules: C3KX-NM-1G, C3KX-NM-10G, C3KX-NM-10GT and the C3KX-SM-10G Service Module with Flexible NetFlow and MACsec uplink encryption. The switch supports a second modular power supply for redundancy and is compatible with the XPS 2200 redundant power system. It is not stackable.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IP Services feature set with advanced Layer 3 routing including EIGRP, OSPF, BGP, PIM, IPv6 routing, PBR, VRF-Lite and IP SLA
- Optional hot-swappable uplink network modules with 1G or 10G ports
- Dual redundant modular power supplies and fans
- MACsec hardware-based encryption, with switch-to-switch encryption via the Service Module
- Flexible NetFlow with the Service Module (32,000 flows)
- Cisco EnergyWise for power monitoring and management
- Cisco Catalyst Smart Operations including Smart Install, Auto Smartports and Smart Configuration
- TrustSec and 802.1X identity-based security, DHCP snooping, Dynamic ARP Inspection, IP Source Guard and port security
- Advanced QoS with 8 egress queues per port, SRR scheduling, WTD and policers

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000 Ethernet (non-PoE)
- Feature set: IP Services
- Default power supply: C3KX-PWR-350WAC, 350W, 100-240VAC 50-60 Hz
- Switching fabric: 160 Gbps
- Forwarding rate (with two 10GbE uplinks): 101.2 mpps
- DRAM: 256 MB
- Flash: 64 MB
- Total VLANs: 1005
- VLAN IDs: 4K
- Total switched virtual interfaces (SVIs): 1K
- Jumbo frame: 9216 bytes
- Unicast MAC addresses: 4K (Access) / 6K (Default) / 3K (Routing) / 12K (VLAN template)
- IGMP groups and multicast routes: 1K
- Unicast routes: 6K (Access) / 8K (Default) / 11K (Routing)
- Security ACEs: 2K (Access) / 1K (Default, Routing, VLAN)
- QoS classification ACEs: 0.5K
- Dimensions (H x W x D): 4.45 x 44.5 x 46.0 cm (1RU)
- Weight: 7.3 kg
- MTBF: 186,778 hours
- Operating temperature (AC PSU): -5 to +45 C up to 1500 m; -5 to +40 C up to 3000 m
- Relative humidity: 5% to 95% non-condensing
- Storage temperature: -40 to 70 C
- Acoustic noise (AC PSU, ISO 7779): 43 dBA typical, 46 dBA maximum
- Connectors: RJ-45 (1000BASE-T), USB Type-A and Type-B, out-of-band Ethernet management port, RJ-45 console port
- Safety and EMC: UL 60950-1, CE, FCC Part 15 Class A, VCCI Class A, RoHS 5, NEBS Level 3

FAQs

Q: Which licence tier does this switch run?
A: The -E suffix denotes the IP Services feature set, the highest tier, which includes advanced Layer 3 IPv4 and IPv6 routing. LAN Base and IP Base are the lower tiers in the range.

Q: Does this switch provide PoE?
A: No. This is a non-PoE model with 48 data-only Gigabit ports and no PoE budget. It is powered by a 350W AC supply.

Q: Which uplink modules does it work with?
A: It supports the C3KX-NM-1G, C3KX-NM-10G and C3KX-NM-10GT network modules and the C3KX-SM-10G Service Module. The modules are hot-swappable and add 1G SFP, 10G SFP+ or 10GBASE-T uplinks.

Q: Can I fit a redundant power supply?
A: Yes. It uses the C3KX-PWR-350WAC by default and accepts a second modular supply for redundancy. 715W, 1100W and 440W DC supplies are supported, as is the XPS 2200 redundant power system.

Q: Can this switch be stacked?
A: No. The Catalyst 3560-X is a standalone switch. The Catalyst 3750-X is the stackable model in this family.
