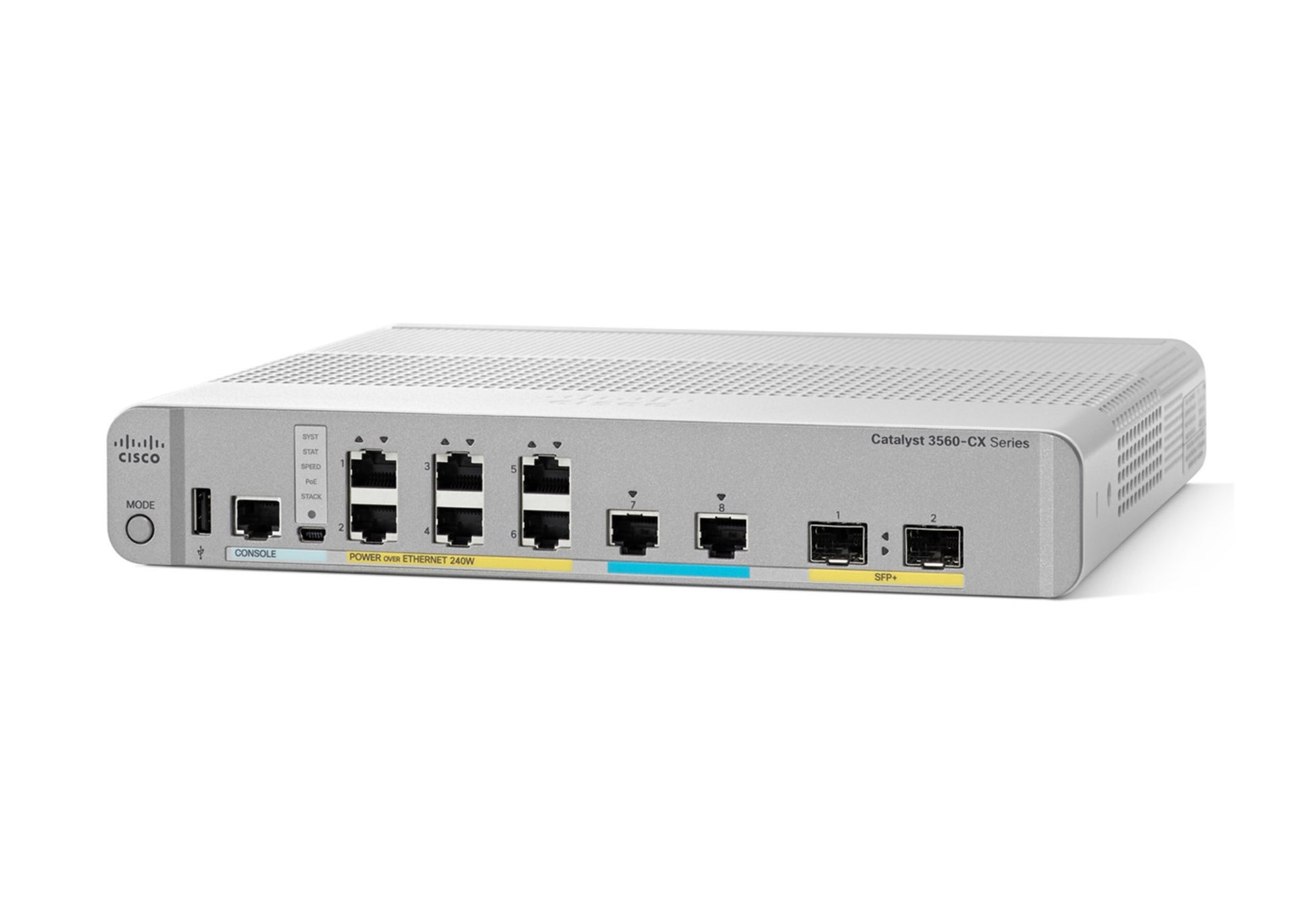

• Cisco WS-C3560CX-8XPD-S Catalyst 3560-X PoE+ switch with 8 ports
1 1

Cisco

Cisco WS-C3560CX-8XPD-S | Catalyst 3560-CX 8-Port PoE+ Switch, 240W, IP Base

WS-C3560CX-8XPD-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3560-CX is a fanless, compact managed Layer 3 switch built for space-constrained deployments such as open workspaces, desks and wall mounts. It suits Wi-Fi backhaul for 802.11ac Wave 2 access points, and connects IP phones, surveillance cameras, PCs and video endpoints over a single copper or fibre run from the wiring closet.

This model provides six Gigabit Ethernet PoE+ ports and two Multigigabit PoE+ ports that run at 100M, 1G, 2.5G, 5G or 10G, with a 240W PoE budget shared across all eight ports and up to 30W per port. Two 10G SFP+ uplinks carry aggregated traffic, backed by 46 Gbps of forwarding bandwidth and a 68.4 Mpps forwarding rate. It ships with IP Base, and IP Services is available through a Right-To-Use licence. Cisco DNA Essentials, Advantage and Premier subscriptions are also available, with DNA Advantage required for SD-Access Extended Node.

Uplinks accept SFP+ and SFP optics listed in the Cisco Transceiver Compatibility Matrix. Mounting options include DIN rail kit CMPCT-DIN-MNT=, 19-inch rack kit RCKMNT-19-CMPCT=, 23/24-inch rack kit RCKMNT-23-CMPCT=, and magnet and tray kit CMPCT-MGNT-TRAY=.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Multigigabit Ethernet supports 100M/1/2.5/5G over Cat 5e and up to 10G over Cat 6a, with PoE+ at all speeds
- Fanless, silent compact design for deployment outside the wiring closet
- Flexible mounting: wall, under desk, rack or DIN rail
- Perpetual PoE keeps powered devices running during a switch reboot
- Cisco SD-Access Extended Node support with a Cisco DNA Advantage licence
- Network Plug and Play, Smart Install, Auto Smartports and Embedded Event Manager
- Security with TrustSec, MACsec (802.1AE), 802.1X, IPv6 first-hop security and Secure Boot
- Energy efficiency with IEEE 802.3az EEE and switch hibernate mode
- NetFlow Lite and advanced QoS with 8 egress queues per port

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ethernet ports: 6 x 10/100/1000 Gigabit Ethernet plus 2 x Multigigabit Ethernet (100 Mbps/1/2.5/5/10 Gbps)
- PoE output ports: 8 x PoE+
- Available PoE power: 240W
- Maximum PoE+ power per port: 30W
- Uplinks: 2 x 10G SFP+
- Default software: IP Base (IP Services with RTU licence)
- Forwarding bandwidth: 46 Gbps
- Switching bandwidth (full-duplex): 92 Gbps
- Forwarding rate (64-byte packets): 68.4 Mpps
- Flash memory: 128 MB
- DRAM: 512 MB
- Maximum VLANs: 1023
- VLAN IDs: 4000
- MTU: up to 9000 bytes
- Jumbo frames: 9198 bytes
- Dimensions (H x W x D): 1.75 x 10.6 x 10.4 in (4.44 x 26.9 x 26.4 cm)
- Weight: 6.0 lb (2.72 kg)
- Operating temperature: -5 to +45 C (max 35 C when installed inverted and fully loaded with max PoE and 10G SFP+ optics)
- Storage temperature: -25 to +70 C
- Operating altitude: up to 3048 m (10,000 ft)
- Relative humidity: 5% to 95% non-condensing
- MTBF: 528,480 hours
- Power supply: internal 300W, 80 Plus Silver, 100-240 VAC
- Power consumption at 100% throughput: 35.2 W
- Power consumption at 100% throughput with max PoE load: 285.1 W

FAQs

Q: Which licence does this switch run?
A: It runs IP Base. IP Services is available through the L-C3560CX-RTU= (electronic) or C3560CX-RTU= (paper) Right-To-Use licence.

Q: How much PoE power does it provide?
A: It has a 240W total PoE+ budget shared across eight ports, with up to 30W available on any single port.

Q: What does the Multigigabit port speed range cover?
A: The two Multigigabit ports negotiate 100M, 1G, 2.5G, 5G or 10G. Speeds up to 5G run over Cat 5e, and 10G needs Cat 6a.

Q: Which mounting kits are available for it?
A: Options include DIN rail kit CMPCT-DIN-MNT=, 19-inch rack kit RCKMNT-19-CMPCT=, 23/24-inch rack kit RCKMNT-23-CMPCT=, and magnet and tray kit CMPCT-MGNT-TRAY=.

Q: Can it be used as an SD-Access Extended Node?
A: Yes. It supports SD-Access Extended Node with a Cisco DNA Advantage licence and a fabric-edge capable upstream switch.
