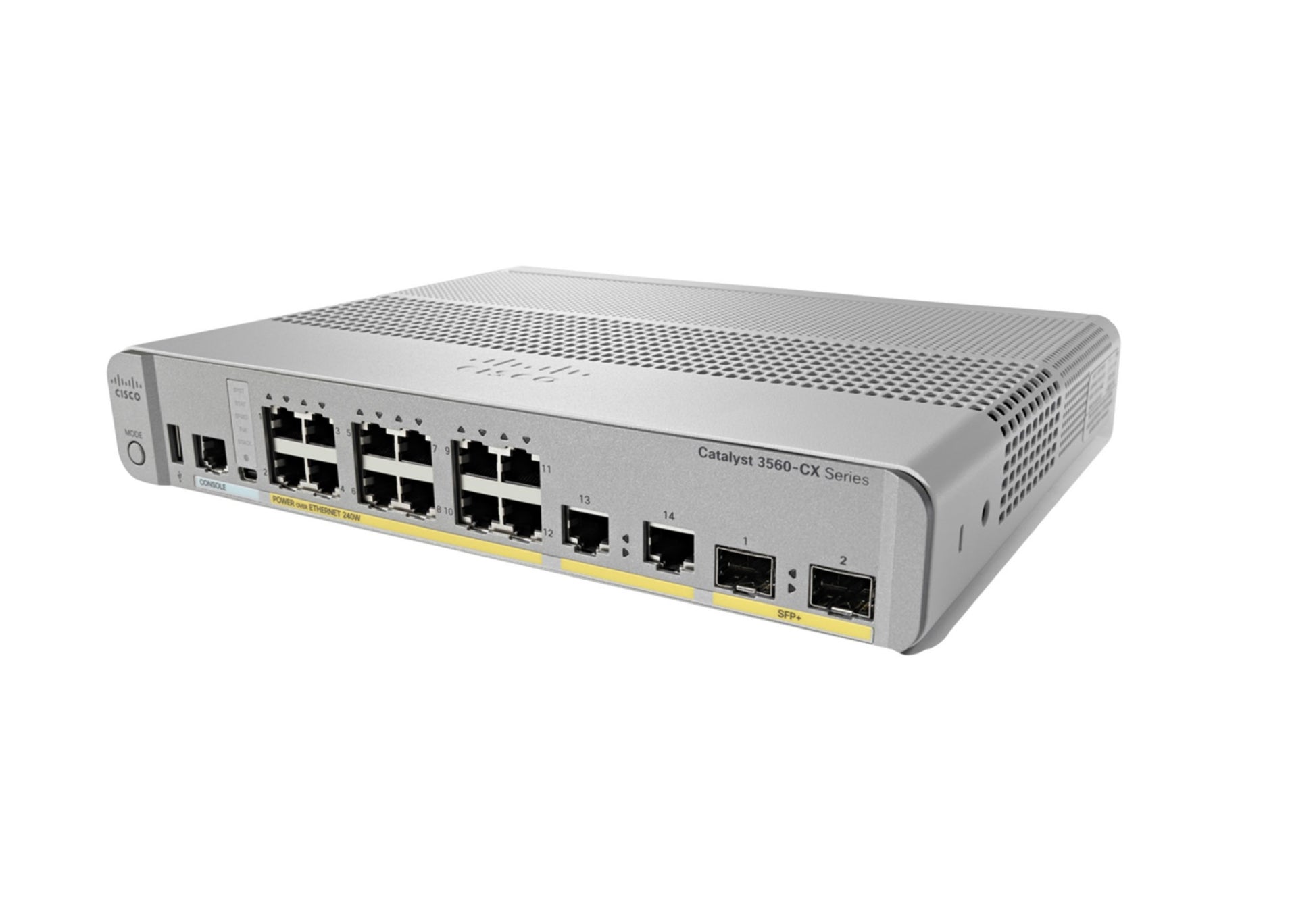

• Cisco WS-C3560CX-12PD-S silver router with 12x 1G PoE+ ports
1 1

Cisco

Cisco WS-C3560CX-12PD-S | Catalyst 3560-CX 12-Port PoE+ Switch, 240W, IP Base

WS-C3560CX-12PD-S

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 3560-CX is a fanless, compact Layer 3 switch built for space-constrained deployments outside the wiring closet. It suits desktops, classrooms, hospitality and retail environments where running multiple cables back to a closet would be difficult, and it extends wireless LANs by powering access points and IP phones directly.

This model provides 12 x 10/100/1000 Gigabit Ethernet PoE+ ports with a 240W PoE budget, plus four uplinks: 2 x 10G SFP+ and 2 x 1G copper RJ-45. Forwarding bandwidth is 34 Gbps, switching bandwidth is 68 Gbps and forwarding rate is 50.6 Mpps. It ships with the IP Base feature set, with IP Services available as a right-to-use upgrade. The internal AC power supply accepts 100-240 VAC and the unit is rated at 290W.

The two 10G uplinks accept SFP and SFP+ modules listed in the Cisco Transceiver Compatibility Matrix, while the 1G copper uplinks use standard RJ-45 cabling.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fanless, small form-factor design for space-constrained deployments
- PoE+ on all 12 downlink ports for access points, IP phones and other PoE devices
- 10G SFP+ uplinks for high-bandwidth and next-generation wireless uplinks
- Layer 3 IP Base feature set
- Internal autoranging AC power supply with no external PoE power shelf required
- Jumbo frame support up to 9198 bytes

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Downlink ports: 12 x 10/100/1000 Gigabit Ethernet, all PoE+
- PoE budget: 240W
- Uplinks: 2 x 10G SFP+ and 2 x 1G copper RJ-45
- Feature set: IP Base
- Forwarding bandwidth: 34 Gbps
- Switching bandwidth: 68 Gbps
- Forwarding rate: 50.6 Mpps (64-byte packets)
- Flash memory: 128 MB
- DRAM: 512 MB
- Maximum VLANs: 1023
- VLAN IDs: 4000
- MTU: up to 9000 bytes
- Jumbo frames: 9198 bytes
- Power supply: internal, autoranging 100-240 VAC, 3.25-1.5A
- Power consumption: 29.5W at 0% throughput, 278W at 100% throughput with maximum PoE loads
- Power rating: 290W / 0.31 kVA / 1057.71 BTU
- Dimensions (H x W x D): 4.44 x 26.9 x 23.8 cm (1.75 x 10.6 x 9.4 in)
- Weight: 2.31 kg (5.1 lb)
- Operating temperature: -5 to 45 C (maximum 40 C on 10G SKUs, cold start minimum 0 C)
- Storage temperature: -25 to 70 C
- Operating relative humidity: 5% to 95% noncondensing
- MTBF: 528,480 hours

FAQs

Q: Which feature set does this switch ship with?
A: The -S suffix indicates the IP Base feature set. IP Services is available as an upgrade through a right-to-use licence.

Q: How much PoE power is available?
A: The switch provides a 240W PoE budget shared across its 12 PoE+ ports. The internal AC power supply accepts 100-240 VAC.

Q: What can connect to the uplink ports?
A: The two 10G uplinks accept SFP and SFP+ modules listed in the Cisco Transceiver Compatibility Matrix. The two 1G uplinks are copper RJ-45 ports using standard Ethernet cabling.

Q: Does it have a fan?
A: No. The 3560-CX is fanless, which makes it suitable for quiet environments such as classrooms, hospitality and retail spaces.

Q: What is the maximum operating temperature?
A: Models with 10G uplinks, including this one, have a maximum operating temperature of 40 C, with a cold start minimum of 0 C.
