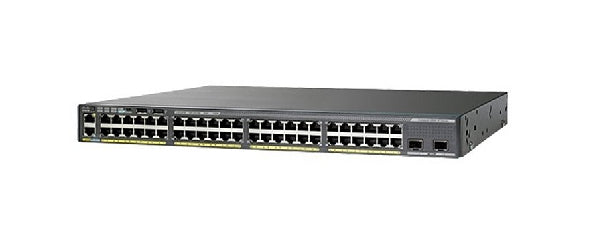

• Cisco WS-C2960XR-48TS-I 48-port Gigabit Ethernet switch
1 1

Cisco

Cisco WS-C2960XR-48TS-I | Catalyst 2960-XR 48-Port Gigabit Switch, 4x SFP, IP Lite

WS-C2960XR-48TS-I

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-XR is a fixed-configuration, stackable Gigabit Ethernet access switch built for campus and branch access-layer deployments that need Layer 3 routed-access capability. This model provides 48 x 10/100/1000 non-PoE ports with 4 x 1G SFP uplinks and runs the Cisco IOS IP Lite feature set.

It delivers 108 Gbps of forwarding bandwidth, 216 Gbps of full-duplex switching bandwidth and a forwarding rate of 107.1 Mpps on 64-byte Layer 3 packets. The switch supports up to 1023 active VLANs, jumbo frames up to 9216 bytes and 16,000 unicast MAC addresses on the default IP Lite template. It is powered by one field-replaceable 250W AC supply (PWR-C2-250WAC) and a second can be added for power redundancy. Typical measured consumption is about 44.8 W. IP Lite is fixed per model and cannot be upgraded from LAN Base.

FlexStack-Plus stacking (up to 8 switches, 80 Gbps stack bandwidth) is available with the optional C2960X-STACK module, and FlexStack-Extended is available with the C2960X-FIBER-STK or C2960X-HYBRID-STK modules. The SFP uplinks accept Cisco SFP modules.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco IOS IP Lite with Layer 2 and Layer 3 features including static routing, RIP, OSPF for routed access, EIGRP Stub, PIM, PBR, HSRP and VRRP
- FlexStack-Plus stacking up to 8 switches with 80 Gbps stack bandwidth, and FlexStack-Extended long-distance stacking
- Optional second field-replaceable power supply for power redundancy
- Security including 802.1X, Cisco TrustSec, IPv6 First-Hop Security, DAI, IP Source Guard, BPDU Guard and ACLs
- Enhanced QoS with up to 8 egress queues per port, SRR scheduling and Auto-QoS
- Management via web UI, CLI, SNMP and Bluetooth over-the-air access with a USB dongle
- Energy efficiency through Switch Hibernation Mode and IEEE 802.3az EEE
- Resiliency with cross-stack EtherChannel, Flex Links, RSTP/MSTP and PVRST+

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ethernet ports: 48 x 10/100/1000 (non-PoE)
- Uplink interfaces: 4 x 1G SFP
- Software feature set: Cisco IOS IP Lite
- Forwarding bandwidth: 108 Gbps
- Switching bandwidth: 216 Gbps (full-duplex)
- Forwarding rate: 107.1 Mpps (64-byte Layer 3 packets)
- Default power supply: PWR-C2-250WAC, field-replaceable
- Input voltage: 90 to 264 VAC, 50 to 60 Hz
- Measured power consumption: 44.8 W weighted average
- Stacking: FlexStack-Plus and FlexStack-Extended (optional module), up to 8 switches
- Flash memory: 128 MB
- DRAM: 512 MB
- CPU: APM86392 600 MHz dual core
- Console ports: USB (Type B) and Ethernet (RJ-45)
- Maximum active VLANs: 1023
- Jumbo frame: 9216 bytes
- Unicast MAC addresses (default IP Lite template): 16,000
- Dimensions: 4.45 x 40.8 x 44.5 cm (1RU)
- Weight: 6.0 kg
- Operating temperature: -5 to 45 C up to 1500 m
- MTBF: 438,130 hours

FAQs

Q: Does this switch support PoE?
A: No. This is a non-PoE model with 48 x 10/100/1000 access ports and no PoE power budget. The 250W supply powers the switch itself.

Q: Can the IP Lite feature set be upgraded?
A: No. The feature level is fixed per model, so IP Lite cannot be changed or upgraded to another tier. Full Flexible NetFlow, DNS-AS and Cisco DNA Center features require a Cisco DNA Essentials term licence.

Q: How do I stack this switch?
A: Fit the optional C2960X-STACK module for FlexStack-Plus, or the C2960X-FIBER-STK or C2960X-HYBRID-STK module for FlexStack-Extended, and use CAB-STK-E stacking cables. FlexStack-Plus stacks only with other 2960-XR IP Lite switches.

Q: Can I add a second power supply?
A: Yes. A second PWR-C2-250WAC can be installed for power redundancy alongside the default supply.

Q: Which rack-mount kits fit this switch?
A: The RCKMNT-1RU-2KX= and RCKMNT-REC-2KX= rack-mount kits are compatible with this 1RU switch.
