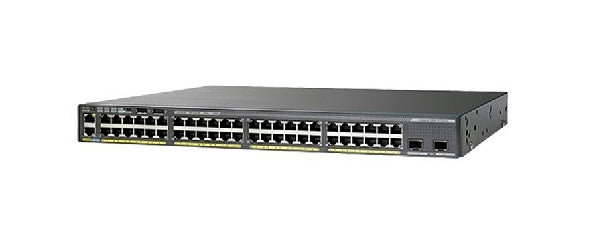

• Cisco WS-C2960XR-48TD-I 48-port Gigabit Ethernet switch with 2x 10G SFP+ uplinks
1 1

Cisco

Cisco WS-C2960XR-48TD-I | Catalyst 2960-XR 48-Port Gigabit Switch, 2x 10G SFP+, IP Lite

WS-C2960XR-48TD-I

Stock Status: Enquire

Request Quote
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst WS-C2960XR-48TD-I is a stackable Layer 3 Gigabit Ethernet switch designed for enterprise campus and branch access deployments. It delivers 48 Gigabit Ethernet ports with two 10G SFP+ uplinks, IP Lite software for basic Layer 3 routing capabilities including static routing, RIP, OSPF stub, EIGRP stub, HSRP, and VRRP. With FlexStack-Plus stacking support for up to 8 switches and a switching capacity of 216 Gbps, this 1U rack-mountable switch provides scalable, energy-efficient connectivity for growing business networks.

Features

IP Lite Cisco IOS software with basic Layer 3 routing: static routing, RIP, OSPF stub, EIGRP stub, HSRP, VRRP, PIM stub
- FlexStack-Plus stacking: up to 8 switches with 80 Gbps stack bandwidth for scalability and simplified management
- Layer 2 switching: VLANs (1,023 active), IEEE 802.1Q VLAN tagging, GVRP, Private VLANs
- Spanning Tree Protocol: IEEE 802.1D, 802.1w (Rapid STP), 802.1s (Multiple STP), BPDU Guard, Root Guard
- Link aggregation: IEEE 802.3ad LACP, up to 48 groups
- Quality of Service (QoS): 802.1p CoS, DSCP-based classification, 4 egress queues per port, weighted tail drop
- Security features: IEEE 802.1X authentication, MAC-based authentication, Web authentication, ACLs (IPv4/IPv6), DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
- IPv6 support: IPv6 routing (RIPng, OSPFv3 stub, EIGRPv3 stub), MLD snooping, IPv6 ACLs, DHCPv6
- Network management: SNMP v1/v2c/v3, RMON, Cisco Discovery Protocol, LLDP, sFlow, Flexible NetFlow
- Cisco Prime Infrastructure support for centralized network lifecycle management
- Cisco Network Plug and Play for zero-touch deployment
- Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption during low traffic periods
- Switch Hibernation Mode (SHM) for ultra-low power operation during idle periods
- Dual field-replaceable power supply slots (second PSU optional) for power redundancy
- USB console and management ports for flexible administration

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

48x 10/100/1000 Gigabit Ethernet RJ45 ports
- 2x 10G SFP+ uplink ports
- Switching capacity: 216 Gbps
- Forwarding rate: 130.9 Mpps (wire-speed)
- Memory: 512 MB DRAM, 128 MB Flash
- MAC address table: 16,000 entries
- Maximum VLANs: 1,023 active
- FlexStack-Plus stacking: up to 8 units, 80 Gbps stack bandwidth
- Power supply: 250W AC (90-264 VAC, 50-60 Hz)
- Typical power consumption: 44.8W
- Dimensions: 4.45 x 40.8 x 44.5 cm (1.75 x 16.0 x 17.5 in), 1U rack-mountable
- Weight: 6.1 kg (13.3 lbs)
- Management: CLI, Web UI, SNMP, RMON, Cisco Prime, USB console
- Operating temperature: 0°C to 45°C
- Certifications: RoHS compliant

FAQs

Q: Does the WS-C2960XR-48TD-I support Power over Ethernet (PoE)?
A: No, this model does not support PoE. It provides 48 standard Gigabit Ethernet ports without PoE capability. For PoE requirements, consider the WS-C2960XR-48LPS-I or WS-C2960XR-48FPS-I models from the same series.

Q: What Layer 3 routing features are included with IP Lite?
A: The IP Lite feature set includes basic Layer 3 routing protocols such as static routing, RIPv1, RIPv2, RIPng, OSPF stub, EIGRP stub, HSRP, VRRP, and PIM stub. This enables routed access deployments at the network edge for campus and branch offices.

Q: Can this switch be stacked with other Catalyst 2960-XR models?
A: Yes, the WS-C2960XR-48TD-I supports FlexStack-Plus stacking with other 2960-XR series switches. Up to 8 switches can be stacked together with 80 Gbps total stack bandwidth, managed as a single logical unit. A FlexStack-Plus module (sold separately) is required for stacking.

Q: Is the IP Lite feature set upgradeable to a higher tier?
A: No, the feature set is fixed to the specific switch model and cannot be upgraded. The WS-C2960XR-48TD-I is permanently configured with IP Lite software and cannot be upgraded to LAN Base or other feature sets.

Q: What is the difference between the 2960X and 2960XR series?
A: The 2960XR series includes IP Lite software with Layer 3 routing capabilities, optional dual field-replaceable power supplies for redundancy, and higher-speed 10G SFP+ uplinks. The 2960X series offers LAN Lite or LAN Base feature sets with Layer 2 switching and 1G SFP uplinks, suited for simpler access layer deployments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
