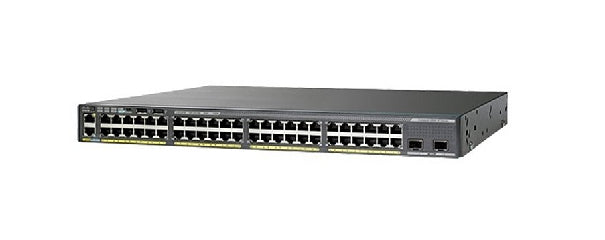

• Cisco WS-C2960XR-48LPS-I 48-port PoE+ switch with 4x SFP uplinks
1 1

Cisco

Cisco WS-C2960XR-48LPS-I | Catalyst 2960-XR 48-Port PoE+ Switch, 370W, IP Lite

WS-C2960XR-48LPS-I

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-XR is a fixed-configuration, stackable Layer 2/3 Gigabit access switch for campus and branch networks. This model suits sites powering IP phones and Aironet wireless access points over PoE+, and networks that want Layer 3 routed access without moving to a larger platform.

It provides 48 10/100/1000 PoE+ ports and 4 x 1G SFP uplinks, with a 370W PoE budget that supports 12 ports at up to 30W or 24 ports at up to 15.4W. Forwarding bandwidth is 108 Gbps, switching bandwidth is 216 Gbps and the forwarding rate is 107.1 Mpps. The default PWR-C2-640WAC power supply is a 640W AC unit, and a second supply can be added for redundancy. It runs the Cisco IOS IP Lite feature set, which is fixed to this model and cannot be upgraded.

FlexStack-Plus and FlexStack-Extended stacking lets up to 8 switches operate as one unit, working with other 2960-XR IP Lite models. Supported power supplies are PWR-C2-250WAC, PWR-C2-640WAC and PWR-C2-1025WAC, and the Cisco RPS 2300 is also supported.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IEEE 802.3af PoE and 802.3at PoE+ with Perpetual PoE, which keeps PoE power during a switch reload
- Layer 3 routed access with OSPF, static routing, RIP/RIPng, EIGRP Stub, PIM, PBR and HSRP/VRRP
- FlexStack-Plus and FlexStack-Extended stacking for up to 8 switches
- Security including 802.1X, TrustSec, port security, DAI, IP Source Guard and ACLs
- QoS with 8 egress queues per port, SRR scheduling and Auto-QoS
- Management via CLI, web UI, SNMP, Cisco Prime, Network Plug and Play and DNA Center
- Energy efficiency with 802.3az EEE, EnergyWise and Switch Hibernation Mode
- NetFlow Lite, Smart Install and GOLD diagnostics

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 48 x 10/100/1000 PoE+
- Uplinks: 4 x 1G SFP
- Available PoE power: 370W
- PoE+ (802.3at) capacity: 12 ports up to 30W
- PoE (802.3af) capacity: 24 ports up to 15.4W
- Software image: Cisco IOS IP Lite
- Default power supply: PWR-C2-640WAC (640W AC)
- Forwarding bandwidth: 108 Gbps
- Switching bandwidth: 216 Gbps
- Forwarding rate: 107.1 Mpps (64-byte packets)
- Stack bandwidth: 80 Gbps FlexStack-Plus (40 Gbps FlexStack-Extended), up to 8 members
- Flash memory: 128 MB
- CPU: APM86392 600 MHz dual core
- Console ports: USB (Type B), Ethernet (RJ-45)
- Maximum active VLANs: 1023
- Unicast MAC addresses: 16,000
- Jumbo frame: 9216 bytes
- Input voltage: 90 to 264 VAC, 50-60 Hz
- Dimensions (H x D x W): 4.45 x 40.8 x 44.5 cm (1RU)
- Weight: 6.4 kg
- Operating temperature: -5 to 45 C up to 1500 m
- Acoustic noise: 40 dB typical
- MTBF: 274,380 hours

FAQs

Q: Can the IP Lite feature set be upgraded?
A: No. The 2960-XR family ships only with the Cisco IOS IP Lite feature set, and the feature level is tied to the model. Flexible NetFlow and DNS-AS need a separate Cisco ONE Foundation or DNA Essentials licence.

Q: How much PoE power can it deliver?
A: The 370W PoE budget supports 12 ports at up to 30W (PoE+) or 24 ports at up to 15.4W (PoE). The default PWR-C2-640WAC power supply provides this budget.

Q: Can I add a second power supply for redundancy?
A: Yes. A second PWR-C2-640WAC can be added for redundancy, and the unit also has a connector for the Cisco RPS 2300.

Q: What can it be stacked with?
A: FlexStack-Plus and FlexStack-Extended stacking supports up to 8 members, working with the other 2960-XR IP Lite models. Stacking cables are CAB-STK-E-0.5M, CAB-STK-E-1M and CAB-STK-E-3M.

Q: Which power supplies does it support?
A: The supported power supplies are PWR-C2-250WAC, PWR-C2-640WAC and PWR-C2-1025WAC, and the Cisco RPS 2300 (PWR-RPS2300) is also supported.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
