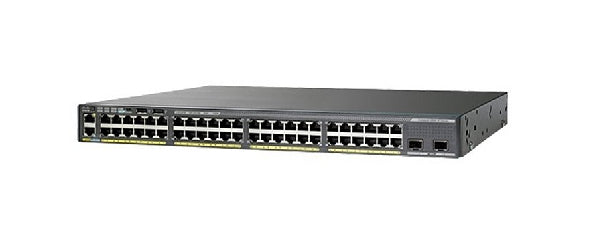

• Cisco WS-C2960XR-48LPD-I 48-port PoE+ switch with 10G uplinks
1 1

Cisco

Cisco WS-C2960XR-48LPD-I | Catalyst 2960-XR 48-Port PoE+ Switch, 370W, IP Lite

WS-C2960XR-48LPD-I

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-XR is a fixed-configuration, stackable Layer 2 and Layer 3 Gigabit Ethernet access switch built for enterprise campus and branch access layers. This 48-port PoE+ model suits closets that power IP phones, wireless access points and other PoE endpoints, including routed-access deployments and stacked access closets that need power redundancy.

It provides 48 x 10/100/1000 ports with a 370W PoE+ budget, enough for 12 ports at 30W PoE+ or 24 ports at 15.4W PoE. Two SFP+ slots provide 10G uplinks. Forwarding bandwidth is 108 Gbps, switching bandwidth is 216 Gbps and the forwarding rate is 130.9 Mpps for 64-byte Layer 3 packets. It runs the Cisco IOS IP Lite feature set, which adds routed-access features such as OSPF, EIGRP Stub, HSRP and VRRP. The image is fixed to the SKU and cannot be upgraded.

The switch uses a field-replaceable 640W AC power supply (PWR-C2-640WAC) and accepts a second supply for redundancy. It stacks through the optional FlexStack-Plus module (C2960X-STACK) or the FlexStack-Extended fibre and hybrid modules. A 2960-XR IP Lite switch stacks only with other 2960-XR IP Lite switches.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Perpetual PoE keeps PoE+ power on during a switch reload
- IEEE 802.3af PoE and 802.3at PoE+ with intelligent power management
- Layer 3 routed access with OSPF, static routing, RIP, RIPng, EIGRP Stub, HSRP and VRRP
- FlexStack-Plus and FlexStack-Extended stacking of up to 8 switches with a single management IP
- Security with 802.1X, Cisco TrustSec, IPv6 First-Hop Security, DAI, IP Source Guard, Private VLANs, BPDU Guard and ACLs
- Enhanced QoS with up to 8 egress queues per port, SRR scheduling and Auto-QoS
- Management via web UI, CLI, SNMP, Bluetooth over-the-air access, and RJ-45 or USB console
- Energy efficiency with IEEE 802.3az EEE, Switch Hibernation Mode and Cisco EnergyWise

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ethernet ports: 48 x 10/100/1000
- Uplink interfaces: 2 x 10G SFP+
- Cisco IOS software image: IP Lite
- Available PoE power: 370W
- PoE+ (802.3at) capacity: 12 ports at up to 30W
- PoE (802.3af) capacity: 24 ports at up to 15.4W
- Forwarding bandwidth: 108 Gbps
- Switching bandwidth: 216 Gbps
- Forwarding rate (64-byte Layer 3 packets): 130.9 Mpps
- Default power supply: PWR-C2-640WAC, field-replaceable
- Flash memory: 128 MB
- CPU: APM86392 600 MHz dual core
- Console ports: USB (Type B) and Ethernet (RJ-45)
- Management interface: 10/100 Mbps Ethernet (RJ-45)
- Storage interface: USB (Type A) for external flash
- Maximum active VLANs: 1023
- VLAN IDs available: 4096
- MTU: 9198 bytes (Layer 3), 9216 bytes (Ethernet frame)
- Unicast MAC addresses: 16,000 (default SDM template)
- Stack bandwidth: 80 Gbps (FlexStack-Plus), 40 Gbps (FlexStack-Extended)
- Input voltage: 90 to 264 VAC, 50 to 60 Hz
- Dimensions (H x D x W): 4.45 x 40.8 x 44.5 cm (1RU)
- Weight: 6.4 kg
- Operating temperature: -5 to 45 C up to 1500 m
- Predicted reliability (MTBF): 275,430 hours

FAQs

Q: Does this switch need a licence or subscription?
A: No. It ships with the Cisco IOS IP Lite feature set, which is fixed to the SKU and cannot be upgraded. Features such as full Flexible NetFlow, DNS-AS and Cisco DNA Center integration need a Cisco DNA Essentials term licence or a Cisco ONE Foundation licence.

Q: How much PoE power does it provide?
A: It has a 370W PoE+ budget. That is enough for 12 ports at 30W PoE+ or 24 ports at 15.4W PoE, so not all 48 ports can be powered at full PoE+ at once.

Q: Can I add a second power supply?
A: Yes. It ships with a field-replaceable 640W AC power supply (PWR-C2-640WAC) and accepts a second 640W unit for power redundancy.

Q: What do I need to stack it?
A: Use the FlexStack-Plus module (C2960X-STACK) or the FlexStack-Extended fibre (C2960X-FIBER-STK) or hybrid (C2960X-HYBRID-STK) modules with CAB-STK-E stacking cables. Up to 8 switches can be stacked, but a 2960-XR IP Lite switch stacks only with other 2960-XR IP Lite switches.

Q: How does this model differ from similar 2960-XR 48-port switches?
A: This SKU has a 370W PoE+ budget, 2 x 10G SFP+ uplinks and the IP Lite software image. Sibling SKUs differ in PoE budget, uplink type or software image.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
