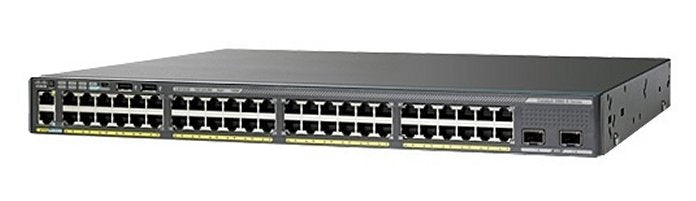

• Cisco WS-C2960XR-48FPS-I 48-port PoE+ Ethernet switch
1 1

Cisco

Cisco WS-C2960XR-48FPS-I | Catalyst 2960-XR 48-Port PoE+ Switch, 740W, IP Lite

WS-C2960XR-48FPS-I

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-XR is a fixed-configuration, stackable Gigabit Ethernet access switch for enterprise campus and branch networks that need high-density PoE+ for IP phones, wireless access points, cameras and IoT endpoints. It runs the Cisco IOS IP Lite feature set, which adds Layer 3 routed access to the 2960-X family.

This SKU provides 48 10/100/1000 PoE/PoE+ ports and 4 x 1G SFP uplinks, with 740W of PoE budget. That is enough for 24 ports at up to 30W PoE+ or all 48 ports at up to 15.4W PoE. Forwarding rate is 107.1 Mpps (64-byte packets), with 108 Gbps forwarding bandwidth and 216 Gbps switching bandwidth. The IP Lite feature set is fixed to this SKU and cannot be changed to another feature set. Optional Cisco DNA Essentials subscription licences are available for Cisco DNA Center and Network Plug and Play use.

The switch uses a field-replaceable PWR-C2-1025WAC power supply, and a second unit can be added for power redundancy. FlexStack-Plus or FlexStack-Extended stacking modules, sold separately, allow up to 8 members per stack with other 2960-XR IP Lite switches. The 1RU chassis mounts in a standard rack.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IEEE 802.3af PoE and 802.3at PoE+ with intelligent power management and Perpetual PoE
- IP Lite Layer 3 routed access including OSPF, static routing, RIP, EIGRP Stub, PIM, PBR and HSRP/VRRP
- Optional second field-replaceable power supply for power redundancy
- FlexStack-Plus and FlexStack-Extended stacking with a single management IP
- Security including 802.1X, Cisco TrustSec, IPv6 First-Hop Security, DAI and IP Source Guard
- QoS with 8 egress queues per port, SRR scheduling and auto-QoS
- Flexible NetFlow and NetFlow Lite application visibility
- IEEE 802.3az EEE, Cisco EnergyWise and Switch Hibernation Mode for energy efficiency

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ethernet ports: 48 x 10/100/1000 with PoE/PoE+
- Uplink interfaces: 4 x 1G SFP
- Cisco IOS feature set: IP Lite
- Available PoE power: 740W
- PoE+ (802.3at): 24 ports up to 30W
- PoE (802.3af): 48 ports up to 15.4W
- Default power supply: PWR-C2-1025WAC
- Input voltage: 100 to 264 VAC, 50 to 60 Hz
- Forwarding rate: 107.1 Mpps (64-byte packets)
- Forwarding bandwidth: 108 Gbps
- Switching bandwidth: 216 Gbps (full-duplex)
- Maximum active VLANs: 1023
- Jumbo Ethernet frame: 9216 bytes
- Flash memory: 128 MB
- DRAM: 512 MB
- CPU: APM86392 600 MHz dual core
- Console ports: USB Type B, RJ-45 Ethernet
- Stacking: FlexStack-Plus / FlexStack-Extended (optional), up to 8 members
- Dimensions (H x D x W): 4.45 x 40.8 x 44.5 cm (1RU)
- Weight: 6.7 kg
- Operating temperature: -5 to 45 C up to 1500 m
- Storage temperature: -25 to 70 C
- Operating humidity: 10% to 95% noncondensing

FAQs

Q: Which licence tier does this switch ship with?
A: It ships with the Cisco IOS IP Lite feature set, which is fixed to this SKU and cannot be upgraded to another feature set. Optional term-based Cisco DNA Essentials subscription licences are needed for Cisco DNA Center and Network Plug and Play.

Q: How much PoE power does it provide?
A: It provides 740W of PoE budget from the PWR-C2-1025WAC power supply. This covers 24 ports at up to 30W PoE+ or 48 ports at up to 15.4W PoE.

Q: Can I add power supply redundancy?
A: Yes. A second PWR-C2-1025WAC field-replaceable power supply can be added, and the 740W PoE budget is retained if one supply fails.

Q: How do I stack this switch?
A: Stacking uses an optional C2960X-STACK (FlexStack-Plus) module, or C2960X-FIBER-STK or C2960X-HYBRID-STK (FlexStack-Extended), with CAB-STK-E stacking cables. It stacks only with other 2960-XR IP Lite switches, up to 8 members.

Q: What can I use in the SFP uplink ports?
A: The 4 uplink slots accept 1G SFP modules listed in the Cisco Transceiver Compatibility matrix.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
