• Cisco WS-C2960XR-48FPD-I 48-port PoE+ switch with 10G uplinks
1 1

Cisco

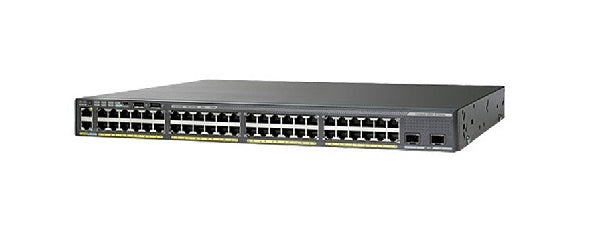

Cisco WS-C2960XR-48FPD-I | Catalyst 2960-XR 48-Port Gigabit PoE+ Switch, 740W, 2x 10G SFP+

WS-C2960XR-48FPD-I

Stock Status: Enquire

Request Quote
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco WS-C2960XR-48FPD-I is a stackable Gigabit Ethernet switch designed for enterprise campus and branch deployments. It features 48 PoE+ ports delivering up to 740W total PoE power for IP phones, wireless access points, and security cameras, along with two 10 Gigabit SFP+ uplinks for high-speed aggregation. Running IP Lite software, the switch supports basic Layer 3 routing including static routes, RIP, OSPF stub, EIGRP stub, and HSRP, making it ideal for cost-effective access layer convergence.

Features

IP Lite software with Layer 3 routing: static routes, RIP, OSPF stub, EIGRP stub, HSRP, VRRP
- Full Flexible NetFlow and NetFlow Lite for traffic visibility and analysis
- Advanced security: 802.1X authentication, MAC-based VLAN assignment, Cisco TrustSec, IPv6 First-Hop Security
- Dynamic PoE power allocation and intelligent power management
- Perpetual PoE: maintains power to devices during switch reboot or upgrade
- FlexStack-Plus stacking with 80 Gbps bandwidth and cross-stack EtherChannel
- Quality of Service (QoS): 4 egress queues per port, traffic classification, policing, and marking
- Energy Efficient Ethernet (EEE) IEEE 802.3az support
- Switching Database Manager (SDM) templates for optimized TCAM allocation
- IPv4 and IPv6 dual-stack support with hardware-based IPv6 routing
- Advanced Layer 2 features: Rapid PVST+, MST, BPDU Guard, Root Guard, Loop Guard
- Optional dual power supplies for redundancy and increased PoE capacity
- USB and Ethernet console ports for flexible management access
- Auto-negotiation on all ports for speed and duplex

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

48x 10/100/1000 Ethernet RJ45 ports with PoE+ (IEEE 802.3at)
- PoE Power Budget: 740W (24 ports at 30W or 48 ports at 15.4W)
- 2x 10 Gigabit Ethernet SFP+ uplink ports
- Switching Capacity: 216 Gbps
- Forwarding Rate: 130.9 Mpps
- DRAM: 256 MB
- Flash Memory: 128 MB
- CPU: APM86392 600 MHz dual core
- MAC Address Table: 16,000 entries
- IPv4 Routes: 26,750 (IP Lite)
- VLANs: 1,023 virtual interfaces supported, 4,096 VLAN IDs
- Stacking: FlexStack-Plus capable, up to 8 switches, 80 Gbps stack bandwidth
- Jumbo Frame Support: 9,216 bytes
- Power Supply: 1025W AC (field-replaceable, modular, dual power supply capable)
- Dimensions (H x W x D): 1.75 x 17.5 x 16.0 in (4.45 x 44.5 x 40.8 cm)
- Weight: 14.6 lb (6.6 kg)
- Management: CLI, Web GUI, SNMP, USB console, Ethernet management port
- Operating Temperature: 32°F to 113°F (0°C to 45°C)

FAQs

Q: What Layer 3 routing protocols does the IP Lite feature set support?
A: The IP Lite image on the WS-C2960XR-48FPD-I supports static routing, RIPv1, RIPv2, RIPng, OSPF stub, EIGRP stub, HSRP, VRRP, and PIM stub routing for basic routed access deployments.

Q: Can this switch be stacked with other Cisco Catalyst models?
A: Yes, the WS-C2960XR-48FPD-I supports FlexStack-Plus technology and can stack with other Catalyst 2960-X and 2960-XR switches. Up to 8 switches can be stacked together with 80 Gbps of stacking bandwidth using optional FlexStack-Plus modules.

Q: How many devices can receive full 30W PoE+ power simultaneously?
A: With the 740W PoE budget, the switch can power up to 24 ports at the maximum 30W PoE+ (IEEE 802.3at) rating, or all 48 ports at the standard 15.4W PoE (IEEE 802.3af) rating. Dynamic power management allocates power based on connected device requirements.

Q: Does this switch support redundant power supplies?
A: Yes, the Catalyst 2960-XR series features field-replaceable modular power supplies. The switch ships with one 1025W power supply by default, and a second power supply can be added for redundancy and increased PoE capacity.

Q: What is the difference between IP Lite and LAN Base licensing?
A: IP Lite, included with the WS-C2960XR-48FPD-I, provides basic Layer 3 routing capabilities suitable for routed access deployments. It supports static routing and stub dynamic routing protocols. LAN Base is limited to Layer 2 switching features only and is not available on the 2960-XR series.
