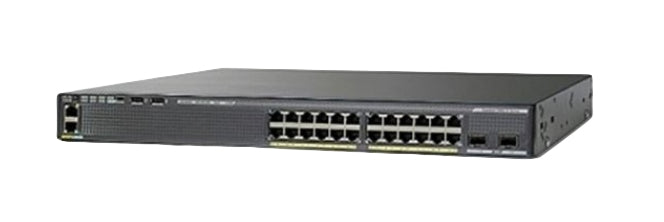

• Cisco WS-C2960XR-24TS-I 24-port Gigabit Ethernet switch with SFP uplinks
1 1

Cisco

Cisco WS-C2960XR-24TS-I | Catalyst 2960-XR 24-Port Gigabit Switch, 4x 1G SFP, IP Lite

WS-C2960XR-24TS-I

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-XR is a fixed-configuration, stackable Layer 2/Layer 3 Gigabit access switch built for enterprise and branch-office access layers. It suits sites that need Gigabit desktop connectivity, routed access using static routing, RIP and OSPF, and stacking, without any PoE requirement.

This non-PoE model provides 24 x 10/100/1000 Ethernet ports and 4 x 1G SFP uplinks, with 108 Gbps of forwarding bandwidth, 216 Gbps of switching bandwidth and a forwarding rate of 71.4 Mpps. It runs the IP Lite feature set, which is fixed by the SKU and set to a single universal Cisco IOS image. It has a 250W AC power supply with auto-ranging 100 to 240 VAC input, and a second power supply can be added for redundancy. Measured power consumption is roughly 29 to 36 W.

FlexStack-Plus stacking uses CAB-STK-E-0.5M, CAB-STK-E-1M and CAB-STK-E-3M cables, and FlexStack-Extended is available with the hybrid module. The 1U chassis has a USB Type B and RJ-45 Ethernet console, a USB Type A storage port and a dedicated 10/100 management port.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 3 routed access with static routing, RIP and OSPF through the IP Lite feature set
- FlexStack-Plus and FlexStack-Extended stacking capability
- Redundant hot-swappable power supply support with built-in fans
- Management through the Web UI, Cisco Prime, Network Plug and Play and Cisco DNA Center
- Full (Flexible) NetFlow and DNS-AS for traffic visibility
- Security including 802.1X, BPDU Guard, Spanning Tree Root Guard and IGMP filtering
- QoS including cross-stack QoS, CIR and rate limiting
- Cisco Catalyst SmartOperations tools for deployment, monitoring and troubleshooting

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ethernet ports: 24 x 10/100/1000
- Uplink interfaces: 4 x 1G SFP
- Cisco IOS feature set: IP Lite
- PoE: None (non-PoE)
- Default power supply: PWR-C2-250WAC (250W AC)
- Forwarding bandwidth: 108 Gbps
- Switching bandwidth: 216 Gbps (full-duplex)
- Forwarding rate (64-byte L3 packets): 71.4 Mpps
- Flash memory: 128 MB
- DRAM: 512 MB
- Console ports: USB Type B and RJ-45 Ethernet
- Storage interface: USB Type A
- Management interface: 10/100 Mbps Ethernet (RJ-45)
- Maximum active VLANs: 1023
- Jumbo frame: 9216 bytes
- Unicast MAC addresses (default template): 16,000
- Input voltage: 100 to 240 VAC auto-ranging, 50 to 60 Hz
- Measured power consumption: 28.8 W at 0% traffic, 36.2 W at 100% traffic
- Dimensions (H x D x W): 4.45 x 40.8 x 44.5 cm
- Weight: 5.9 kg
- Operating temperature: -5 to 45 C (up to 1500 m)
- Operating relative humidity: 10% to 95% non-condensing
- MTBF: 557,320 hours

FAQs

Q: Does this switch need a separate licence for Layer 3 routing?
A: No. The IP Lite feature level is fixed by the SKU and runs on the universal Cisco IOS image. No separate subscription is stated in the datasheet.

Q: Can the IP Lite feature set be changed on this switch?
A: No. The feature set is set per model, and LAN Base cannot be upgraded to IP Lite, so this SKU is the choice when you need IP Lite.

Q: Does this model provide PoE?
A: No. This is a non-PoE model with 24 Gigabit ports, so it suits wired desktops and uplinks rather than powering phones or access points.

Q: What power supply does it use?
A: It uses the PWR-C2-250WAC 250W AC supply with 100 to 240 VAC auto-ranging input. A second power supply can be added for redundancy.

Q: How do I stack this switch?
A: Use FlexStack-Plus with CAB-STK-E-0.5M, CAB-STK-E-1M or CAB-STK-E-3M cables. FlexStack-Extended is supported with the hybrid module.

Q: How does it differ from the PoE 2960-XR models?
A: This SKU has no PoE budget and uses the 250W AC power supply, while it keeps the same 24 Gigabit ports, 4 x 1G SFP uplinks and IP Lite feature set.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
