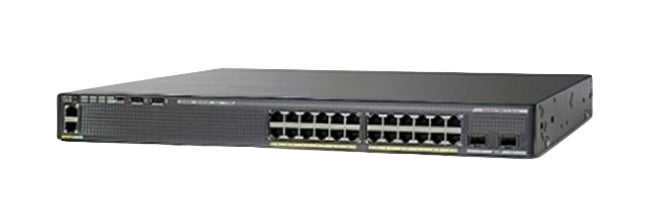

• Cisco WS-C2960XR-24TD-I 24-port Gigabit Ethernet switch
1 1

Cisco

Cisco WS-C2960XR-24TD-I | Catalyst 2960-XR 24-Port Gigabit Switch, 2x 10G SFP+, IP Lite

WS-C2960XR-24TD-I

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-XR WS-C2960XR-24TD-I is a fixed-configuration, stackable Layer 2/Layer 3 Gigabit Ethernet access switch built for campus and branch wiring closets. It suits deployments that need routed access and stacking but no PoE, as this is a data-only model running the IP Lite feature set.

The switch provides 24 x 10/100/1000 Ethernet ports and 2 x 10G SFP+ uplinks. Forwarding bandwidth is 108 Gbps, switching bandwidth is 216 Gbps full duplex, and forwarding rate is 95.2 Mpps for 64-byte Layer 3 packets. It runs from a single 250W AC power supply (PWR-C2-250WAC) with 90 to 264 VAC auto-ranging input, and measured draw is about 29 W at idle and 38 W at full traffic. The IP Lite image adds Layer 3 routed access, including OSPF, RIP and static routing, and is tied to the model.

FlexStack-Plus and FlexStack-Extended stacking let up to 8 members act as one switch. FlexStack-Plus offers 80 Gbps of stack bandwidth, and stacking cables are CAB-STK-E-0.5M, -1M and -3M. The SFP+ uplinks accept Cisco SFP and SFP+ transceivers.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fixed-configuration stackable Gigabit Ethernet access switch running Cisco IOS
- IP Lite feature set adds Layer 3 routed access (OSPF, RIP, static routing) on top of Layer 2 features
- FlexStack-Plus and FlexStack-Extended stacking, up to 8 members acting as a single switch
- Full Flexible NetFlow and DNS-AS visibility
- Security features including 802.1X, SPAN and BPDU Guard
- Energy efficiency with Switch Hibernation Mode, IEEE 802.3az EEE and Cisco EnergyWise
- Cisco Smart Install for minimal-touch deployment
- Management with Cisco Prime, Network Plug and Play and Cisco DNA Center

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- 10/100/1000 Ethernet ports: 24 (data only, no PoE)
- Uplink interfaces: 2 x 10G SFP+
- Cisco IOS software image: IP Lite
- Forwarding bandwidth: 108 Gbps
- Switching bandwidth: 216 Gbps (full duplex)
- Forwarding rate (64-byte Layer 3 packets): 95.2 Mpps
- Stacking: FlexStack-Plus and FlexStack-Extended, up to 8 members
- FlexStack-Plus stack bandwidth: 80 Gbps
- Power supply: 250W AC (PWR-C2-250WAC)
- Input voltage: 90 to 264 VAC auto-ranging, 50 to 60 Hz
- Measured power consumption (0% / 10% / 100% traffic): 29.3 / 37.2 / 38.1 W
- Flash memory: 128 MB
- DRAM: 512 MB
- CPU: APM86392 600 MHz dual core
- Console ports: USB (Type B), Ethernet (RJ-45)
- Storage interface: USB (Type A)
- Management interface: 10/100 Mbps Ethernet (RJ-45)
- Maximum active VLANs: 1023
- VLAN IDs available: 4096
- Jumbo frame: 9216 bytes
- Dimensions (H x D x W): 4.45 x 40.8 x 44.5 cm (1RU)
- Weight: 5.9 kg
- Operating temperature: -5 to 45 C
- Storage temperature: -25 to 70 C
- Operating relative humidity: 10% to 95% noncondensing
- MTBF: 561,890 hours

FAQs

Q: Does this switch need a software licence?
A: No separate licence is required to operate it. The IP Lite feature set is tied to the model and cannot be upgraded. Full Flexible NetFlow requires a Cisco ONE Foundation or Cisco DNA Essentials licence per switch.

Q: Does it provide PoE?
A: No. This is a data-only model with no PoE budget. Powered devices need a separate power source or a PoE-capable switch.

Q: What power supply does it use and can it be made redundant?
A: It uses a 250W AC power supply (PWR-C2-250WAC) with 90 to 264 VAC auto-ranging input. A second PWR-C2-250WAC can be added for switch power redundancy.

Q: What can it be stacked with?
A: It stacks with other 2960-XR IP Lite switches using FlexStack-Plus (80 Gbps) or FlexStack-Extended (40 Gbps, hybrid module), up to 8 members. FlexStack-Extended cannot be mixed with 2960-X LAN Base. Stacking cables are CAB-STK-E-0.5M, -1M and -3M.

Q: What optics do the SFP+ uplinks accept?
A: The two SFP+ uplink ports take Cisco SFP and SFP+ transceivers, giving 1G or 10G fibre or copper uplinks depending on the module fitted.

Q: What is the suggested replacement for this model?
A: The Catalyst 9200-24T is the suggested migration path now that the 2960-XR range is end-of-sale.
