• Cisco WS-C2960XR-24PS-I 24-port PoE+ switch with 1G uplinks
1 1

Cisco

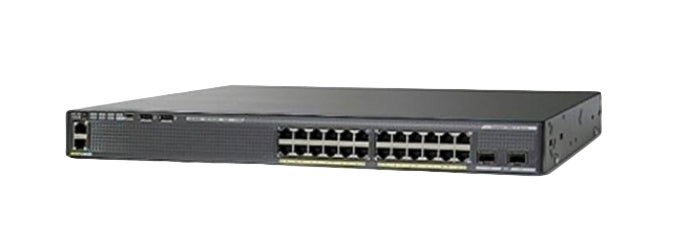

Cisco WS-C2960XR-24PS-I | Catalyst 2960-XR 24-Port PoE+ Switch, 370W, IP Lite

WS-C2960XR-24PS-I

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-XR is a fixed-configuration, stackable Layer 2/3 Gigabit Ethernet access switch for campus and branch networks. This 24-port PoE+ model runs the Cisco IOS IP Lite feature set and suits sites that need to power IP phones, wireless access points and other PoE endpoints from the access layer, with routed access and optional power redundancy.

It provides 24 x 10/100/1000 PoE/PoE+ ports and 4 x 1G SFP uplinks, with 370W of available PoE power. That budget supports up to 12 ports at 30W (802.3at) or 24 ports at 15.4W (802.3af). Forwarding bandwidth is 108 Gbps, switching bandwidth is 216 Gbps and the forwarding rate is 71.4 Mpps. A field-replaceable 640W AC power supply (PWR-C2-640WAC) is fitted as standard, and the IP Lite feature set is fixed per model and cannot be upgraded to a different feature level.

FlexStack-Plus and FlexStack-Extended stacking are available through optional modules (C2960X-STACK, C2960X-FIBER-STK or C2960X-HYBRID-STK), allowing up to 8 switches to stack with other 2960-XR IP Lite switches. A second PWR-C2-640WAC supply can be added to retain the 370W PoE budget if one supply fails.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IEEE 802.3af PoE and 802.3at PoE+ (up to 30W per port) with intelligent power management and Perpetual PoE
- Layer 3 routed access with OSPF, static routing, RIP, EIGRP Stub, PIM, PBR, HSRP and VRRP
- FlexStack-Plus and FlexStack-Extended stacking with a single management IP and cross-stack EtherChannel and QoS
- Security including 802.1X, Cisco TrustSec, Dynamic ARP Inspection, IP Source Guard, port security and private VLANs
- Enhanced QoS with up to 8 egress queues per port and Auto-QoS
- Flexible NetFlow and NetFlow Lite for application visibility
- Management via web UI, CLI, SNMP, Cisco Prime, Network Plug and Play and Cisco DNA Center
- Energy efficiency through IEEE 802.3az EEE, Switch Hibernation Mode and Cisco EnergyWise

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ethernet ports: 24 x 10/100/1000 with PoE/PoE+
- Uplinks: 4 x 1G SFP
- Cisco IOS feature set: IP Lite
- Available PoE power: 370W (12 ports at 30W or 24 ports at 15.4W)
- Default power supply: PWR-C2-640WAC (field-replaceable)
- Input voltage: 90 to 264 VAC, 50 to 60 Hz
- Forwarding bandwidth: 108 Gbps
- Switching bandwidth: 216 Gbps
- Forwarding rate: 71.4 Mpps (64-byte Layer 3 packets)
- Flash memory: 128 MB
- DRAM: 512 MB
- CPU: APM86392 600 MHz dual core
- Console ports: USB (Type B), Ethernet (RJ-45)
- Management interface: 10/100 Mbps Ethernet (RJ-45)
- Maximum active VLANs: 1023
- Jumbo frame: 9216 bytes
- Stack bandwidth (FlexStack-Plus): 80 Gbps, up to 8 switches
- Dimensions (H x D x W): 4.45 x 40.8 x 44.5 cm
- Weight: 6.2 kg
- Operating temperature: -5 to 45 C up to 1500 m

FAQs

Q: Does this switch need a licence?
A: It ships with the Cisco IOS IP Lite feature set, which is fixed for this model. Full Flexible NetFlow, DNS-AS and Cisco DNA Center features require a term-based Cisco DNA Essentials licence.

Q: How many PoE+ devices can it power?
A: The 370W PoE budget supports up to 12 ports at 30W (802.3at) or 24 ports at 15.4W (802.3af).

Q: Can I add power redundancy?
A: Yes. A second field-replaceable PWR-C2-640WAC power supply can be added, and the 370W PoE budget is retained if one supply fails.

Q: What stacking options are supported?
A: Optional C2960X-STACK (FlexStack-Plus) or C2960X-FIBER-STK and C2960X-HYBRID-STK (FlexStack-Extended) modules allow up to 8 switches to stack. It stacks only with other 2960-XR IP Lite switches, using CAB-STK-E cables.

Q: Which rack-mount kits fit this switch?
A: The RCKMNT-1RU-2KX= and RCKMNT-REC-2KX= rack-mount kits are compatible.
