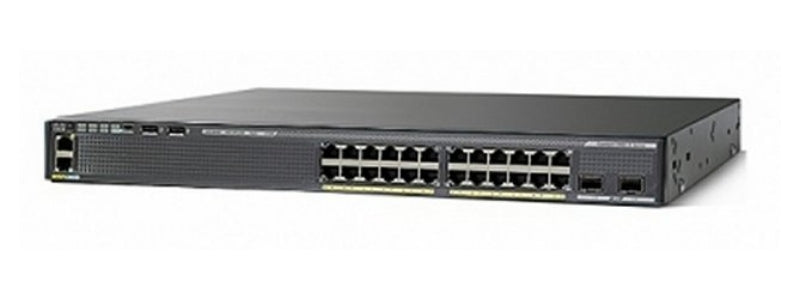

• Cisco WS-C2960XR-24PD-I 24-port PoE+ switch with 10G uplinks
1 1

Cisco

Cisco WS-C2960XR-24PD-I | Catalyst 2960-XR 24-Port PoE+ Switch, 370W, IP Lite

WS-C2960XR-24PD-I

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-XR is a fixed-configuration, stackable Gigabit Ethernet access switch built for enterprise campus and branch access layers. It suits sites that need routed access and power for IP phones, wireless access points and other PoE and PoE+ endpoints, with 10G uplinks toward the distribution layer.

This model provides 24 x 10/100/1000 PoE+ ports and 2 x 10G SFP+ uplinks. It delivers 370W of PoE budget from its field-replaceable PWR-C2-640WAC power supply, enough for up to 12 ports of PoE+ (802.3at, 30W) or all 24 ports at PoE (802.3af, 15.4W). Forwarding bandwidth is 108 Gbps with 216 Gbps switching bandwidth and a 95.2 Mpps forwarding rate. It runs the Cisco IOS IP Lite feature set, which is fixed to this model, so the routed access feature set is the same across every unit. Cisco DNA Essentials term licences are required for Full Flexible NetFlow, DNS-AS, Cisco DNA Center and Network Plug and Play.

For stacking, the optional C2960X-STACK FlexStack-Plus module links up to 8 2960-XR IP Lite switches, and FlexStack-Extended modules are also available. A second PWR-C2-640WAC can be added for power redundancy, and SFP and SFP+ optics follow Cisco's Transceiver Compatibility matrix.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Perpetual PoE maintains PoE+ power during a switch reload
- IEEE 802.3af PoE and 802.3at PoE+ with intelligent power management
- Layer 3 routed access with OSPF, static routing, RIP, RIPng, EIGRP Stub, PBR, PIM, HSRP and VRRP
- Security with 802.1X, Cisco TrustSec, IPv6 First-Hop Security, DAI, IP Source Guard, Private VLANs and ACLs
- QoS with eight egress queues, strict priority queuing, SRR scheduling and Auto-QoS
- Management via web UI, CLI, SNMP, Cisco DNA Center and Network Plug and Play
- Smart Install, Auto SmartPorts, AutoConfig and Smart Call Home for simpler deployment
- Energy efficiency with IEEE 802.3az EEE, Switch Hibernation Mode and Cisco EnergyWise

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ethernet ports: 24 x 10/100/1000 with PoE+
- Uplink interfaces: 2 x 10G SFP+
- Cisco IOS feature set: IP Lite
- Available PoE power: 370W
- Default power supply: PWR-C2-640WAC
- PoE+ (802.3at): up to 12 ports at 30W
- PoE (802.3af): up to 24 ports at 15.4W
- Forwarding bandwidth: 108 Gbps
- Switching bandwidth: 216 Gbps (full-duplex)
- Forwarding rate (64-byte L3 packets): 95.2 Mpps
- Maximum active VLANs: 1023
- VLAN IDs available: 4096
- Unicast MAC addresses: 16,000 (32,000 in VLAN SDM template)
- Jumbo frame: 9216 bytes (L3 MTU 9198 bytes)
- Flash memory: 128 MB
- DRAM: 512 MB
- CPU: APM86392 600 MHz dual core
- Console ports: USB (Type B), Ethernet (RJ-45)
- Stacking: FlexStack-Plus up to 8 members, 80 Gbps stack bandwidth
- Dimensions (H x D x W): 4.45 x 40.8 x 44.5 cm
- Weight: 6.2 kg
- Operating temperature (up to 1500 m): -5 to 45 C
- Input voltage: 90 to 264 VAC, 50 to 60 Hz
- MTBF: 322,740 hours

FAQs

Q: Does this switch need a licence?
A: It ships with the Cisco IOS IP Lite feature set, which is fixed to this model and cannot be upgraded. Cisco DNA Essentials term licences are needed for Full Flexible NetFlow, DNS-AS, Cisco DNA Center and Network Plug and Play.

Q: How much PoE power does it provide?
A: The default PWR-C2-640WAC supply provides 370W of PoE budget. That covers up to 12 ports of PoE+ at 30W each, or all 24 ports at PoE (802.3af) up to 15.4W each.

Q: Can I add power redundancy?
A: Yes. A second PWR-C2-640WAC can be installed for redundancy, which maintains the 370W PoE budget if one supply fails.

Q: Can it be stacked?
A: Yes, with the optional C2960X-STACK FlexStack-Plus module it stacks up to 8 members. Stacking is only with other 2960-XR IP Lite switches. FlexStack-Extended modules are also available.

Q: What is the difference from the other 2960-XR 24-port PoE+ SKUs?
A: This SKU has 2 x 10G SFP+ uplinks, 370W of PoE+ budget and the IP Lite feature set.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
