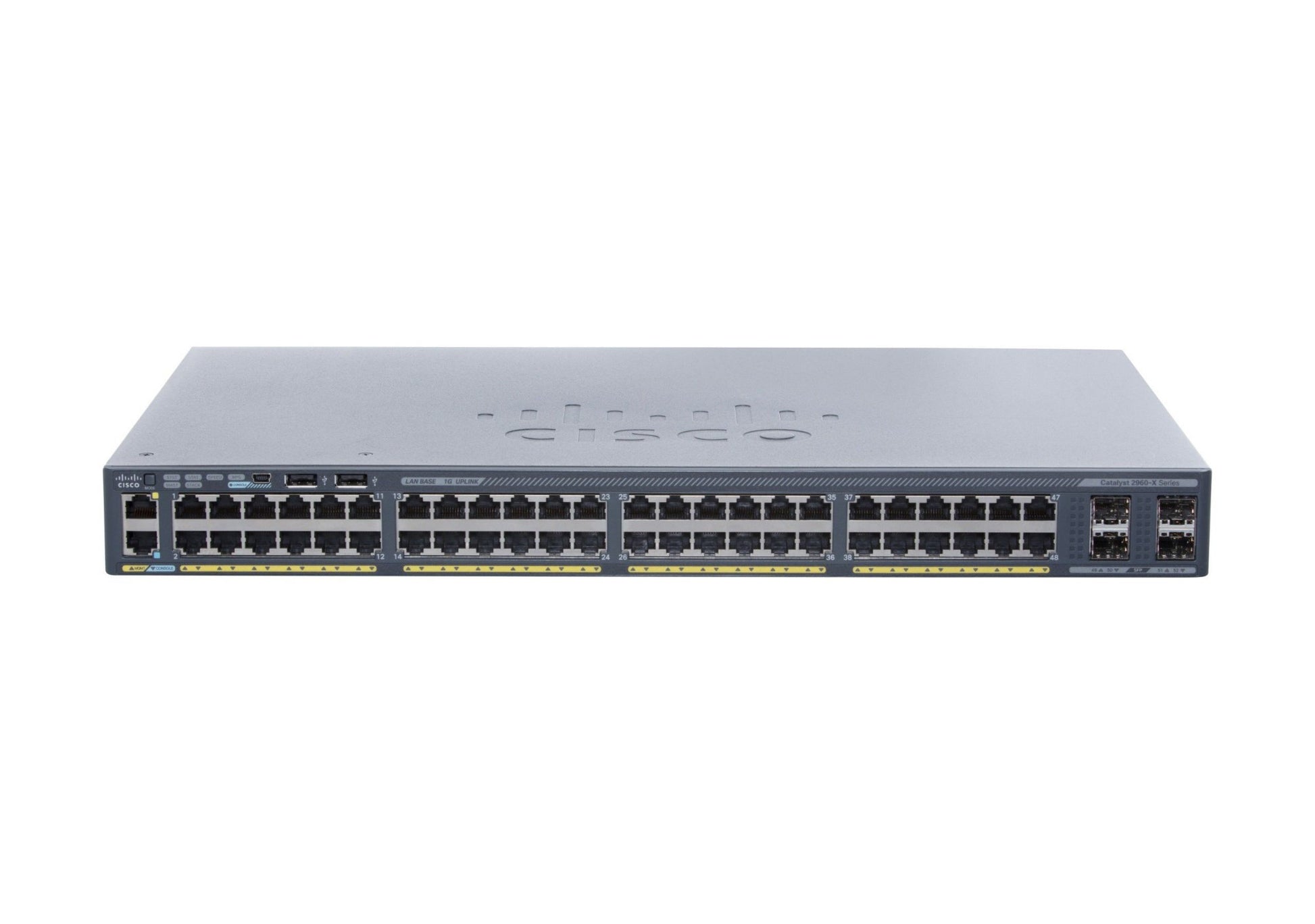

• Cisco WS-C2960X-48TS-L 48-port Gigabit Ethernet switch
1 1

Cisco

Cisco WS-C2960X-48TS-L | Catalyst 2960-X 48-Port Gigabit Switch, 4x 1G SFP, LAN Base

WS-C2960X-48TS-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-X 48-port Gigabit switch is a fixed-configuration, stackable access switch for enterprise campus and branch wiring closets. It suits wired endpoints that do not need PoE, and it can be operated with Cisco DNA Center, Cisco Prime or Network Plug and Play.

This non-PoE model provides 48 x 10/100/1000 Ethernet ports and 4 x 1G SFP uplinks, with 108 Gbps of forwarding bandwidth and a forwarding rate of 107.1 Mpps on 64-byte packets. It runs the Cisco IOS LAN Base feature set, which covers Layer 2 switching and basic Layer 3 routing, and supports up to 1023 active VLANs. Power comes from a single fixed AC supply, with a measured weighted average draw of about 49.5 W. The 1 RU chassis can be stacked with up to 8 switches using an optional FlexStack-Plus or FlexStack-Extended module.

The SFP uplinks accept Cisco-supported SFP modules. The LAN Base image can be stacked with other 2960-X LAN Base switches, and with 2960-S/SF LAN Base switches at a reduced stack bandwidth of 40 Gbps. An optional Cisco RPS 2300 provides external power redundancy.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Line-rate Gigabit Ethernet forwarding on all 48 access ports
- Stackable with FlexStack-Plus (80 Gbps stack bandwidth) or FlexStack-Extended (40 Gbps, long-distance stacking)
- Layer 3 features including static routing, RIP and OSPF for routed access
- Security features including 802.1X, Cisco TrustSec, Dynamic ARP Inspection, IP Source Guard, BPDU Guard and IPv6 First-Hop Security
- QoS with up to 8 egress queues per port, SRR scheduling and Auto-QoS
- Management via web UI, CLI, SNMP, Cisco Prime, Cisco DNA Center and Network Plug and Play
- SmartOperations tools including Smart Install, Auto SmartPorts and Smart Call Home
- Energy efficiency with Switch Hibernation Mode, IEEE 802.3az EEE and Cisco EnergyWise

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ethernet ports: 48 x 10/100/1000
- Uplink ports: 4 x 1G SFP
- Software feature set: Cisco IOS LAN Base
- PoE: None (non-PoE model)
- Forwarding bandwidth: 108 Gbps
- Switching bandwidth (full-duplex): 216 Gbps
- Forwarding rate (64-byte packets): 107.1 Mpps
- Stacking: optional FlexStack-Plus or FlexStack-Extended, up to 8 switches
- Flash memory: 128 MB
- DRAM: 512 MB
- CPU: APM86392 600 MHz dual core
- Console ports: USB (Type B) and Ethernet (RJ-45)
- Maximum active VLANs: 1023
- Unicast MAC addresses: 16,000
- Jumbo frame: 9216 bytes
- Dimensions (H x D x W): 4.5 x 27.9 x 44.5 cm (1.75 x 11.0 x 17.5 in)
- Weight: 4.2 kg (9.4 lb)
- Input voltage: 100 to 240 VAC auto-ranging, 50 to 60 Hz
- Power consumption: 49.5 W weighted average
- Operating temperature up to 1500 m: -5 to 45 C
- Storage temperature: -25 to 70 C
- MTBF: 442,690 hours

FAQs

Q: Does this switch provide PoE?
A: No. This is a non-PoE model with 48 x 10/100/1000 ports, so it suits endpoints that are powered separately. PoE-capable endpoints need a PoE variant of the 2960-X.

Q: What licensing does it use?
A: It runs the Cisco IOS LAN Base feature set, which cannot be upgraded to IP Lite. Optional term-based Cisco DNA Essentials licences are needed for Full Flexible NetFlow, DNS-AS, Cisco DNA Center features and Network Plug and Play.

Q: Can it be stacked, and with which switches?
A: Yes, with an optional FlexStack-Plus module (C2960X-STACK) or FlexStack-Extended module, for up to 8 switches. It stacks with other 2960-X LAN Base switches, and with 2960-S/SF LAN Base switches at 40 Gbps stack bandwidth. It cannot be mixed with 2960-XR IP Lite.

Q: What can I use in the SFP uplink ports?
A: The 4 x 1G SFP ports accept Cisco-supported SFP modules, listed in the Cisco Transceiver Compatibility matrix.

Q: Does it support power redundancy?
A: It has a single fixed internal AC power supply (100 to 240 VAC auto-ranging). External power redundancy is available with the optional Cisco RPS 2300 (PWR-RPS2300).

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
