• Cisco WS-C2960X-48TD-L 48-port Gigabit switch with 2x 10G SFP+ uplinks
1 1

Cisco

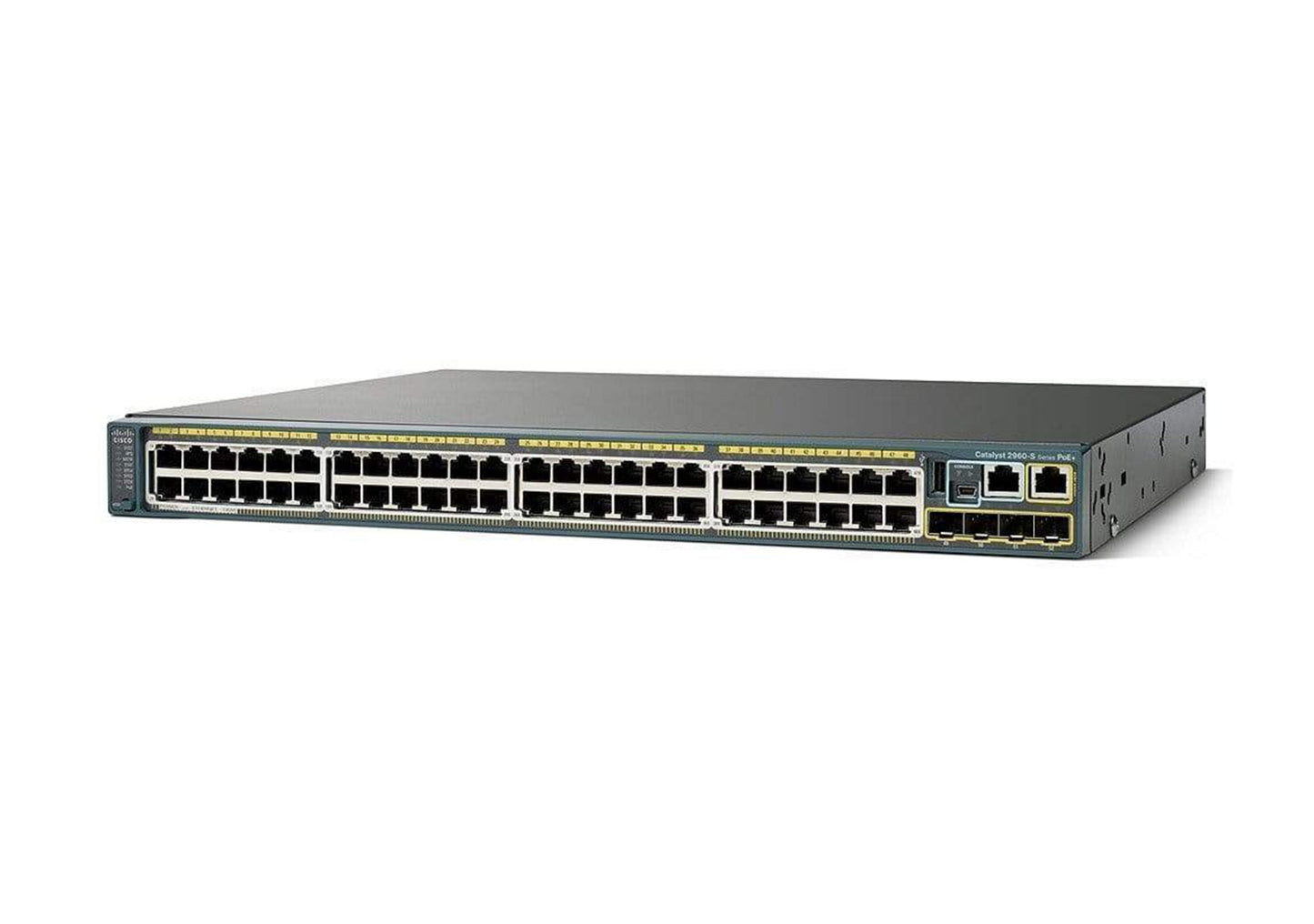

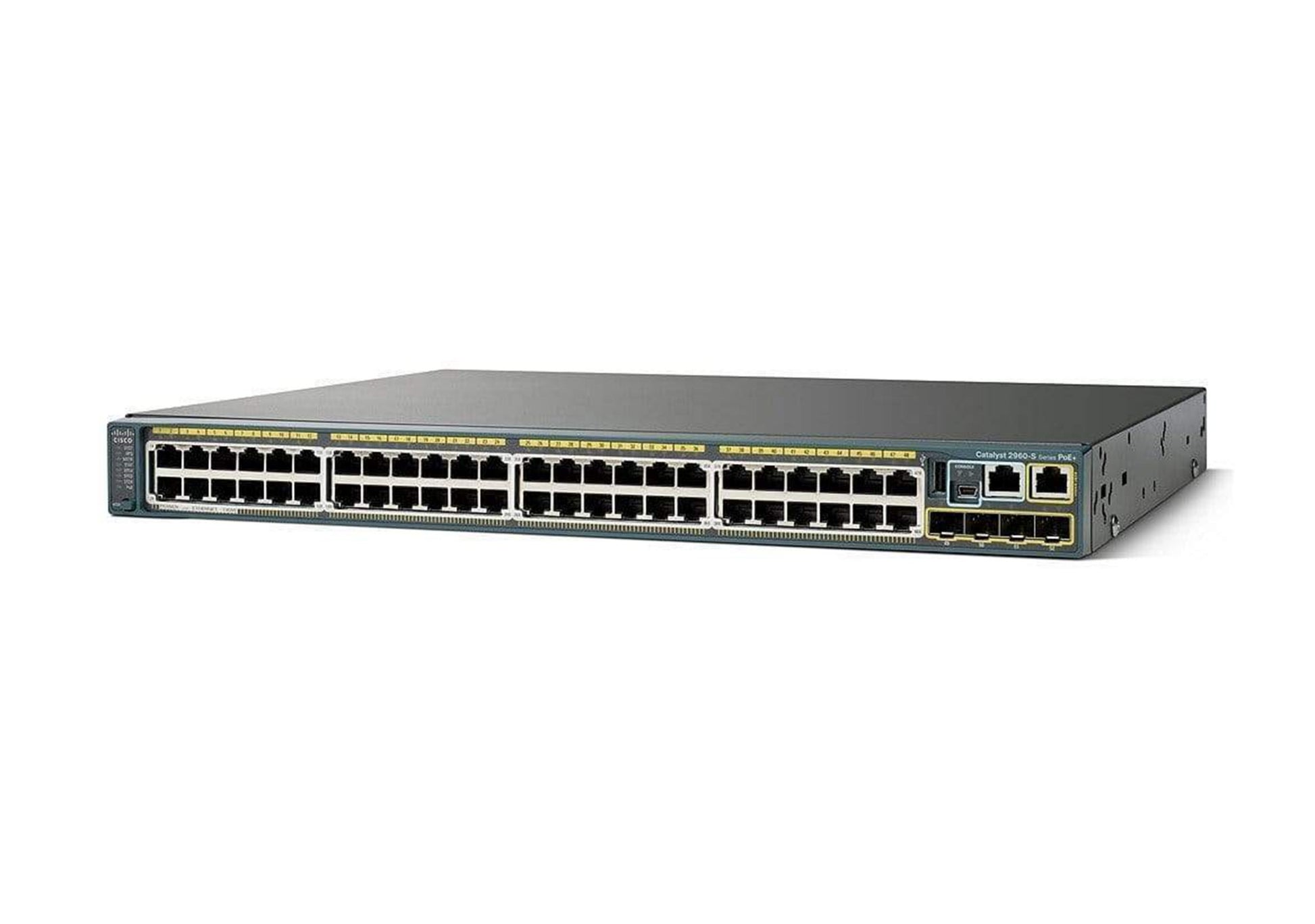

Cisco WS-C2960X-48TD-L | Catalyst 2960-X 48-Port Gigabit Switch, 2x 10G SFP+, LAN Base

WS-C2960X-48TD-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-X WS-C2960X-48TD-L is a fixed-configuration, stackable access switch with 48 x 10/100/1000 Ethernet ports and 2 x 10G SFP+ uplinks, running the Cisco IOS LAN Base feature set. It is a non-PoE model aimed at enterprise campus and branch access layers where wired endpoints do not need Power over Ethernet.

A forwarding bandwidth of 108 Gbps, switching bandwidth of 216 Gbps and a forwarding rate of 130.9 Mpps keep the access layer moving, while the two SFP+ uplinks connect to distribution or core at 10G. The switch carries 128 MB of flash, 512 MB of DRAM and supports 1023 active VLANs. LAN Base is tied to this model and cannot be upgraded to IP Lite. Power draw is modest, from 32.9 W idle to 47.8 W at full traffic, from a single fixed internal AC supply.

For larger wiring closets, an optional FlexStack-Plus module allows up to eight switches to be stacked with 80 Gbps of stack bandwidth, and FlexStack-Extended modules support long-distance stacking. Rack-mount kits RCKMNT-1RU-2KX= and RCKMNT-REC-2KX= suit the 1RU chassis, and an optional external Cisco RPS 2300 provides redundant power.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Stackable Gigabit access switching for campus and branch
- Cisco IOS LAN Base with Layer 2 and routed access features including static routing, RIP and OSPF for routed access
- FlexStack-Plus stacking of up to eight switches with 80 Gbps stack bandwidth, plus FlexStack-Extended for long-distance stacking
- Management via CLI, web UI, SNMP, Cisco DNA Center, Cisco Prime Infrastructure and Network Plug and Play
- Security including 802.1X, Cisco TrustSec, private VLANs, DAI, IP Source Guard, port security and SSH/SNMPv3
- Enhanced QoS with up to eight egress queues per port, Auto-QoS and cross-stack QoS
- Flexible NetFlow, NetFlow Lite and DNS-AS for application visibility
- Energy efficiency through Switch Hibernation Mode, IEEE 802.3az EEE and Cisco EnergyWise

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Model: WS-C2960X-48TD-L
- 10/100/1000 Ethernet ports: 48
- Uplink interfaces: 2 x 10G SFP+
- Software feature set: Cisco IOS LAN Base
- PoE: None (non-PoE)
- Forwarding bandwidth: 108 Gbps
- Switching bandwidth (full-duplex): 216 Gbps
- Forwarding rate (64-byte packets): 130.9 Mpps
- Flash memory: 128 MB
- DRAM: 512 MB
- CPU: APM86392 600 MHz dual core
- Console ports: USB (Type B), Ethernet (RJ-45)
- Management interface: 10/100 Mbps Ethernet (RJ-45)
- Maximum active VLANs: 1023
- VLAN IDs available: 4096
- Unicast MAC addresses: 16,000
- Jumbo frame: 9216 bytes
- Input voltage: 100 to 240 VAC, 50 to 60 Hz
- Power consumption: 32.9 W idle, 47.8 W at 100% traffic
- Dimensions (H x D x W): 4.5 x 27.9 x 44.5 cm (1RU)
- Weight: 4.3 kg
- Operating temperature (up to 1500 m): -5 to 45 C
- Storage temperature: -25 to 70 C
- Relative humidity: 10% to 95% noncondensing
- MTBF: 445,460 hours

FAQs

Q: Does this switch provide PoE?
A: No. The WS-C2960X-48TD-L is a non-PoE model with no PoE power budget, so it suits wired endpoints that do not need Power over Ethernet.

Q: Which licence does it run and can it be upgraded?
A: It runs the Cisco IOS LAN Base feature set, which is tied to this model and cannot be upgraded to IP Lite. Full Flexible NetFlow, DNS-AS and Cisco DNA Center features require a Cisco DNA Essentials term licence or a Cisco ONE Foundation licence.

Q: How do I stack this switch?
A: Stacking uses the optional C2960X-STACK module for FlexStack-Plus, or C2960X-FIBER-STK or C2960X-HYBRID-STK for FlexStack-Extended, with CAB-STK-E-0.5M, 1M or 3M cables. Up to eight switches can be stacked.

Q: Can it stack with 2960-S or 2960-XR switches?
A: FlexStack-Plus is backward compatible with 2960-S and 2960-SF LAN Base switches, but a mixed stack is limited to 40 Gbps and 4 members. A 2960-X LAN Base switch cannot stack with 2960-XR IP Lite models.

Q: Can it use a redundant power supply?
A: It has a single fixed internal AC power supply. An optional external Cisco RPS 2300 with the C3K-PWR-750WAC= supply provides power redundancy.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
