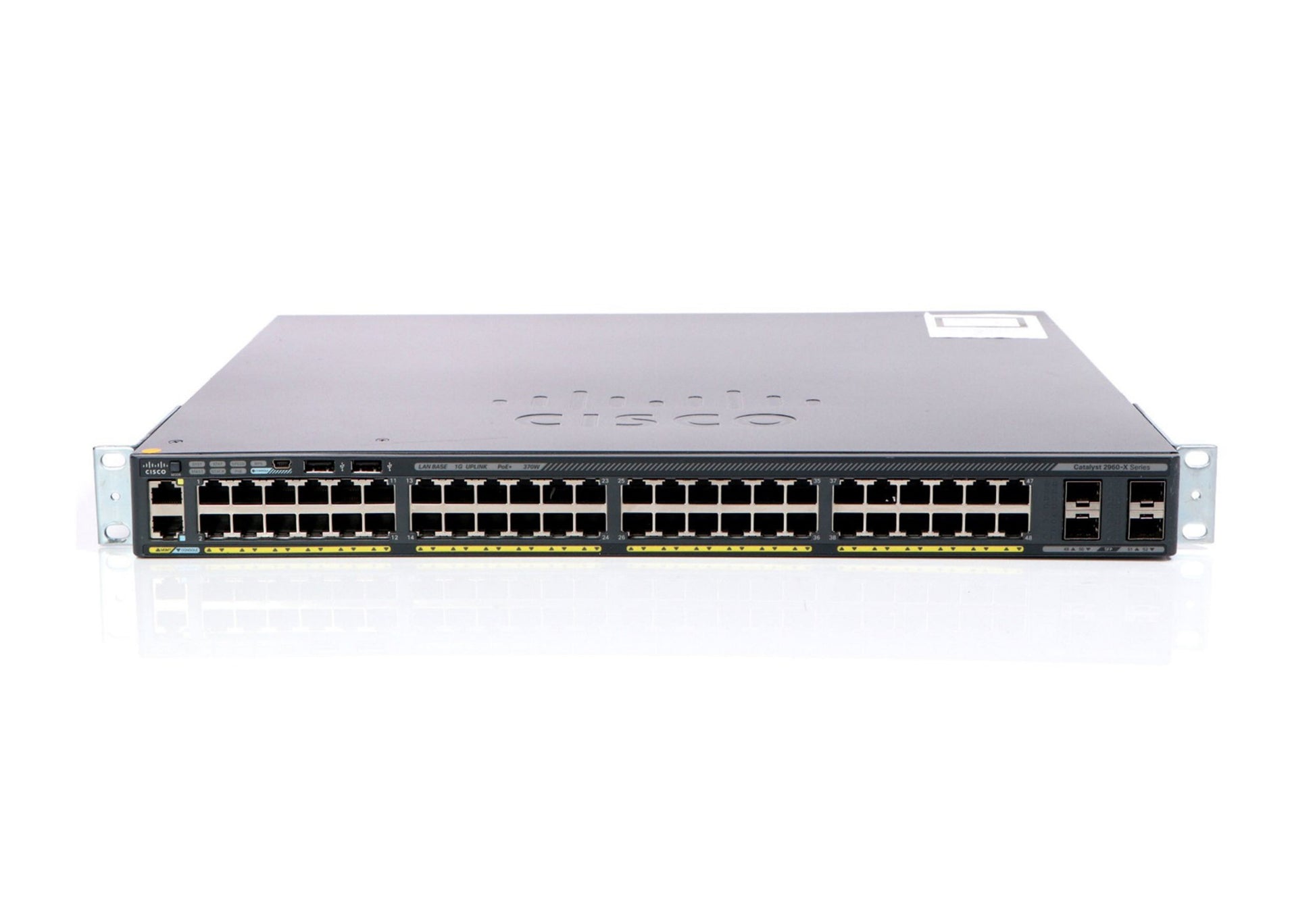

• Cisco WS-C2960X-48LPS-L 48-port Gigabit Ethernet PoE+ switch
1 1

Cisco

Cisco WS-C2960X-48LPS-L | Catalyst 2960-X 48-Port PoE+ Switch, 370W, LAN Base

WS-C2960X-48LPS-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-X WS-C2960X-48LPS-L is a fixed-configuration, stackable Gigabit Ethernet access switch built for enterprise campus and branch networks. It powers Cisco IP phones, Aironet wireless access points and other PoE and PoE+ endpoints, including IoT and medical devices that need Perpetual PoE, while delivering Layer 2 and limited Layer 3 services.

This model provides 48 10/100/1000 PoE+ ports with a 370W PoE budget, enough for 12 ports at 30W PoE+ or 24 ports at 15.4W PoE. Four 1G SFP uplinks handle upstream connections. Forwarding bandwidth is 108 Gbps with 216 Gbps switching bandwidth and a forwarding rate of 107.1 Mpps. It runs the Cisco IOS LAN Base feature set, which is tied to the model and cannot be upgraded to IP Lite. A single fixed internal AC power supply covers 100 to 240 VAC.

Stacking is available through optional modules: C2960X-STACK for FlexStack-Plus, or C2960X-FIBER-STK and C2960X-HYBRID-STK for FlexStack-Extended. Redundant power is supported through the Cisco RPS 2300.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Perpetual PoE maintains PoE+ power during a switch reload
- Intelligent PoE+ with dynamic power allocation (IEEE 802.3af and 802.3at)
- Stacks up to 8 switches with FlexStack-Plus (80 Gbps) or FlexStack-Extended (40 Gbps)
- Security: 802.1X, Cisco TrustSec, IPv6 First-Hop Security, Port Security, DAI, IP Source Guard, TACACS+ and RADIUS
- QoS with 8 egress queues per port, SRR scheduling, Auto-QoS and cross-stack QoS
- Layer 3 features: static routing, RIP, OSPF for routed access, PIM stub and policy-based routing
- Management via CLI, web UI, SNMP, Cisco Prime, Network Plug and Play and Cisco DNA Center
- Energy efficiency with IEEE 802.3az EEE, Switch Hibernation Mode and Cisco EnergyWise

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Model: WS-C2960X-48LPS-L
- 10/100/1000 Ethernet ports: 48 (PoE+)
- Uplink interfaces: 4 x 1G SFP
- Cisco IOS software image: LAN Base
- Available PoE power: 370W
- PoE+ (802.3at) capacity: up to 12 ports at 30W
- PoE (802.3af) capacity: up to 24 ports at 15.4W
- Forwarding bandwidth: 108 Gbps
- Switching bandwidth: 216 Gbps (full duplex)
- Forwarding rate (64-byte packets): 107.1 Mpps
- Maximum active VLANs: 1023
- Jumbo frame: 9216 bytes
- Flash memory: 128 MB
- DRAM: 512 MB
- Unicast MAC addresses: 16,000
- Console ports: USB (Type B), Ethernet (RJ-45)
- Management interface: 10/100 Mbps Ethernet (RJ-45)
- Input voltage: 100 to 240 VAC auto-ranging, 50-60 Hz
- Dimensions (H x D x W): 4.5 x 36.8 x 44.5 cm
- Weight: 5.8 kg
- Operating temperature (up to 1500 m): -5 to 45 C
- Operating humidity: 10% to 95% non-condensing
- Acoustic noise: 39 dB typical, 43 dB maximum

FAQs

Q: Does this switch need a licence?
A: It runs the Cisco IOS LAN Base feature set, which is tied to the model and cannot be upgraded to IP Lite. Optional Cisco DNA Essentials subscription licences are needed for Full Flexible NetFlow, DNS-AS and Cisco DNA Center features.

Q: How much PoE power does it provide?
A: It has a 370W PoE budget from a single internal power supply. That supports up to 12 ports at 30W PoE+ or 24 ports at 15.4W PoE.

Q: How do I stack this switch?
A: Stacking needs an optional module: C2960X-STACK for FlexStack-Plus, or C2960X-FIBER-STK or C2960X-HYBRID-STK for FlexStack-Extended. Stacking cables are CAB-STK-E-0.5M, 1M and 3M.

Q: Can I add redundant power?
A: Yes. The optional Cisco RPS 2300 (PWR-RPS2300) provides redundant power to this switch.

Q: How does it differ from other 48-port Catalyst 2960-X models?
A: This SKU has a 370W PoE budget, 4x 1G SFP uplinks and LAN Base. Other 48-port models differ in PoE budget, uplink type or feature set.
