Cisco

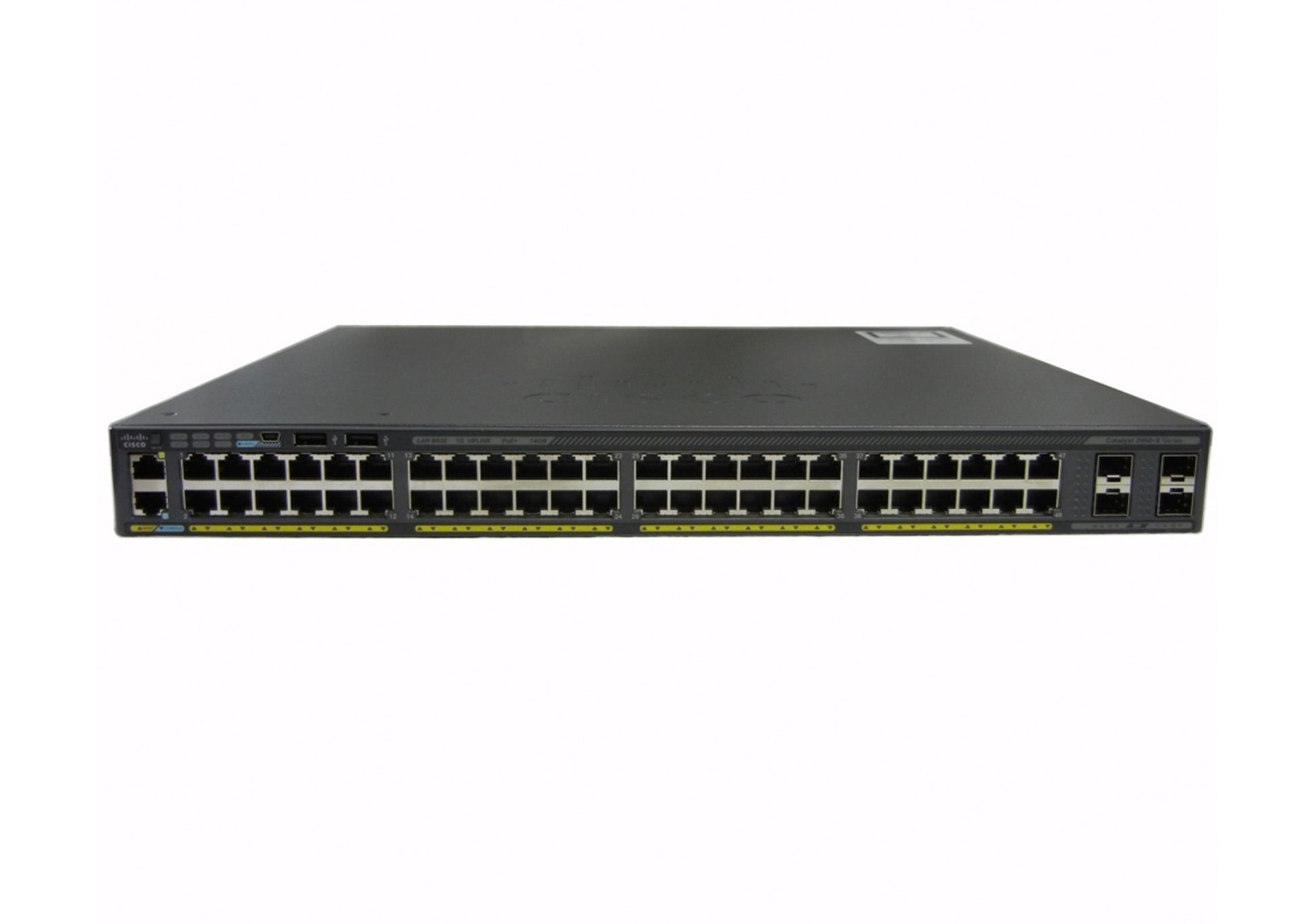

Cisco WS-C2960X-48FPS-L | Catalyst 2960-X 48-Port Gigabit PoE+ Switch, 740W, LAN Base

SKU:WS-C2960X-48FPS-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-X 48-port Gigabit PoE+ switch is a fixed-configuration access switch for enterprise campus and branch wiring closets. It powers IP phones, wireless access points and other PoE and PoE+ endpoints, with optional stacking for scalable deployments.

It provides 48 10/100/1000 Ethernet ports and 4 x 1G SFP uplink ports. The 740W PoE budget supports up to 24 ports of PoE+ at 30W or 48 ports of PoE at 15.4W. Forwarding bandwidth is 108 Gbps, switching bandwidth is 216 Gbps and the forwarding rate is 107.1 Mpps. It ships with the Cisco IOS LAN Base feature set, which is fixed to this model, and uses a single fixed internal AC power supply.

Optional FlexStack-Plus and FlexStack-Extended modules allow up to 8 switches to be stacked. Redundant power is available through an external Cisco RPS 2300, and Cisco SFP modules are supported for the uplinks.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Perpetual PoE keeps PoE+ power active during a switch reload
- Intelligent PoE+ with dynamic power allocation across ports
- FlexStack-Plus stacking at 80 Gbps or FlexStack-Extended for long-distance stacks
- Security features including 802.1X, Cisco TrustSec, Port Security, DAI, IP Source Guard and BPDU Guard
- QoS with up to 8 egress queues per port, strict priority queuing and Auto-QoS
- Layer 3 routed access with static routing, RIP, OSPF and policy-based routing
- Management via CLI, web UI, SNMP, Cisco Prime Infrastructure and Cisco DNA Center
- Energy efficiency through IEEE 802.3az EEE, Switch Hibernation Mode and Cisco EnergyWise

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ethernet ports: 48 x 10/100/1000
- Uplink ports: 4 x 1G SFP
- Software image: Cisco IOS LAN Base
- PoE budget: 740W
- PoE+ (IEEE 802.3at): up to 24 ports at 30W
- PoE (IEEE 802.3af): up to 48 ports at 15.4W
- Stacking: optional FlexStack-Plus / FlexStack-Extended, up to 8 members
- Forwarding bandwidth: 108 Gbps
- Switching bandwidth: 216 Gbps
- Forwarding rate: 107.1 Mpps (64-byte packets)
- Flash memory: 128 MB
- DRAM: 512 MB
- Console ports: USB (Type B), Ethernet (RJ-45)
- Management interface: 10/100 Mbps Ethernet (RJ-45)
- Maximum active VLANs: 1023
- Jumbo frame: 9216 bytes
- Dimensions (H x D x W): 4.5 x 36.8 x 44.5 cm
- Weight: 5.8 kg
- Input voltage: 100 to 240 VAC, 50 to 60 Hz
- Operating temperature: -5 to 45 C up to 1500 m
- MTBF: 232,610 hours

FAQs

Q: What licence does this switch ship with?
A: It ships with the Cisco IOS LAN Base feature set, which is fixed to this model and cannot be upgraded to IP Lite. Functions such as Full Flexible NetFlow, Network Plug and Play and Cisco DNA Center require a Cisco DNA Essentials term licence.

Q: How many devices can it power over PoE?
A: The 740W PoE budget supports up to 24 ports of PoE+ at 30W each, or up to 48 ports of PoE at 15.4W each.

Q: Can it be stacked, and with which switches?
A: Yes, with the optional FlexStack-Plus module (C2960X-STACK) or FlexStack-Extended modules, up to 8 switches can be stacked. It stacks with other 2960-X LAN Base switches, but not with 2960-XR IP Lite models.

Q: Does it support redundant power?
A: It has a single fixed internal AC power supply. Redundant power is available through an external Cisco RPS 2300 (PWR-RPS2300).

Q: What rack-mount kits fit this switch?
A: The Cisco rack-mount kits RCKMNT-1RU-2KX= and RCKMNT-REC-2KX= are compatible with this model.
