• Cisco WS-C2960X-48FPD-L 48-port PoE+ switch with 10G uplinks
1 1

Cisco

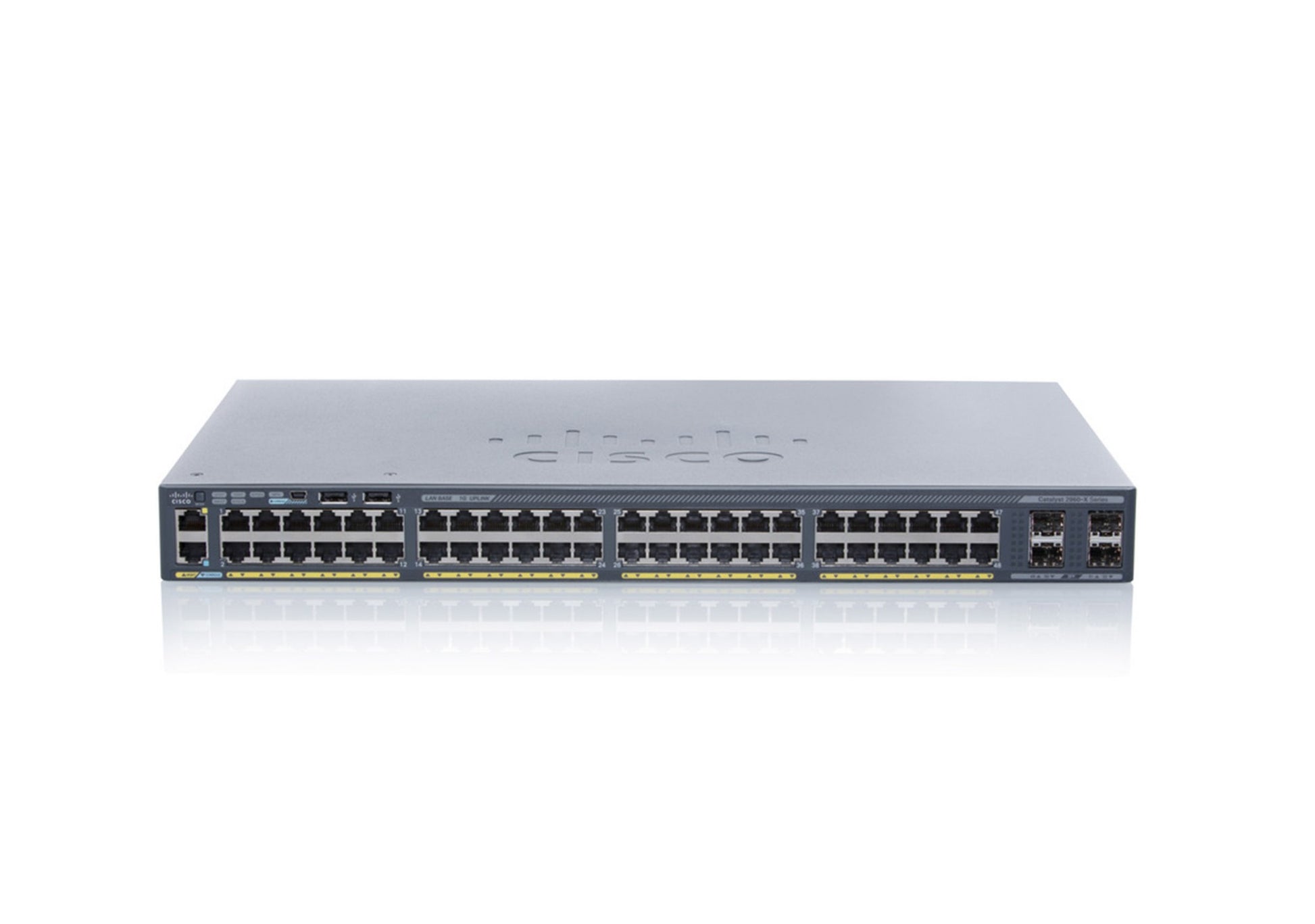

Cisco WS-C2960X-48FPD-L | Catalyst 2960-X 48-Port PoE+ Switch, 740W, LAN Base

WS-C2960X-48FPD-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-X WS-C2960X-48FPD-L is a fixed-configuration, stackable Gigabit Ethernet access switch for enterprise campus and branch networks. It powers PoE and PoE+ endpoints such as IP phones, Cisco Aironet wireless access points and IoT devices, with 10G SFP+ uplinks to the distribution or core layer.

It provides 48 x 10/100/1000 ports with a 740W PoE budget, enough for 24 ports of PoE+ (802.3at) at up to 30W or 48 ports of PoE (802.3af) at up to 15.4W. Two 10G SFP+ uplink interfaces handle aggregation. Forwarding bandwidth is 108 Gbps, switching bandwidth is 216 Gbps and the forwarding rate is 130.9 Mpps. This SKU runs the Cisco IOS LAN Base feature set, which is fixed to the model.

The switch supports FlexStack-Plus and FlexStack-Extended stacking through an optional module, with up to 8 members in a stack. It can stack with other 2960-X LAN Base switches and with 2960-S/SF LAN Base switches, and it takes a single fixed internal AC power supply with optional RPS 2300 external redundancy.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Perpetual PoE keeps PoE+ power running during a switch reload
- Intelligent PoE+ with dynamic power allocation up to 740W
- FlexStack-Plus stacking of up to 8 switches with 80 Gbps stack bandwidth and a single management IP
- Security: 802.1X, Cisco TrustSec, IPv6 First-Hop Security, DAI, IP Source Guard, Private VLANs, BPDU Guard and ACLs
- QoS: up to 8 egress queues per port, SRR scheduling, WTD congestion avoidance and Auto-QoS
- Resiliency: cross-stack EtherChannel, Flex Links and RSTP/MSTP/PVRST+
- Layer 3 routed access with static routing, RIP and OSPF
- Energy efficiency: IEEE 802.3az EEE, Switch Hibernation Mode and Cisco EnergyWise
- Management via CLI, web UI, SNMP, Cisco Prime Infrastructure and Cisco DNA Center

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ethernet ports: 48 x 10/100/1000
- Uplink interfaces: 2 x 10G SFP+
- PoE budget: 740W
- PoE+ (802.3at): up to 24 ports at 30W
- PoE (802.3af): up to 48 ports at 15.4W
- Cisco IOS software image: LAN Base
- Forwarding bandwidth: 108 Gbps
- Switching bandwidth (full-duplex): 216 Gbps
- Forwarding rate (64-byte L3 packets): 130.9 Mpps
- Stacking: FlexStack-Plus / FlexStack-Extended (optional module), up to 8 members
- Flash memory: 128 MB
- DRAM: 512 MB
- CPU: APM86392 600 MHz dual core
- Console ports: USB (Type B) and Ethernet (RJ-45)
- Storage interface: USB (Type A) for external flash
- Management interface: 10/100 Mbps Ethernet (RJ-45)
- Maximum active VLANs: 1023
- Unicast MAC addresses: 16,000
- Jumbo frame: 9216 bytes
- Input voltage: 100 to 240 VAC auto-ranging, 50 to 60 Hz
- Power consumption (weighted average): 66.0 W
- Operating temperature up to 1500 m: -5 to 45 C
- Dimensions (H x D x W): 4.5 x 36.8 x 44.5 cm
- Weight: 5.8 kg

FAQs

Q: Which feature set does this switch run, and can it be upgraded?
A: It runs the Cisco IOS LAN Base feature set, which is fixed to the model and cannot be upgraded to IP Lite. Flexible NetFlow, DNS-AS, Network Plug and Play and Cisco DNA Center features need optional term-based Cisco DNA Essentials licences.

Q: How many PoE devices can it power at once?
A: The 740W PoE budget supports up to 24 PoE+ devices at 30W each, or up to 48 PoE devices at 15.4W each. A mix of device classes is allocated dynamically within the 740W total.

Q: What do I need to stack this switch?
A: Stacking needs the optional FlexStack-Plus module C2960X-STACK with stacking cables CAB-STK-E-0.5M, -1M or -3M. FlexStack-Extended modules C2960X-FIBER-STK and C2960X-HYBRID-STK suit long-distance stacking. Up to 8 2960-X LAN Base switches can stack, but it cannot stack with 2960-XR IP Lite.

Q: Does it support external power redundancy?
A: Yes. The switch has a single fixed internal AC power supply and supports the optional Cisco Redundant Power System RPS 2300 (PWR-RPS2300) for external power redundancy.

Q: How does it differ from the 370W 48-port 2960-X variant?
A: This SKU provides a 740W PoE budget with 2 x 10G SFP+ uplinks and LAN Base. The WS-C2960X-48LPD-L variant offers a lower 370W PoE budget, so the 740W model suits deployments with many PoE+ endpoints.
