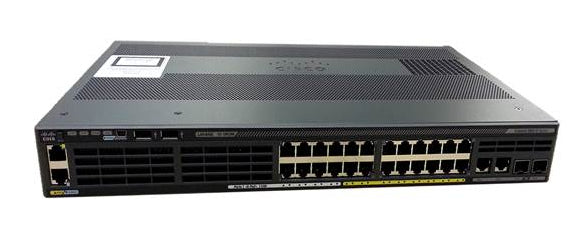

• Cisco WS-C2960X-24TS-LL 24-port switch with black faceplate and silver ports
1 1

Cisco

Cisco WS-C2960X-24TS-LL | Catalyst 2960-X 24-Port Gigabit Switch, 2x SFP, LAN Lite

WS-C2960X-24TS-LL

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-X 24-port Gigabit switch is a fixed-configuration, non-PoE access switch for enterprise campus and branch networks. It is positioned as a cost-effective Layer 2 access switch with basic Layer 3 capability, running the Cisco IOS LAN Lite feature set.

It provides 24 x 10/100/1000 Ethernet ports and 2 x 1G SFP uplinks, with 50 Gbps forwarding bandwidth, 100 Gbps switching bandwidth and a forwarding rate of 68.5 Mpps. This is a non-stackable model with no FlexStack-Plus or FlexStack-Extended support. The LAN Lite feature set is fixed by SKU and cannot be upgraded to LAN Base or IP Lite. Optional term-based Cisco DNA Essentials licences enable Full Flexible NetFlow, DNS-AS and Cisco DNA Center integration.

It runs from a single fixed internal AC power supply with auto-ranging 100 to 240 VAC input, drawing 25.2 W at idle and 32.0 W under load. Management options include a CLI, web UI, SNMP, RJ-45 or USB console, and Cisco Prime, Network Plug and Play or Cisco DNA Center. Supported SFP modules are listed in Cisco's transceiver compatibility matrix.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Line-rate Gigabit Ethernet forwarding for enterprise campus and branch access
- Management via CLI, web UI, SNMP, RJ-45 or USB console, with Cisco Prime, Network Plug and Play and Cisco DNA Center
- Security features including 802.1X, port security, BPDU Guard, DAI, IP Source Guard, TACACS+ and RADIUS
- QoS with up to eight egress queues per port, SRR scheduling and WTD congestion avoidance
- Energy efficiency with IEEE 802.3az EEE, Switch Hibernation Mode and Cisco EnergyWise
- Operational simplicity tools including Smart Install, Auto SmartPorts, Auto-QoS, AutoSecure and Smart Call Home
- GOLD diagnostics for proactive fault detection
- Optional Bluetooth over-the-air management access using a USB dongle

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ethernet ports: 24 x 10/100/1000
- Uplink interfaces: 2 x 1G SFP
- Software image: Cisco IOS LAN Lite
- PoE: None (non-PoE)
- Stacking: Not supported
- Forwarding bandwidth: 50 Gbps
- Switching bandwidth: 100 Gbps (full-duplex)
- Forwarding rate: 68.5 Mpps (64-byte Layer 3 packets)
- Flash memory: 64 MB
- DRAM: 256 MB
- CPU: APM86392 600 MHz dual core
- Console ports: USB Type B and RJ-45 Ethernet
- Storage interface: USB Type A
- Management interface: 10/100 Mbps Ethernet (RJ-45)
- Maximum active VLANs: 64 (4096 VLAN IDs available)
- Unicast MAC addresses: 16,000
- Jumbo frame: 9216 bytes
- Input voltage: 100 to 240 VAC, auto-ranging
- Power consumption: 25.2 W at 0% traffic, 32.0 W at 10% and 100% traffic
- Dimensions (H x D x W): 4.5 x 27.9 x 44.5 cm
- Weight: 3.7 kg
- Operating temperature: -5 to 45 C up to 1500 m, -5 to 40 C up to 3000 m
- MTBF: 622,350 hours

FAQs

Q: Which licence does this switch use?
A: It ships with the fixed Cisco IOS LAN Lite feature set. LAN Lite cannot be upgraded to LAN Base or IP Lite. Optional Cisco DNA Essentials licences add Full Flexible NetFlow, DNS-AS and Cisco DNA Center features.

Q: Does this switch provide PoE?
A: No. This is a non-PoE model with no PoE budget, so powered devices need a separate power source or PoE injector.

Q: Can this switch be stacked?
A: No. This SKU does not support FlexStack-Plus or FlexStack-Extended, so it operates as a standalone switch.

Q: What can I use in the SFP uplink ports?
A: The 2 x 1G SFP uplinks accept the modules listed in Cisco's transceiver compatibility matrix for the Catalyst 2960-X Series.

Q: How does this differ from other 24-port 2960-X models?
A: This is the LAN Lite, non-PoE, non-stackable variant with 2 x 1G SFP uplinks. Other 2960-X SKUs add PoE, LAN Base feature sets, 10G SFP+ uplinks or FlexStack-Plus stacking.
