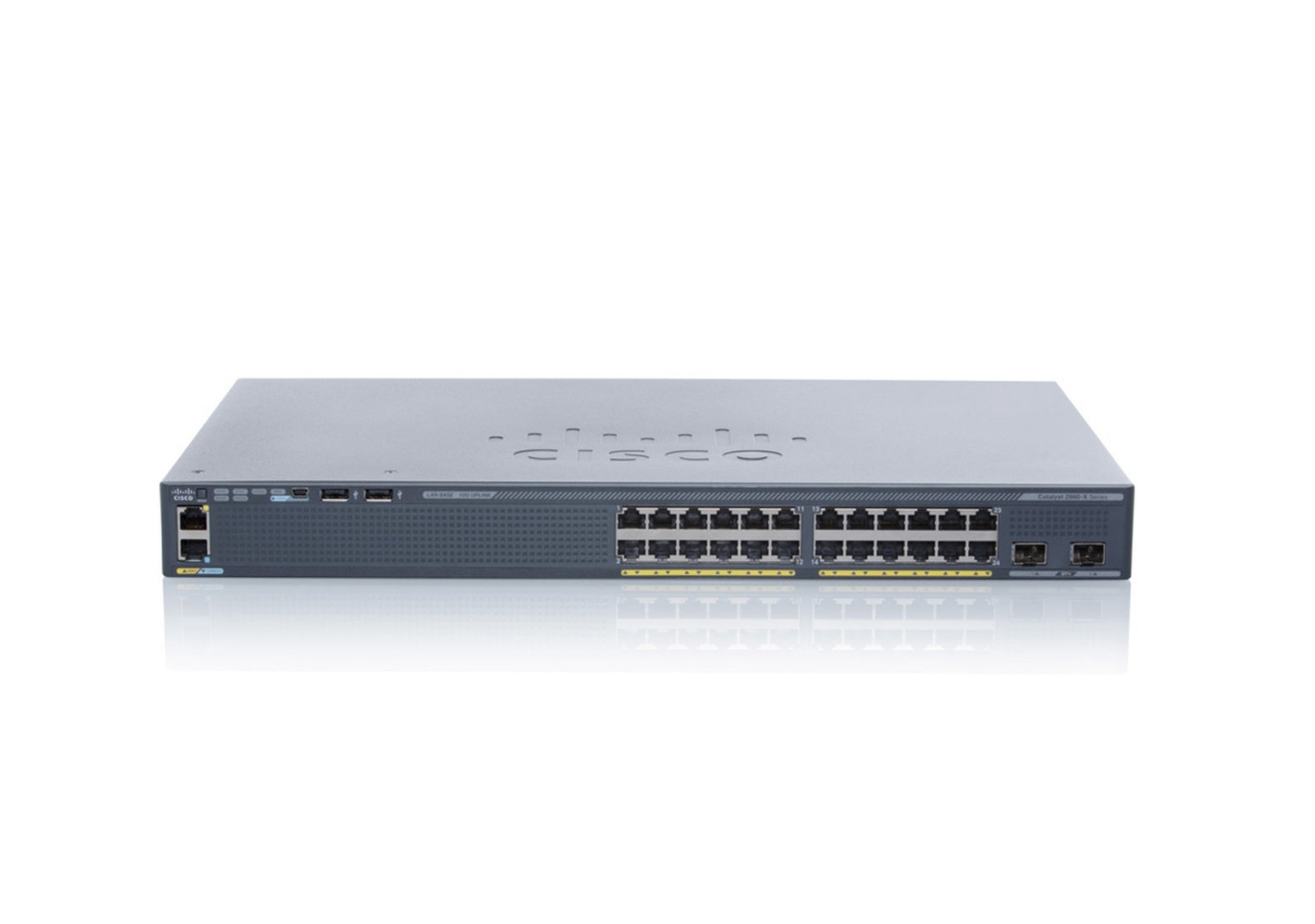

• Cisco WS-C2960X-24TS-L switch with 24x 1G RJ-45 ports and 4x SFP uplinks
1 1

Cisco

Cisco WS-C2960X-24TS-L | Catalyst 2960-X 24-Port Gigabit Switch, 4x 1G SFP, LAN Base

WS-C2960X-24TS-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-X 24-port Gigabit switch is a fixed-configuration, stackable access switch for enterprise campus and branch networks. It suits small and mid-size business access layers and stacked closet deployments that need secure, manageable Layer 2 and basic Layer 3 features without PoE.

It provides 24 x 10/100/1000 Ethernet ports and 4 x 1G SFP uplinks, with 108 Gbps of forwarding bandwidth, 216 Gbps of switching bandwidth and a forwarding rate of 71.4 Mpps. This is the non-PoE model running the Cisco IOS LAN Base feature set, which is tied to the SKU and cannot be upgraded to IP Lite. LAN Base includes static routing, RIP and OSPF for routed access. Optional term-based Cisco DNA Essentials licences add Full Flexible NetFlow, DNS-AS and Cisco DNA Center integration.

FlexStack-Plus stacking with the optional C2960X-STACK module supports up to 8 members, and FlexStack-Extended modules allow long-distance stacking. The 1G SFP uplinks accept Cisco-supported SFP modules, and an external Cisco RPS 2300 can provide power redundancy.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Line-rate Gigabit Ethernet forwarding with 4 x 1G SFP uplinks
- FlexStack-Plus stacking for up to 8 switches with 80 Gbps stack bandwidth, plus FlexStack-Extended for long-distance stacking
- Static routing, RIP and OSPF for routed access in LAN Base
- Security including 802.1X, Cisco TrustSec, Dynamic ARP Inspection, IP Source Guard, port security, private VLANs and BPDU Guard
- QoS with up to 8 egress queues per port, SRR scheduling, Auto-QoS and rate limiting
- Management via web UI, CLI, SNMP, Cisco Prime and Cisco DNA Center, with Smart Install and Plug and Play for rollout
- Resiliency with cross-stack EtherChannel, Flex Links, RSTP, MSTP and PVRST+
- Energy efficiency through IEEE 802.3az EEE, Switch Hibernation Mode and Cisco EnergyWise

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- 10/100/1000 Ethernet ports: 24
- Uplink interfaces: 4 x SFP (1G)
- Software image: Cisco IOS LAN Base
- PoE: None (non-PoE model)
- Forwarding bandwidth: 108 Gbps
- Switching bandwidth: 216 Gbps (full-duplex)
- Forwarding rate (64-byte packets): 71.4 Mpps
- Flash memory: 128 MB
- DRAM: 512 MB
- CPU: APM86392 600 MHz dual core
- Console ports: USB (Type B), Ethernet (RJ-45)
- Storage interface: USB (Type A)
- Management interface: 10/100 Mbps Ethernet (RJ-45)
- Maximum active VLANs: 1023
- Unicast MAC addresses: 16,000
- Jumbo frame: 9216 bytes
- Input voltage: 100 to 240 VAC auto-ranging, 50 to 60 Hz
- Typical power consumption: about 37 W at 100% traffic
- Dimensions (H x D x W): 4.5 x 27.9 x 44.5 cm
- Weight: 4.0 kg
- Operating temperature (up to 1500 m): -5 to 45 C
- Predicted reliability (MTBF): 564,910 hours

FAQs

Q: Does this switch need a licence to operate?
A: No. It ships with the Cisco IOS LAN Base feature set, which is tied to the SKU. Optional term-based Cisco DNA Essentials licences add Full Flexible NetFlow, DNS-AS and Cisco DNA Center features.

Q: Does it provide PoE?
A: No. This is a non-PoE model, so it has no PoE budget. It runs from a single fixed internal AC power supply, 100 to 240 VAC.

Q: How do I stack it with other switches?
A: Fit the optional C2960X-STACK FlexStack-Plus module and use CAB-STK-E stacking cables to join up to 8 members. It can also stack with 2960-S and 2960-SF LAN Base switches in a mixed stack of up to 4 members, but not with 2960-XR.

Q: Can I add power redundancy?
A: Yes. The optional external Cisco RPS 2300 (PWR-RPS2300 with a C3K-PWR-750WAC= supply) provides redundant power.

Q: What SFP modules work in the uplink ports?
A: The 4 x 1G SFP uplinks accept Cisco-supported SFP modules listed in the Cisco Transceiver Compatibility Matrix.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
