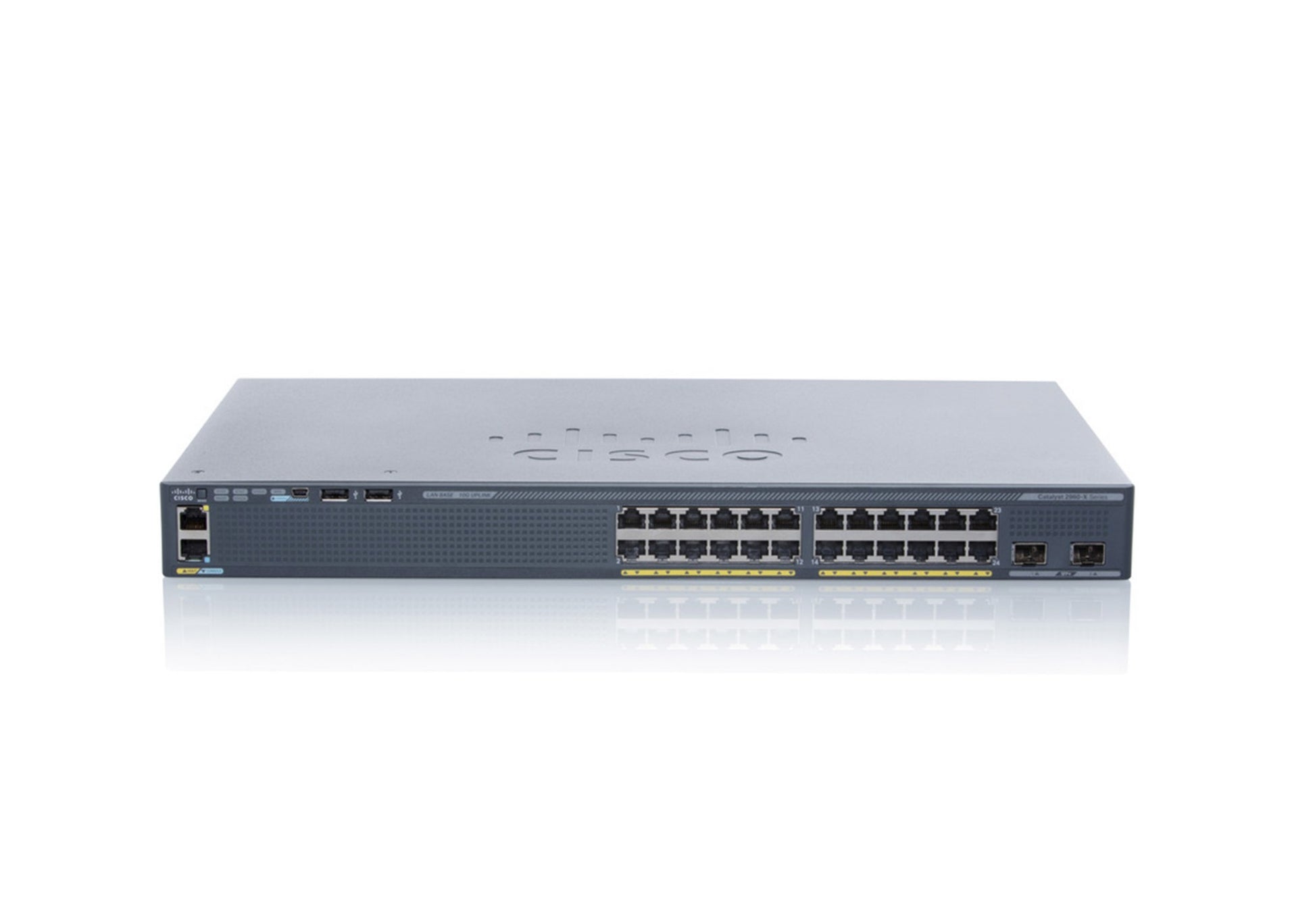

• Cisco WS-C2960X-24TD-L switch with 24x 1G ports and 2x 10G uplinks
1 1

Cisco

Cisco WS-C2960X-24TD-L | Catalyst 2960-X 24-Port Gigabit Switch, 2x 10G SFP+, LAN Base

WS-C2960X-24TD-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-X 24-port Gigabit switch is a fixed-configuration, stackable access switch for enterprise campus and branch wiring closets. It provides 24 x 10/100/1000 Ethernet ports with two 10G SFP+ uplinks and runs the Cisco IOS LAN Base feature set. This is a non-PoE model, suited to access layers where connected devices are powered separately.

For capacity, it delivers 108 Gbps of forwarding bandwidth, 216 Gbps of switching bandwidth and a forwarding rate of 95.2 Mpps on 64-byte packets. It supports up to 1023 active VLANs, 16,000 unicast MAC addresses and jumbo frames up to 9216 bytes. Power comes from a fixed internal AC supply, with typical consumption of around 33 W at full traffic load. The LAN Base feature set is fixed to the model and cannot be upgraded to IP Lite.

For growth, the switch accepts the optional C2960X-STACK FlexStack-Plus module to stack up to 8 switches, or the FlexStack-Extended modules for long-distance stacking. It can also use an external Cisco RPS 2300 for redundant power. It is a 1RU rack-mount unit.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Stackable with FlexStack-Plus (up to 8 switches, 80 Gbps stack bandwidth) and FlexStack-Extended for long-distance stacking
- Layer 3 features including static routing, RIP and OSPF for routed access
- Management via web UI, CLI, SNMP, RJ-45 or USB console, with Cisco DNA Center and Prime Infrastructure support
- Security: 802.1X, Cisco TrustSec, IPv6 First-Hop Security, Private VLANs, port security, DAI, IP Source Guard, BPDU Guard, TACACS+/RADIUS, SSH/SNMPv3
- Enhanced QoS with 8 egress queues per port, SRR scheduling, policing and Auto-QoS
- Resiliency with cross-stack EtherChannel, Flex Links and RSTP/MSTP/PVRST+
- Energy efficiency with IEEE 802.3az EEE, Switch Hibernation Mode and Cisco EnergyWise
- Smart Install, AutoConfig and GOLD diagnostics for simpler deployment and troubleshooting

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- 10/100/1000 Ethernet ports: 24
- Uplink interfaces: 2 x SFP+
- Cisco IOS feature set: LAN Base
- PoE: None (non-PoE)
- Forwarding bandwidth: 108 Gbps
- Switching bandwidth: 216 Gbps
- Forwarding rate (64-byte packets): 95.2 Mpps
- Maximum active VLANs: 1023
- Jumbo frame: 9216 bytes
- Unicast MAC addresses: 16,000
- Flash memory: 128 MB
- DRAM: 512 MB
- CPU: APM86392 600 MHz dual core
- Console ports: USB (Type B) and Ethernet (RJ-45)
- Management interface: 10/100 Mbps Ethernet (RJ-45)
- Dimensions (H x D x W): 1.75 x 11.0 x 17.5 in (4.5 x 27.9 x 44.5 cm)
- Weight: 4.0 kg (8.9 lb)
- Input voltage: 100 to 240 VAC auto-ranging, 50-60 Hz
- Power consumption: 33.1 W at 100% traffic
- Operating temperature (up to 1500 m): -5 to 45 C
- Storage temperature: -25 to 70 C
- Mounting: 1RU rack-mountable
- MTBF: 569,520 hours

FAQs

Q: Does this switch provide PoE?
A: No. The WS-C2960X-24TD-L is a non-PoE model with no PoE power budget. Connected devices need their own power source.

Q: Can the LAN Base feature set be upgraded?
A: No. LAN Base is fixed to this model and cannot be upgraded to IP Lite. Cisco DNA Essentials term licences are available for features such as Full Flexible NetFlow.

Q: How do I stack this switch?
A: Fit the optional hot-swappable C2960X-STACK FlexStack-Plus module and connect with CAB-STK-E stacking cables, to stack up to 8 switches. FlexStack-Extended modules C2960X-HYBRID-STK and C2960X-FIBER-STK support long-distance stacking.

Q: Can I add redundant power?
A: Yes. The switch has a fixed internal AC supply and supports external redundant power through the Cisco RPS 2300 (PWR-RPS2300).

Q: What rack-mount kits fit this switch?
A: The RCKMNT-1RU-2KX= and RCKMNT-REC-2KX= rack-mount kits are listed for the Catalyst 2960-X range. The switch is a 1RU unit.
