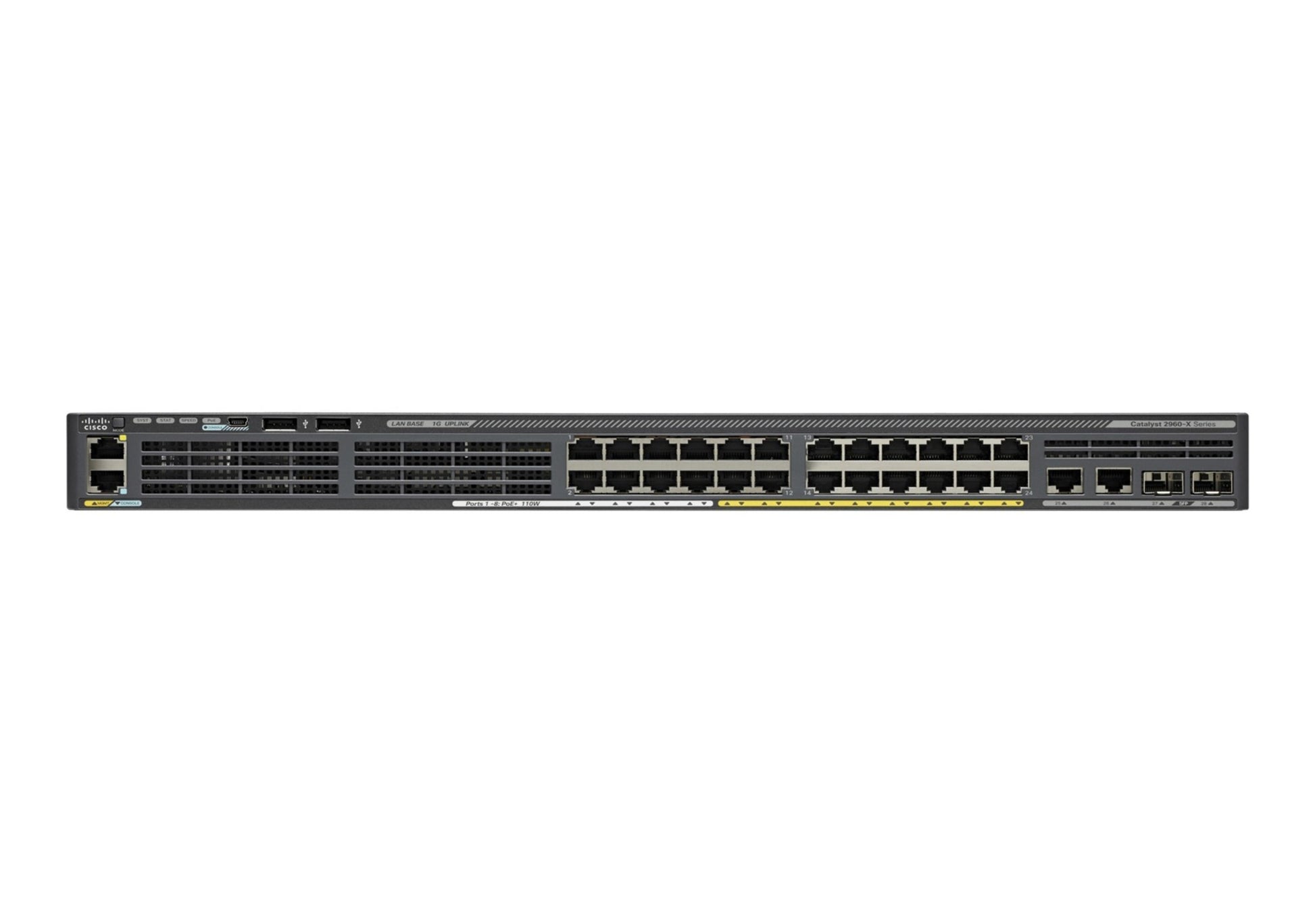

• Cisco WS-C2960X-24PSQ-L 24-port PoE+ switch with 10G SFP+ uplinks
1 1

Cisco

Cisco WS-C2960X-24PSQ-L | Catalyst 2960-X 24-Port PoE+ Switch, 110W, LAN Base

WS-C2960X-24PSQ-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-X 24-port Gigabit PoE+ switch is a fixed-configuration access switch for compact enterprise campus and branch deployments. It suits standalone installations that need to power a small number of IP phones, wireless access points or cameras alongside standard Gigabit endpoints.

It provides 24 x 10/100/1000 ports, 8 of which are PoE/PoE+ capable, plus uplinks of 2 x SFP and 2 x 10/100/1000BT. The 110W PoE budget supports up to 3 ports at 30W PoE+ or 7 ports at 15.4W PoE. Forwarding bandwidth is 108 Gbps with 216 Gbps switching bandwidth and a forwarding rate of 71.4 Mpps. This SKU runs the Cisco IOS LAN Base feature set, which is tied to the model, and it does not support stacking.

It works with a wide range of Cisco SFP optics and with IEEE 802.3af/at PoE and PoE+ devices. A standard 19-inch rack mount kit (RCKMNT-1RU-2KX=) and a recessed kit (RCKMNT-REC-2KX=) are available, and console access is via CAB-CONSOLE-RJ45 or CAB-CONSOLE-USB.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Line-rate Gigabit Ethernet forwarding with intelligent PoE+ and Perpetual PoE, which maintains power during a switch reload
- Cisco IOS LAN Base with Layer 2 and limited Layer 3 features including static routing and RIP
- Management via web UI, CLI, SNMP, and RJ-45 or USB console
- Security including 802.1X, Cisco TrustSec, DAI, IP Source Guard, port security, BPDU Guard, private VLANs and ACLs
- Enhanced QoS with up to 8 egress queues per port, Auto-QoS and per-port policing
- Visibility through Flexible NetFlow Lite
- Energy efficiency with IEEE 802.3az EEE, Cisco EnergyWise and Switch Hibernation Mode
- Operational simplicity with Smart Install, Auto SmartPorts, AutoSecure and Smart Call Home

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Model: WS-C2960X-24PSQ-L
- 10/100/1000 Ethernet ports: 24 (8 PoE)
- Uplink interfaces: 2 x SFP, 2 x 10/100/1000BT
- Cisco IOS feature set: LAN Base
- Available PoE power: 110W
- Maximum PoE+ (802.3at) ports: 3 ports up to 30W
- Maximum PoE (802.3af) ports: 7 ports up to 15.4W
- Stacking: not supported
- Forwarding bandwidth: 108 Gbps
- Switching bandwidth: 216 Gbps (full-duplex)
- Forwarding rate (64-byte packets): 71.4 Mpps
- Flash memory: 128 MB
- DRAM: 512 MB
- CPU: APM86392 600 MHz dual core
- Console ports: USB (Type B), Ethernet (RJ-45)
- Storage interface: USB (Type A)
- Management interface: 10/100 Mbps Ethernet (RJ-45)
- Maximum active VLANs: 1023
- Unicast MAC addresses: 16,000
- Jumbo frame: 9216 bytes
- Input voltage: 100 to 240 VAC, 50 to 60 Hz
- Dimensions (H x D x W): 4.45 x 28.0 x 44.5 cm
- Weight: 5.8 kg
- Operating temperature (up to 1500 m): -5 to 45 C
- MTBF: 462,680 hours

FAQs

Q: Which licence does this switch run?
A: It ships with the Cisco IOS LAN Base feature set, which is tied to this model and cannot be upgraded to IP Lite. Optional Cisco DNA Essentials subscription licences are needed for Full Flexible NetFlow, DNS-AS and Cisco DNA Center features.

Q: How many PoE devices can the 110W budget power?
A: The 110W budget can power up to 3 ports at 30W PoE+ or up to 7 ports at 15.4W PoE, managed by intelligent power management across the 8 PoE-capable ports.

Q: Can this switch be stacked?
A: No. This model does not support FlexStack-Plus or FlexStack-Extended stacking, so it is intended for standalone deployments.

Q: Does it support an external redundant power supply?
A: It has a single fixed internal AC power supply, and the external Cisco RPS 2300 is not listed as supported for this model.

Q: How does it differ from other 2960-X 24-port models?
A: This SKU has only 8 PoE-capable ports with a 110W budget, 2 x SFP plus 2 x 10/100/1000BT uplinks, LAN Base software and no stacking support.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
