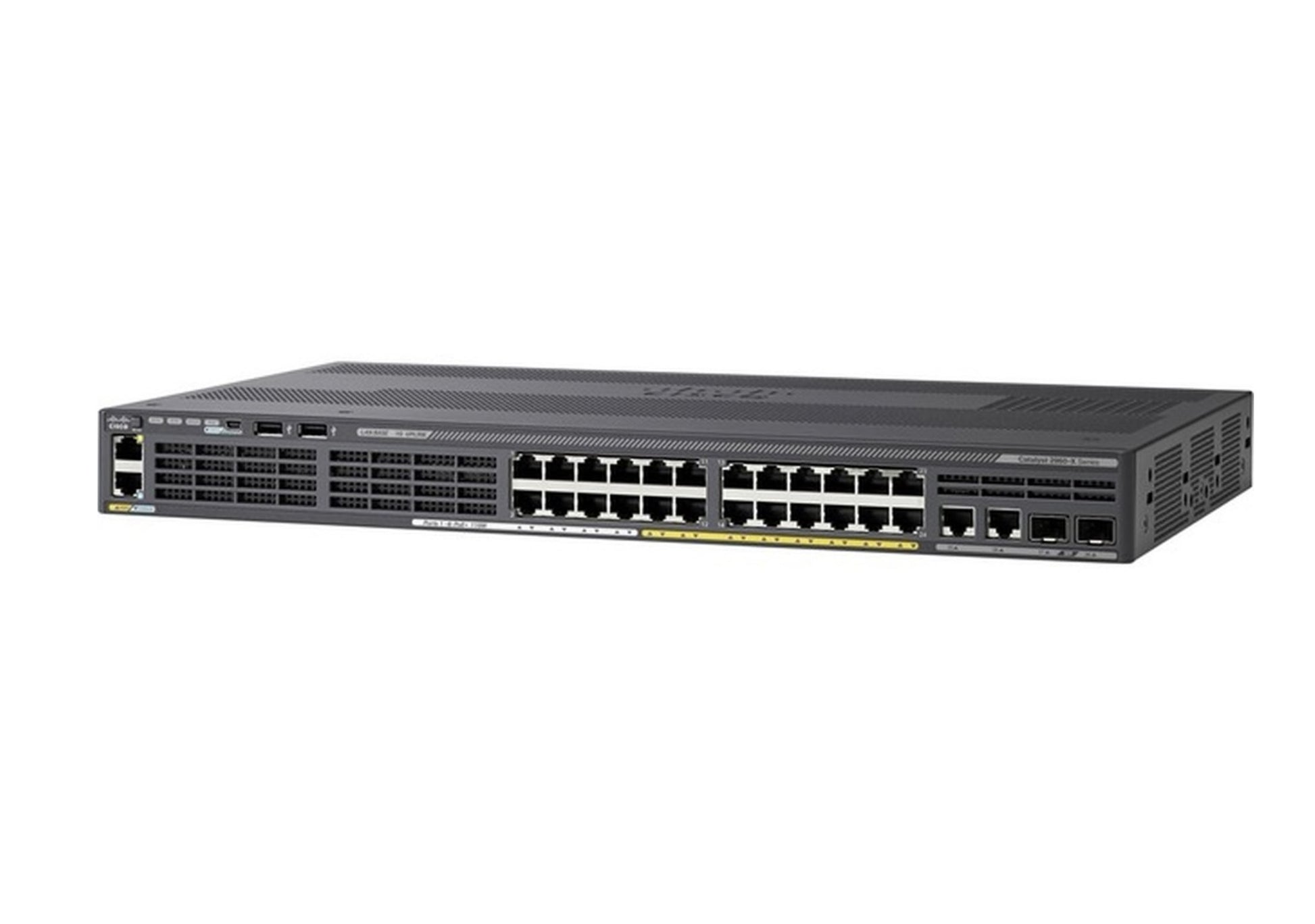

• Cisco WS-C2960X-24PD-L 24-port PoE+ switch with 10G uplinks
1 1

Cisco

Cisco WS-C2960X-24PD-L | Catalyst 2960-X 24-Port Gigabit PoE+ Switch, 370W, 2x 10G SFP+

WS-C2960X-24PD-L

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco WS-C2960X-24PD-L is a stackable Gigabit Ethernet switch designed for enterprise campus and branch access deployments. With 24 PoE+ ports delivering up to 370W total power budget and two 10G SFP+ uplinks, it supports demanding endpoints like IP phones, wireless access points, and security cameras. Running Cisco IOS LAN Base, it offers Layer 2 features with limited static routing, FlexStack-Plus stacking for up to 8 units, and integrated NetFlow-Lite for visibility.

Features

Layer 2 switching with VLAN support (up to 4096 VLANs)
- Spanning Tree Protocol (STP, RSTP, MSTP, Rapid PVST+)
- Link aggregation (LACP, PAgP)
- Quality of Service (QoS) with Shaped Round Robin (SRR) scheduling
- Access Control Lists (ACLs) for traffic filtering
- Dynamic ARP Inspection (DAI) and DHCP snooping for security
- Unicast Reverse Path Forwarding (uRPF)
- IEEE 802.1X authentication and port security
- NetFlow-Lite for traffic monitoring and visibility
- Energy Efficient Ethernet (IEEE 802.3az) and Cisco EnergyWise
- Jumbo frame support (up to 9000 bytes)
- IPv4 and IPv6 dual-stack support
- Hot Standby Router Protocol (HSRP) support
- Remote Switch Port Analyzer (RSPAN) and local SPAN
- Auto MDI/MDIX on all ports
- Uni-Directional Link Detection (UDLD)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

24x 10/100/1000 Gigabit Ethernet ports with PoE+ (802.3at)
- 2x 10G SFP+ uplink ports
- Total PoE power budget: 370W (12 ports support up to 30W PoE+, all 24 ports support up to 15.4W PoE)
- Switching capacity: 216 Gbps
- Forwarding rate: 95.2 Mpps (wire-speed)
- Memory: 512 MB DRAM, 128 MB Flash
- FlexStack-Plus stacking support (up to 8 switches, 80 Gbps stack bandwidth, optional C2960X-STACK module required)
- Management: CLI, Web UI, SNMP, USB console, NetFlow-Lite
- Software: Cisco IOS LAN Base feature set
- Form factor: 1U rack-mountable (1.75 x 14.5 x 17.5 inches / 4.5 x 36.8 x 44.5 cm)
- Weight: 12.7 lbs (5.7 kg)
- Power: Fixed internal power supply, RPS 2300 redundant power supply support (optional)
- Certifications: UL 60950-1, EN 60950-1, FCC Part 15 Class A, RoHS compliant

FAQs

Q: What is the difference between the 24PD-L and 24PS-L models?
A: The WS-C2960X-24PD-L features 2x 10G SFP+ uplinks for higher-bandwidth aggregation, while the 24PS-L has 4x 1G SFP uplinks. Both models provide 370W PoE+ and 24 Gigabit Ethernet ports with LAN Base software.

Q: Can this switch stack with other Catalyst 2960 series models?
A: The 24PD-L can stack with other 2960-X LAN Base models (up to 8 switches) using the optional C2960X-STACK FlexStack-Plus module. It can also stack with up to 4x 2960-S LAN Base switches. It cannot stack with 2960-XR models due to different feature sets.

Q: Does the LAN Base feature set support Layer 3 routing?
A: The LAN Base image provides essential Layer 2 switching with limited static routing capabilities. It does not support advanced Layer 3 dynamic routing protocols. For full Layer 3 features, consider the 2960-XR series with IP Lite or higher.

Q: What devices can be powered using the 370W PoE+ budget?
A: The switch can power IP phones, wireless access points, surveillance cameras, and other PoE-enabled devices. Up to 12 ports support 802.3at PoE+ (30W per port), and all 24 ports support 802.3af PoE (15.4W per port) with intelligent power management.

Q: Is redundant power supply supported on this model?
A: Yes, the WS-C2960X-24PD-L can connect to an external Cisco RPS 2300 redundant power system for backup power. The switch has a fixed internal power supply and does not support field-replaceable modular power supplies (those are available on 2960-XR models).
