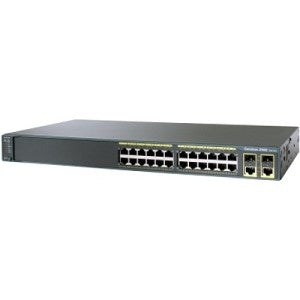

• Cisco WS-C2960S-24PD-L 24-port PoE+ switch with 10G uplinks
1 1

Cisco

Cisco WS-C2960S-24PD-L | Catalyst 2960S 24-Port PoE+ Switch, 370W, 2x 10G SFP+

WS-C2960S-24PD-L

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960S-24PD-L is a fixed-configuration Gigabit Ethernet access switch for campus and branch networks. It suits sites that need to power IP phones, Aironet wireless access points and other 802.3af/at devices from the switch, with 10G SFP+ uplinks to the distribution or core layer.

It provides 24 10/100/1000 ports with PoE and PoE+ (IEEE 802.3af/802.3at) and a 370W PoE budget, enough for 12 ports at up to 30W or 24 ports at up to 15.4W. Two SFP+ uplink ports support 1G or 10G. Forwarding bandwidth is 88 Gbps, switching bandwidth is 176 Gbps and the forwarding rate is 65.5 Mpps. It carries 64 MB of flash and 128 MB of DRAM, and supports up to 255 active VLANs. This SKU ships with the Cisco IOS LAN Base feature set.

Optional FlexStack stacking delivers 20 Gbps of stack throughput using the C2960S-STACK module with CAB-STK-E-0.5M, -1M or -3M cables. The switch has an RPS connector for the optional Cisco RPS 2300 (PWR-RPS2300) and is 1RU rack-mountable.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Enterprise-class Layer 2 switching for campus and branch access
- IEEE 802.3at PoE+ up to 30W per port, plus 802.3af PoE
- Optional Cisco FlexStack stacking with 20 Gbps stack throughput
- Cisco Smart Install for zero-touch deployment, plus Auto Smartports and Smart Troubleshooting
- Cisco EnergyWise to monitor and manage power consumption of connected devices
- USB interfaces for management and file transfer
- Cross-stack QoS, SRR scheduling, WTD congestion avoidance and flow-based rate limiting
- RPS connector for the optional Cisco RPS 2300 redundant power system

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ethernet ports: 24 x 10/100/1000 with PoE/PoE+ (IEEE 802.3af/802.3at)
- Uplink ports: 2 x SFP+ (1G/10G)
- Available PoE power: 370W
- PoE+ capacity: 12 ports up to 30W
- PoE capacity: 24 ports up to 15.4W
- Cisco IOS feature set: LAN Base
- Forwarding bandwidth: 88 Gbps
- Switching bandwidth: 176 Gbps (full-duplex)
- Forwarding rate: 65.5 Mpps (64-byte L3 packets)
- Flash memory: 64 MB
- DRAM: 128 MB
- Maximum active VLANs: 255
- Maximum transmission unit (L3 packet): 9198 bytes
- Jumbo frame (Ethernet frame): 9216 bytes
- FlexStack stacking: optional, 20 Gbps stack throughput (C2960S-STACK module)
- Input voltage: 100 to 240 VAC autoranging, 50-60 Hz
- Power consumption, 100% throughput with maximum PoE load: 451 W
- Operating temperature up to 1500 m: -5 to 45 C
- Operating relative humidity: 10% to 95% non-condensing
- Weight: 5.7 kg
- Form factor: 1RU rack-mountable
- MTBF: 237,016 hours

FAQs

Q: Does this switch need a separate licence or subscription?
A: No. The WS-C2960S-24PD-L runs the Cisco IOS LAN Base feature set, indicated by the -L suffix, and no separate subscription is required.

Q: How much PoE power does it provide?
A: It has a 370W PoE budget. That powers 12 ports at up to 30W (802.3at) or all 24 ports at up to 15.4W (802.3af).

Q: How do I stack this switch?
A: Stacking uses the optional C2960S-STACK FlexStack module with CAB-STK-E-0.5M, CAB-STK-E-1M or CAB-STK-E-3M stacking cables, giving 20 Gbps of stack throughput.

Q: Can the SFP+ uplinks run at 1G as well as 10G?
A: Yes. The two uplink ports accept SFP and SFP+ modules, so they can run at 1G or 10G depending on the module fitted.

Q: Can it use a redundant power supply?
A: Yes. It has an RPS connector for the optional Cisco RPS 2300 (PWR-RPS2300) redundant power system.
