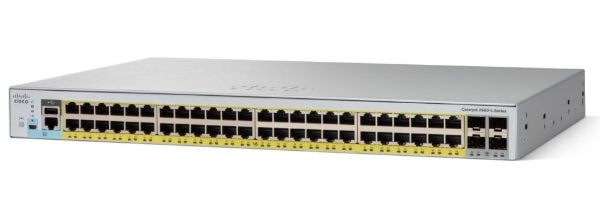

• Cisco WS-C2960L-48PQ-LL 48-port silver PoE+ switch
1 1

Cisco

Cisco WS-C2960L-48PQ-LL | Catalyst 2960-L 48-Port PoE+ Switch, 370W, 4x 10G SFP+, LAN Lite

WS-C2960L-48PQ-LL

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-L is a fixed-configuration Layer 2 access switch built for small and midsize branch offices and campus networks. It suits access-layer deployments that need to power Cisco IP phones, Aironet wireless access points and other PoE and PoE+ endpoints from a single 1 RU chassis.

This model provides 48 Gigabit Ethernet PoE+ ports with a 370W PoE budget, plus 4 fixed 10G SFP+ uplinks for aggregation links. Switching bandwidth is 176 Gbps with 10G uplinks, with a forwarding rate of 77.38 Mpps. It runs the enhanced LAN Lite Cisco IOS image, which is the base licence, so no subscription is needed to operate it. Term-based Cisco DNA Essentials licences are an optional add-on for Cisco DNA Center features.

The 4 SFP+ uplink ports accept 10G SFP+ and 1G SFP optics. Up to 8 switches can be virtually stacked and managed from a single IP address, and the switch can be managed through Cisco Configuration Professional, Cisco Prime, Network Plug and Play and Cisco DNA Center.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Perpetual PoE+ keeps PoE+ power flowing during a switch reload
- IEEE 802.3af PoE and 802.3at PoE+ with up to 30W per port and dynamic power allocation up to 370W
- Virtual stacking of up to 8 switches managed from a single IP address
- Web UI through Cisco Configuration Professional for day-zero provisioning
- Wireless console access through an external Bluetooth dongle in the USB port
- Security features including 802.1X, SPAN, BPDU Guard, port-based ACLs, SSH and SNMPv3
- Basic Layer 3 routing with static routes and RIP
- Supported by Cisco Prime, Network Plug and Play and Cisco DNA Center

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ethernet ports: 48 x 10/100/1000 PoE+
- Uplink interfaces: 4 x SFP+ (10G)
- Available PoE power: 370W
- Switching bandwidth: 176 Gbps with 10G uplinks (104 Gbps with 1G uplinks)
- Forwarding bandwidth: 88 Gbps with 10G uplinks (52 Gbps with 1G uplinks)
- Forwarding rate: 77.38 Mpps (64-byte L3 packets)
- Software image: Cisco IOS enhanced LAN Lite
- CPU: ARMv7 800 MHz
- DRAM: 512 MB
- Flash memory: 256 MB
- Unicast MAC addresses: 8000
- Maximum active VLANs: 64 (4094 VLAN IDs available)
- Jumbo Ethernet frame: 10,240 bytes
- Console ports: 1 x RJ45 Ethernet, 1 x USB mini-B, 1 x USB-A
- Cooling: fan-cooled
- Form factor: 1 RU
- Dimensions (H x W x D): 4.4 x 44.5 x 29.2 cm
- Weight: 4.54 kg
- AC input: 110 to 220 V AC auto-ranging, 50 to 60 Hz
- Power consumption (48-port PoE): 27 W at 0% traffic, 40.56 W at 100% traffic with 10G uplinks
- Operating temperature: -5 to 45 C up to 1500 m, -5 to 40 C up to 3000 m
- Acoustic noise: 35 dB typical, 39 dB maximum
- MTBF: 437,970 hours

FAQs

Q: Does this switch need a licence or subscription to operate?
A: No. It runs the enhanced LAN Lite Cisco IOS image as its base licence, so no subscription is required. Optional term-based Cisco DNA Essentials licences are available for Cisco DNA Center features.

Q: How much PoE power can it deliver?
A: It provides a 370W PoE budget across its 48 ports, supporting IEEE 802.3af PoE and 802.3at PoE+ at up to 30W per port with dynamic power allocation.

Q: What optics do the uplink ports accept?
A: The 4 SFP+ uplink ports accept 10G SFP+ and 1G SFP optics. Check the Cisco optics compatibility matrix for the supported genuine modules.

Q: Can it be stacked?
A: Yes, it supports virtual stacking of up to 8 switches, managed from a single IP address.

Q: Is it a Layer 2 or Layer 3 switch?
A: It is a Layer 2 access switch with basic Layer 3 capability, limited to static routing and RIP.
