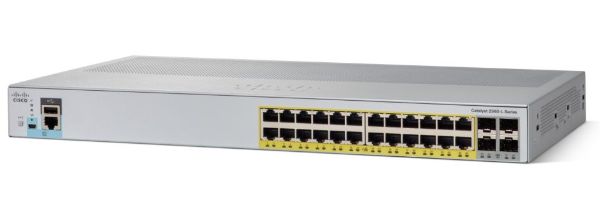

• Cisco WS-C2960L-24PQ-LL switch with 24 PoE+ ports and 4 SFP+ uplinks
1 1

Cisco

Cisco WS-C2960L-24PQ-LL | Catalyst 2960-L 24-Port PoE+ Switch, 195W, 4x 10G SFP+

WS-C2960L-24PQ-LL

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-L is a fixed, fully managed Gigabit Ethernet access switch built for branch offices, out-of-the-wiring-closet installations and IoT deployments such as PoE-powered lighting and medical devices. It powers IP phones and wireless access points from the same unit, and its fanless design suits quiet or exposed locations.

This model provides 24 10/100/1000 PoE+ ports with a 195W PoE budget and four fixed 10G SFP+ uplinks. Forwarding bandwidth is 64 Gbps with 128 Gbps switching bandwidth, and the switch supports up to 256 active VLANs and 16,000 unicast MAC addresses. It runs an enhanced Cisco IOS LAN Lite image and is the CLI-managed -LL variant, as opposed to the Smart Managed WS-C2960L-SM-24PQ.

The LAN Lite feature set needs no subscription to operate. Optional Cisco DNA Essentials licences enable Cisco DNA Center features, and rack mount kits RCKMNT-1RU-2KX and RCKMNT-REC-2KX are supported.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Perpetual PoE+ keeps connected devices powered during a switch reload
- IEEE 802.3af PoE and 802.3at PoE+ with up to 30W per port and dynamic power allocation
- Enhanced Cisco IOS LAN Lite software with CLI and on-box web UI
- Bluetooth console access over the air using an external USB dongle in the USB-A port
- 802.1X, MAB, Web Auth, port-based ACLs, BPDU Guard and IP Source Guard for access security
- RSTP, MSTP, PVRST+, Link State Tracking and LACP/PAgP EtherChannel
- QoS with 8 egress queues per port, SRR scheduling and Auto-QoS
- IEEE 802.3az Energy Efficient Ethernet and Cisco EnergyWise
- Cisco Smart Install, Network Plug and Play and Cisco DNA Center support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ethernet ports: 24 x 10/100/1000 PoE+
- Uplinks: 4 x 10G SFP+
- Available PoE power: 195 W
- Forwarding bandwidth: 64 Gbps (with 10G uplinks)
- Switching bandwidth: 128 Gbps (with 10G uplinks)
- CPU: ARMv7 800 MHz
- DRAM: 512 MB
- Flash memory: 256 MB
- Unicast MAC addresses: 16,000
- Maximum active VLANs: 256
- VLAN IDs available: 4094
- Jumbo Ethernet frame: 10,240 bytes
- Cooling: Fanless
- Input voltage: 110 to 220 V AC auto-ranging, 50 to 60 Hz
- Power consumption (PoE model, weighted average): 34.4 W
- Operating temperature (up to 1500 m): -5 to 45 C
- Dimensions (H x D x W): 4.4 x 26.5 x 44.5 cm
- Weight: 3.35 kg
- Console ports: RJ45 Ethernet, USB mini-B, USB-A

FAQs

Q: Does this switch need a licence or subscription to operate?
A: No. It ships with the enhanced Cisco IOS LAN Lite feature set, which needs no subscription. Optional Cisco DNA Essentials licences are only required to use Cisco DNA Center, Prime Infrastructure or Network Plug and Play features.

Q: How much PoE power does it provide?
A: It has a 195W PoE+ budget across the 24 ports, with up to 30W available on a single port. Perpetual PoE keeps power on during a reload.

Q: How does it differ from the WS-C2960L-SM-24PQ?
A: The -LL model is CLI-managed with the enhanced LAN Lite image, while the WS-C2960L-SM-24PQ is the Smart Managed variant. Both have 24 PoE+ ports and 4x 10G SFP+ uplinks.

Q: What optics and rack mount kits does it work with?
A: The four uplinks accept Cisco SFP+ optics. The 1RU rack mount kits RCKMNT-1RU-2KX and RCKMNT-REC-2KX are supported.

Q: Is it suitable for installation outside a wiring closet?
A: Yes. It is fanless, so it runs silently, and it is designed for branch offices and out-of-the-wiring-closet deployments. It is rated for operation from -5 to 45 C at altitudes up to 1500 m.
