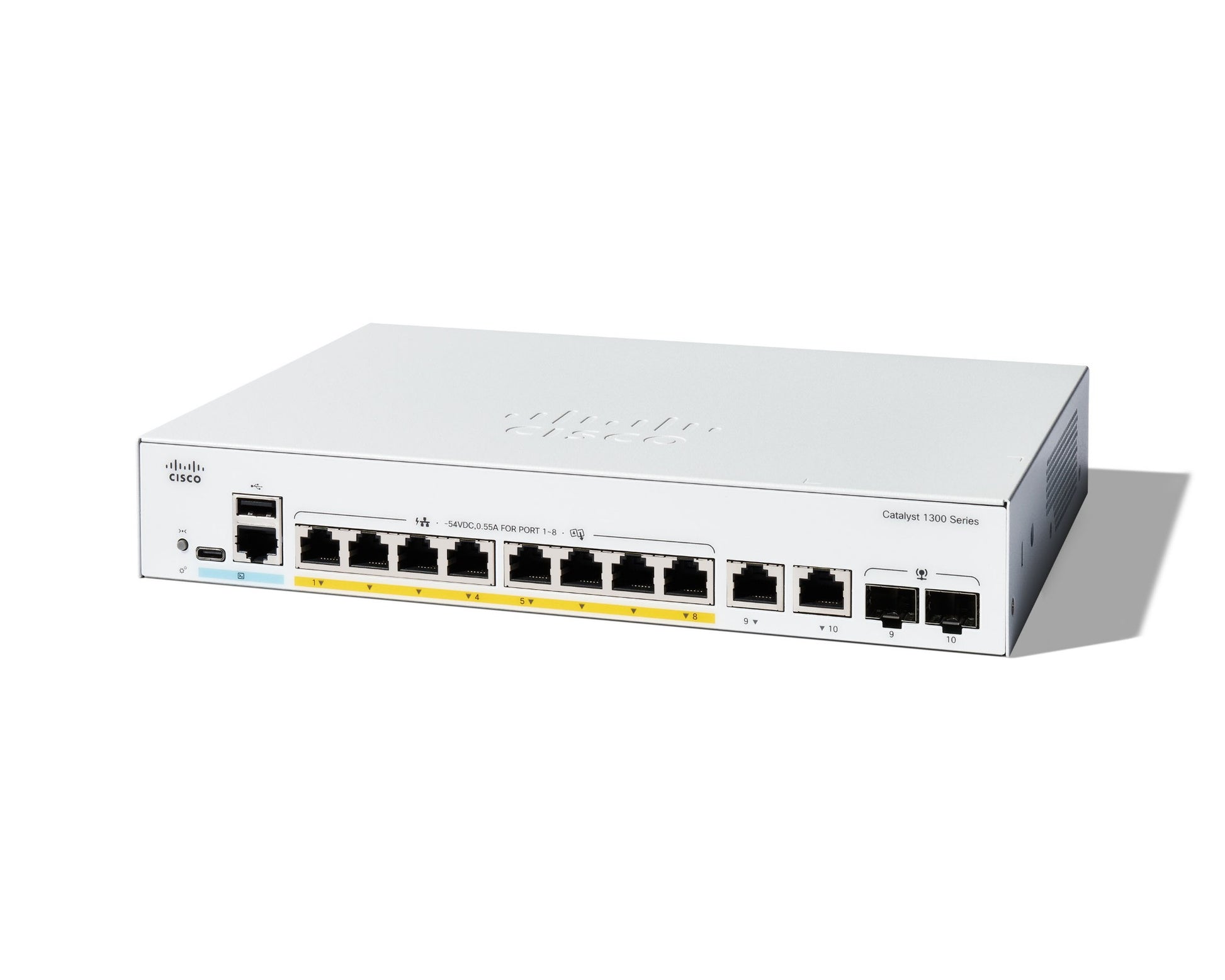

• Cisco C1300-8P-E-2G 8-port PoE+ switch with 2G uplinks, white body
1 1

Cisco

Cisco C1300-8P-E-2G | Catalyst 1300 8-Port Gigabit PoE+ Switch, 67W, 2x 1G SFP/RJ45

C1300-8P-E-2G

31 in stock

$671.31 AUD
$671.31 AUD
$671.31 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst C1300-8P-E-2G is a compact Layer 3 managed switch designed for small and medium-sized businesses and branch offices. With 8 Gigabit PoE+ ports delivering 67W total power budget and 2 Gigabit combo copper/SFP uplink ports, this fanless switch provides reliable connectivity for IP phones, wireless access points, and security cameras. Managed through the Cisco Business Dashboard or web interface, it delivers enterprise-grade security and performance with no subscription or license requirements.

Features

Full Layer 2 and Layer 3 switching capabilities
- PoE+ support (802.3at) on all 8 access ports
- Advanced security: 802.1X authentication, ACLs, DHCP snooping, Dynamic ARP Inspection, IP Source Guard
- IPv6 First Hop Security for protection against address spoofing and man-in-the-middle attacks
- VLAN support with up to 4093 VLAN IDs
- Layer 3 static routing and RIP-2 dynamic routing
- Quality of Service (QoS) with 8 priority queues
- IGMP v2/v3 snooping and querier for multicast optimization
- Front-panel stacking for up to 8 switches with unified management
- Dual boot images for non-disruptive software upgrades
- Link aggregation (LACP) with 8 groups and 8 ports per group
- Spanning Tree Protocol (STP, RSTP, MSTP, RPVST+)
- Port mirroring for traffic analysis
- Energy-efficient Ethernet (IEEE 802.3az)
- Zero-touch deployment and auto-configuration
- Management via Cisco Business Dashboard, mobile app, web GUI, CLI, SNMP v2c/v3, HTTPS
- Fanless operation for silent deployment
- Compact form factor for flexible installation
- Limited lifetime hardware warranty with 1-year technical support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

8 x 10/100/1000 Mbps PoE+ ports (IEEE 802.3at)
- 2 x Gigabit combo copper/SFP uplink ports
- Total PoE power budget: 67W
- Switching capacity: 20 Gbps
- Forwarding rate: 14.88 Mpps
- Processor: ARM dual-core 1.4 GHz
- Memory: 1 GB DDR4 RAM
- Flash: 512 MB
- Packet buffer: 1.5 MB
- VLANs: 4093 VLAN IDs supported
- Static IPv4 routes: Up to 990
- Layer 3 routing: Static IP routing, RIP-2
- Front-panel stacking: Up to 8 switches
- Management: Web GUI, CLI, SNMP, Cisco Business Dashboard, Cisco Business mobile app
- Security: 802.1X, ACL (1024 rules), IP-MAC port binding, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, IPv6 First Hop Security
- Fanless design for silent operation
- External power supply
- Operating temperature: 0°C to 45°C
- Rack mountable (rack mount kit sold separately)

FAQs

Q: Does this switch require a license to operate?
A: No, the C1300-8P-E-2G requires no subscription or license fees to use. All Layer 2 and Layer 3 features are included out of the box. Optional DNA Center integration requires separate licensing.

Q: What is the total PoE budget and how much power can each port deliver?
A: The switch has a total PoE+ budget of 67W across all 8 ports. Each PoE+ port can deliver up to 30W per port (802.3at). You can manage per-port power limits and prioritization through the management interface.

Q: Can I stack multiple C1300-8P-E-2G switches together?
A: Yes, the Catalyst 1300 Series supports front-panel stacking of up to 8 switches, allowing you to manage the entire stack as a single logical unit with one IP address. This simplifies management and provides unified control.

Q: What uplink options are available on this switch?
A: The switch includes 2 x Gigabit combo ports that support either copper (RJ45) or SFP fiber connectivity. Compatible SFP modules include GLC-SX-MMD, GLC-LH-SMD, GLC-BX-U, GLC-BX-D, and GLC-TE among others.

Q: Is the C1300-8P-E-2G suitable for deployment outside a wiring closet?
A: Yes, the compact fanless design makes it ideal for deployment in retail stores, open-plan offices, classrooms, and other environments where silent operation is important. It can be rack-mounted, wall-mounted, or placed on a desktop.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
