Cisco

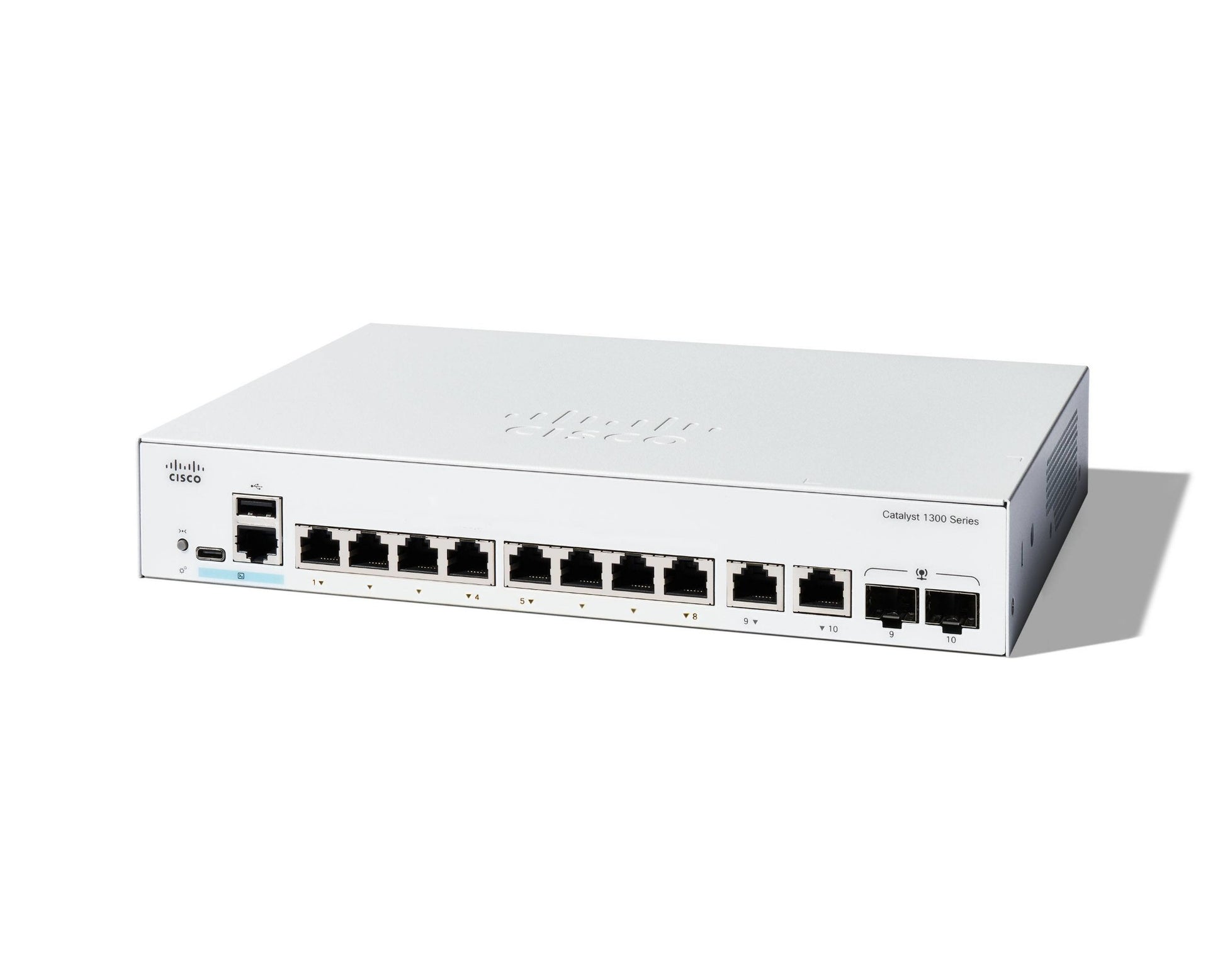

Cisco C1300-8T-E-2G | Catalyst 1300 8-Port Gigabit Switch, 2x 1G SFP/RJ45

C1300-8T-E-2G

2 in stock

$547.43 AUD
$547.43 AUD
$547.43 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C1300-8T-E-2G is a managed Layer 3 Gigabit Ethernet switch designed for small business and branch office deployments. With 8 Gigabit Ethernet ports and 2 combo uplinks supporting both copper and fiber connectivity, this fanless switch delivers reliable performance with advanced Layer 2 and Layer 3 features. Managed through the intuitive Cisco Business Dashboard or CLI, it provides enterprise-class security and simplified network setup ideal for out-of-wiring-closet deployments.

Features

Layer 3 switching with static routing, RIPv2, and policy-based routing
- VLANs (up to 256 VLANs) with GVRP support
- Advanced QoS with 802.1p Class of Service (CoS) and DSCP marking
- 802.1X authentication for network access control
- Advanced security features: DHCP snooping, IP Source Guard, Dynamic ARP Inspection
- Port security to limit MAC addresses per port
- Link aggregation (LACP/static) for increased bandwidth and redundancy
- Spanning Tree Protocol (STP, RSTP, MSTP) with BPDU Guard
- IPv4 and IPv6 dual stack support
- Storm control for broadcast, multicast, and unicast traffic
- IGMP snooping for multicast optimization
- Energy Efficient Ethernet (EEE) for reduced power consumption
- Web-based authentication for guest access
- SNMP v1/v2c/v3 for network monitoring
- Syslog and RMON for event logging and monitoring
- Cisco Business Dashboard and mobile app support for simplified management
- Zero-touch provisioning with Cisco Plug and Play

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

8 x 10/100/1000BASE-T RJ-45 ports
- 2 x 1G combo uplink ports (RJ-45/SFP)
- Switching capacity: 20 Gbps non-blocking
- Forwarding rate: 14.88 Mpps
- MAC address table: 16,000 entries
- Packet buffer: 1.5 MB shared
- CPU: ARM dual-core up to 1.4 GHz
- Memory: 1 GB DDR4
- Flash: 512 MB
- Management: Web UI, CLI (SSH/console), SNMP, Cisco Business Dashboard
- Stacking: Front-panel stacking up to 8 switches
- Power: 100-240V AC, 50/60 Hz external adapter
- Maximum power consumption: 10.65W
- Cooling: Fanless (silent operation)
- Dimensions: 268 x 185 x 44 mm (10.56 x 7.28 x 1.73 in)
- Form factor: 1U rack-mountable metal chassis

FAQs

Q: Does the C1300-8T-E-2G support Power over Ethernet?
A: No, this model does not support PoE. For PoE capabilities, consider the C1300-8P-E-2G with 60W PoE+ budget or the C1300-8FP-E-2G with 120W PoE+ budget.

Q: What are the combo uplink ports and how do they work?
A: The 2 combo ports each have one RJ-45 copper port and one SFP slot, with only one port active at a time per combo pair. This provides flexible options for either copper or fiber uplink connectivity to distribution switches.

Q: Does this switch require a license to operate?
A: No, the Catalyst 1300 Series requires no license purchase and software updates are available at no additional cost, simplifying deployment and lifecycle management.

Q: Can this switch be stacked with other Catalyst 1300 models?
A: Yes, the C1300-8T-E-2G supports front-panel stacking of up to 8 switches of the same type (1G SKUs), allowing them to operate as a single device with unified management.

Q: What Layer 3 routing capabilities does this switch support?
A: This Layer 3 switch supports static routing, RIPv2, and policy-based routing (PBR), along with IPv4 and IPv6 functionality, making it suitable for inter-VLAN routing and basic network segmentation in branch deployments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
