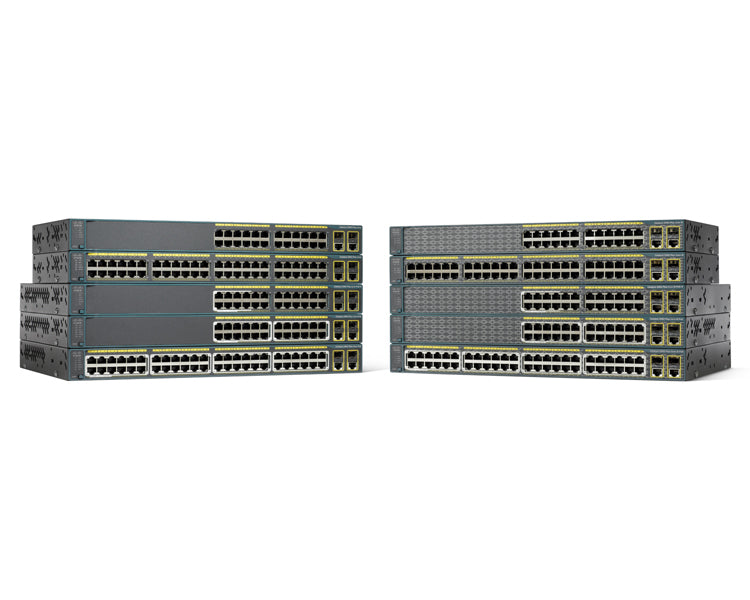

• Cisco WS-C2960+24PC-L 24-port PoE switch with 2x 1G uplinks
1 1

Cisco

Cisco WS-C2960+24PC-L | Catalyst 2960-Plus 24-Port PoE Switch, 370W, LAN Base

WS-C2960+24PC-L

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-Plus 24PC-L is a fixed-configuration Fast Ethernet Layer 2 switch built for branch offices, remote sites and retail locations. It suits conventional workspaces with IP phones and PoE access points, as well as building infrastructure and physical security deployments that need dependable access-layer connectivity.

It provides 24 10/100 ports with IEEE 802.3af PoE, delivering up to 15.4W per port from a 370W PoE budget. Two dual-personality uplinks accept either SFP modules or 1000BASE-T copper. Forwarding bandwidth is 16 Gbps with a 6.5 Mpps forwarding rate, and the switch supports 255 active VLANs from a pool of 4K VLAN IDs. It carries 64 MB of flash and 128 MB of DRAM in a 1RU chassis. This SKU runs the LAN Base feature set, and the -L model is tied to that feature set.

The internal power supply is auto-ranging for 100 to 240 VAC, and an optional Cisco RPS 2300 can be connected for redundant power. The switch is supported by Cisco Prime Infrastructure and Cisco's wider range of network management tools.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Enterprise-class QoS with four egress queues per port, strict priority queuing, SRR scheduling and WTD congestion avoidance
- Flow-based rate limiting and up to 64 aggregate or individual policers per port
- Security features including Flexible Authentication, 802.1x Monitor Mode, RADIUS Change of Authorization, Port Security, Dynamic ARP Inspection and IP Source Guard
- Private VLAN Edge for port isolation within a VLAN
- Cisco Catalyst SmartOperations: Smart Install, Auto Smartports and Smart Troubleshooting
- Cisco EnergyWise technology to measure and manage energy used by connected devices
- IEEE 802.3af PoE with intelligent power management for flexible allocation across ports
- Optional Cisco RPS 2300 redundant power system support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 10/100 Ethernet ports: 24
- PoE standard: IEEE 802.3af, up to 15.4W per port on all 24 ports
- Available PoE power: 370W
- Uplink interfaces: 2 dual-personality (SFP or 1000BASE-T)
- Cisco IOS Software feature set: LAN Base
- Forwarding bandwidth: 16 Gbps
- Forwarding rate (64-byte L3 packets): 6.5 Mpps
- Maximum active VLANs: 255
- VLAN IDs available: 4K
- MTU (L3 packet): 9000 bytes
- Jumbo frame (Ethernet frame): 9018 bytes
- Flash memory: 64 MB
- DRAM: 128 MB
- Dimensions (H x W x D): 4.4 x 45.0 x 33.2 cm
- Weight: 5.4 kg
- Mounting: 1RU rack-mountable
- Input voltage: 100 to 240 VAC autoranging, 50 to 60 Hz
- Operating temperature up to 1500 m: -5 to 45 C
- Operating temperature up to 3000 m: -5 to 40 C
- Storage temperature: -25 to 70 C
- Relative humidity: 10% to 95% noncondensing
- Acoustic noise, sound pressure (typical/max): 43 / 46 dBA
- MTBF: 382,000 hours

FAQs

Q: Does this switch need a separate licence?
A: No. It runs the LAN Base Cisco IOS Software feature set, which is tied to the -L model. LAN Lite (-S) models cannot be upgraded to LAN Base.

Q: How much PoE power does it provide?
A: It has a 370W PoE budget and supports IEEE 802.3af on all 24 ports at up to 15.4W each. Power is allocated intelligently across ports.

Q: What can I connect to the two uplink ports?
A: The two uplinks are dual-personality, so each can use an SFP module or 1000BASE-T copper. Supported SFP modules are listed in the Cisco Transceiver Compatibility matrix.

Q: Can it be connected to a redundant power system?
A: Yes. It supports the optional Cisco RPS 2300 (PWR-RPS2300) through its RPS connector.

Q: Are the ports Gigabit or Fast Ethernet?
A: The 24 access ports are 10/100 Fast Ethernet. Gigabit speed is available on the two dual-personality uplinks only.
