Cisco

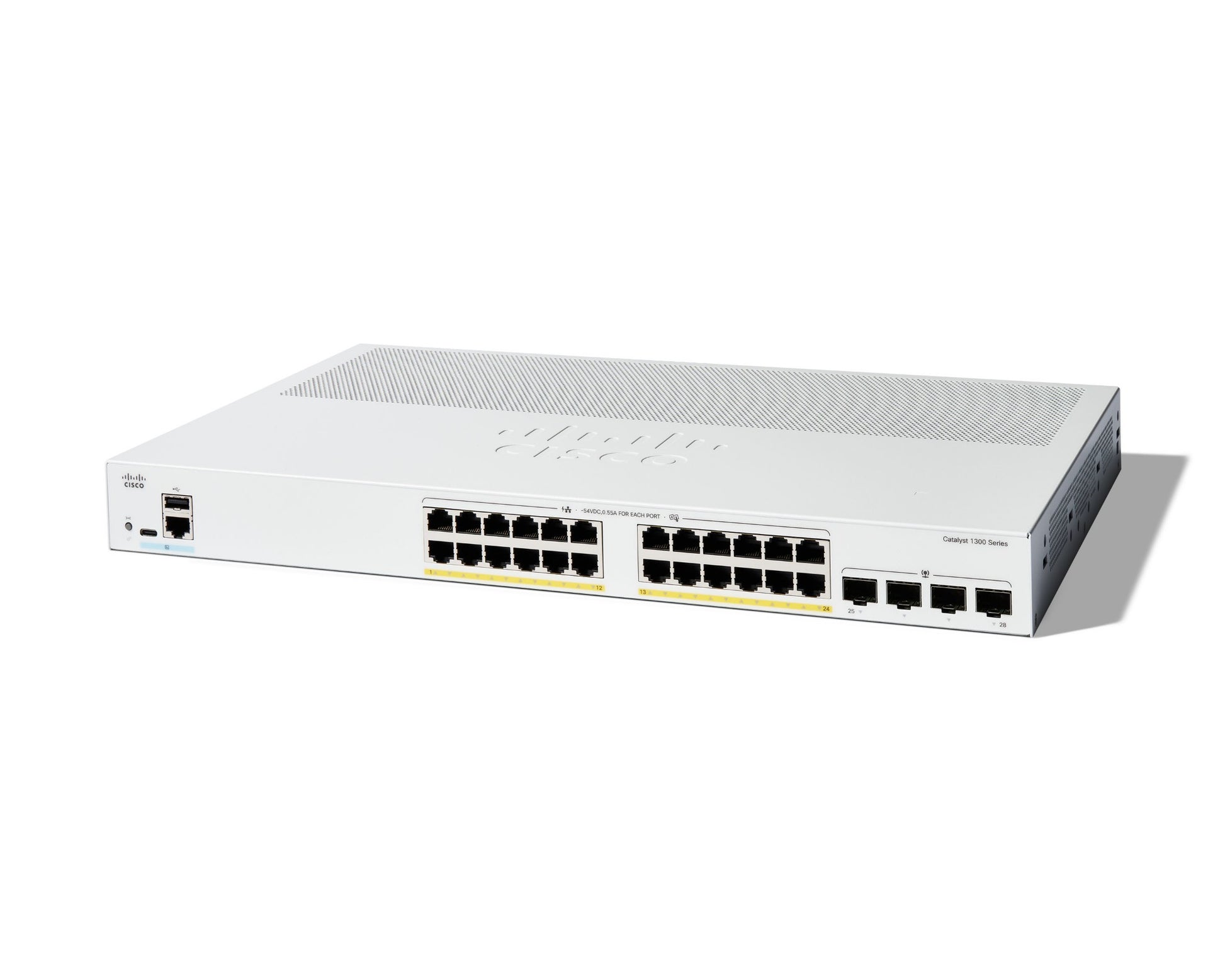

Cisco C1300-24P-4G | Catalyst 1300 24-Port Gigabit PoE+ Switch, 195W, 4x 1G SFP

C1300-24P-4G

2 in stock

$1,314.50 inc. GST
$1,195.00 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 1300 C1300-24P-4G is a fixed, managed Layer 3 switch built for branch offices and SMB networks. It suits secure office connectivity, unified communications with IP phones, guest access, and powering PoE endpoints such as wireless access points and IP surveillance cameras. Its compact, fanless design allows deployment outside the wiring closet, in retail stores, open-plan offices and classrooms.

This 24-port GE PoE+ variant provides 24 Gigabit Ethernet RJ-45 ports supporting 802.3af and 802.3at, with a 195W PoE budget, plus 4x 1G SFP uplinks for 28 ports in total. Switching capacity is 56 Gbps at wire speed, with a forwarding rate of 41.67 Mpps, a 1.5 MB packet buffer and a 16,000-entry MAC table. Front Panel Stacking lets up to 8 switches be managed as a single unit with one IP address. It runs from an internal universal 100-240V supply, and management is available through the Cisco Business Dashboard, the Cisco Business mobile app, the web GUI, the CLI or SNMP.

The SFP uplinks work with Cisco gigabit modules including MGBSX1, MGBLX1, MGBLH1, MGBT1, GLC-SX-MMD, GLC-EX-SMD, GLC-ZX-SMD, GLC-LH-SMD, GLC-BX-U/D, GLC-TE and 1G CWDM SFP modules.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Managed through the Cisco Business Dashboard and the Cisco Business mobile app, with an embedded probe and direct management
- Cisco Network Plug and Play for near-zero-touch provisioning
- Web GUI, full text-view CLI and SNMP management
- Dual software images for upgrades with minimal downtime
- Security with IEEE 802.1X, port security, web-based authentication, chip guard and boot integrity
- Persistent PoE keeps power maintained to endpoints during a switch reboot
- Dynamic Layer 3 routing with IPv4 and IPv6 support
- Front Panel Stacking of up to 8 switches managed as a single unit with one IP address

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Model: C1300-24P-4G
- RJ-45 ports: 24 x Gigabit Ethernet
- Uplink ports: 4 x 1G SFP
- Total system ports: 28 x Gigabit Ethernet
- PoE standard: 802.3at PoE+, 802.3af PoE and Cisco pre-standard (legacy) PoE
- Power dedicated to PoE: 195W
- Number of PoE ports: 24
- Switching capacity: 56 Gbps (wire speed, nonblocking)
- Forwarding rate (64-byte packets): 41.67 Mpps
- Packet buffer: 1.5 MB (dynamically shared)
- MAC table: 16,000 addresses
- Jumbo frames: up to 9000 bytes (default MTU 2000 bytes)
- CPU: ARM dual-core at 1.5 GHz
- DRAM: 1 GB DDR4
- Flash: 1GB SLC
- Console port: Cisco standard RJ-45 console port and USB Type C port
- USB port: USB Type C on front panel
- Cabling type: UTP Category 5e or better for 1000BASE-T
- Power supply: 100-240V 50-60 Hz, internal, universal
- Power consumption (system, worst case): 27.1 W at 110V / 27.5 W at 220V
- Power consumption (with PoE): 233.2 W at 110V / 230.5 W at 220V
- Heat dissipation: 795.2 BTU/hr
- Dimensions (W x D x H): 444.3 x 299 x 43.94 mm (17.49 x 11.77 x 1.73 in)
- Weight: 3.53 kg (7.78 lb)
- Fans / acoustic noise: Fanless
- Operating temperature: -5 to 50 C (23 to 122 F)
- Operating humidity: 10% to 90% relative, noncondensing
- MTBF at 25 C: 396,413 hours
- Certifications: UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

FAQs

Q: Does this switch need a licence or subscription to operate?
A: No licence or subscription is required for operation. Management is available through the Cisco Business Dashboard, the web GUI, the CLI or SNMP.

Q: How much PoE power does it provide?
A: It has a 195W PoE budget shared across 24 ports supporting 802.3af and 802.3at, so the number of full-power PoE+ devices it can run at once is limited by that total.

Q: Which SFP modules work in the uplink ports?
A: The 4 SFP uplinks work with Cisco gigabit modules including MGBSX1, MGBLX1, MGBLH1, MGBT1, GLC-SX-MMD, GLC-EX-SMD, GLC-ZX-SMD, GLC-LH-SMD, GLC-BX-U/D, GLC-TE and 1G CWDM SFPs.

Q: Can multiple switches be stacked?
A: Yes. Front Panel Stacking supports up to 8 switches managed as a single unit with one IP address.

Q: Can it be installed outside a wiring closet?
A: Yes. It is fanless and silent, which makes it suitable for open-plan offices, classrooms and retail spaces. It is also 1U rack-mountable.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
