• Cisco WS-C2960+24TC-L switch with 24x 10/100 ports and 2x 1G uplinks
1 1

Cisco

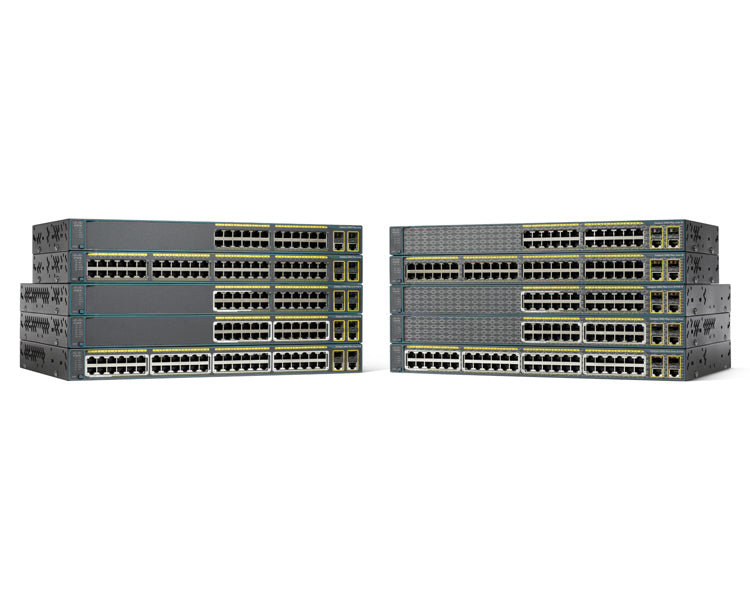

Cisco WS-C2960+24TC-L | Catalyst 2960-Plus 24-Port 10/100 Switch, LAN Base

WS-C2960+24TC-L

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 2960-Plus 24TC-L is a fixed-configuration Fast Ethernet Layer 2 access switch built for branch offices, remote sites and retail locations, conventional desktop workspaces, and building infrastructure or physical security devices. It is a non-PoE model aimed at cost-effective wired access.

It provides 24 x 10/100 Fast Ethernet ports plus 2 dual-purpose uplinks that take either an SFP module or 1000BASE-T. Forwarding bandwidth is 16 Gbps with a forwarding rate of 6.5 Mpps on 64-byte Layer 3 packets. It supports up to 255 active VLANs from 4K VLAN IDs, and carries 64 MB of flash and 128 MB of DRAM. It ships with the Cisco IOS LAN Base feature set, which is tied to the hardware model, so no separate licence is needed.

Power comes from an internal AC supply, auto-ranging 100 to 240 VAC, with measured consumption of about 18.4 W at idle. An RPS connector supports the optional Cisco RPS 2300 (PWR-RPS2300). It is a 1RU rackmount unit weighing 3.6 kg.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Enterprise-class Layer 2 switching for branch offices, workspaces and infrastructure applications
- Cisco Catalyst SmartOperations: Smart Install zero-touch deployment, Auto Smartports and Smart Troubleshooting
- Cisco EnergyWise technology to measure and manage energy use of connected devices
- QoS with four egress queues per port, strict priority queuing, SRR scheduling and up to 64 policers per port
- Security including IEEE 802.1X, Dynamic ARP Inspection, IP Source Guard and Private VLAN Edge
- Management via CLI, SNMP v1/v2c/v3, RMON and Cisco Prime Infrastructure
- Dual-purpose uplinks accept SFP modules or 1000BASE-T

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 10/100 Ethernet interfaces: 24
- Uplink interfaces: 2 (SFP or 1000BASE-T)
- Cisco IOS Software feature set: LAN Base
- Available PoE power: None (non-PoE model)
- Flash memory: 64 MB
- DRAM: 128 MB
- Forwarding bandwidth: 16 Gbps
- Forwarding rate (64-byte L3 packets): 6.5 Mpps
- Maximum active VLANs (LAN Base): 255
- VLAN IDs available: 4K
- Maximum transmission unit (L3 packet): 9000 bytes
- Jumbo frame (Ethernet frame): 9018 bytes
- Dimensions (H x W x D): 1.73 x 17.70 x 9.52 in (4.4 x 45.0 x 24.2 cm)
- Weight: 3.6 kg (8 lb)
- Operating temperature up to 1500 m: -5 to 45 C
- Operating temperature up to 3000 m: -5 to 40 C
- Storage temperature up to 4573 m: -25 to 70 C
- Operating relative humidity: 10% to 95% non-condensing
- Input voltage: 100 to 240 VAC auto-ranging, 50 to 60 Hz
- Input current: 0.4 to 0.2 A
- RPS DC input: 2A at 12V (Cisco RPS 2300)
- Measured power consumption: 18.4 W at 0% traffic, 18.6 W at 100% traffic
- MTBF: 667,000 hours

FAQs

Q: Does this switch need a separate licence?
A: No. It ships with the Cisco IOS LAN Base feature set, which is tied to the hardware model. LAN Base and LAN Lite are model-specific, so a LAN Lite (-S) model cannot be upgraded to LAN Base.

Q: Does the WS-C2960+24TC-L support PoE?
A: No. This is a non-PoE model and provides no PoE power budget. Powered devices need a separate power source or a PoE injector.

Q: What can be used in the two uplink ports?
A: The 2 dual-purpose uplinks accept SFP modules or 1000BASE-T. Check the Cisco transceiver compatibility matrix for supported SFP modules.

Q: Can it be connected to a redundant power system?
A: Yes. It has an RPS connector for the optional Cisco RPS 2300 (PWR-RPS2300) redundant power system.

Q: How does it differ from other 2960-Plus 24-port models?
A: This SKU has 24 x 10/100 ports, 2 x SFP/1000BASE-T uplinks, LAN Base software and no PoE. PoE and LAN Lite variants in the family differ on those points.
