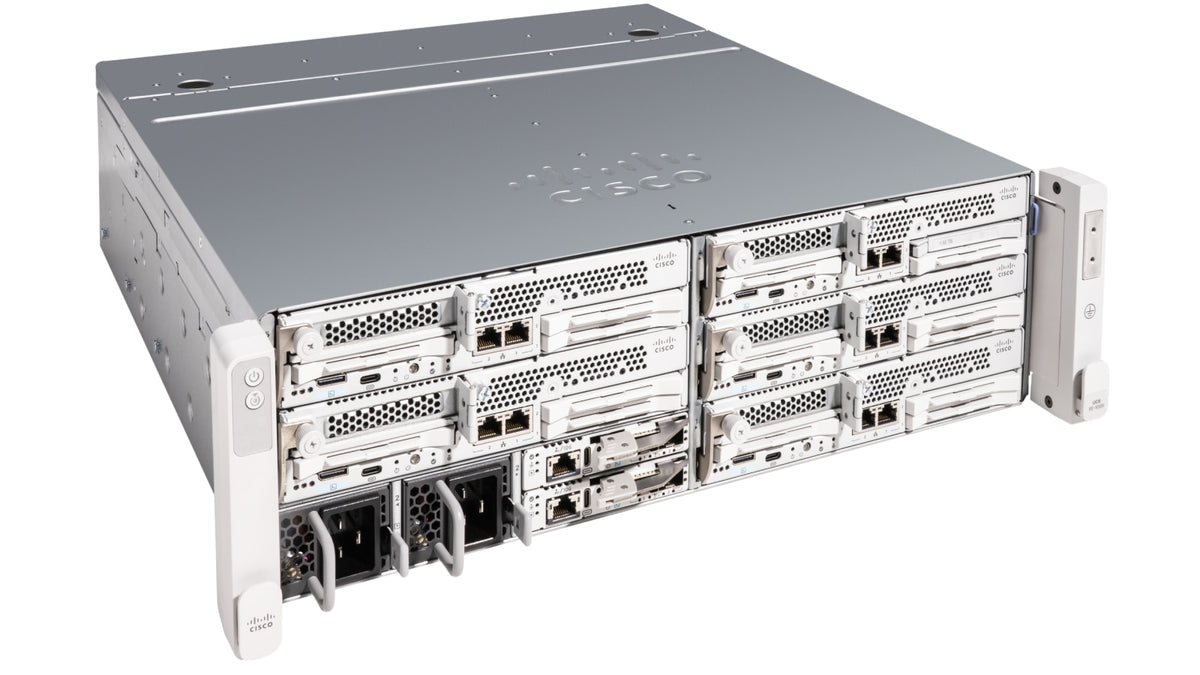

Cisco UCSXE-9305-CHS-U | UCS XE9305 3RU Edge Chassis, 5 Slots, Non-NFC, Fans

UCSXE-9305-CHS-U

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS XE9305 is a 3 RU, short-depth, multi-mountable modular edge chassis from Cisco's Unified Edge platform. It provides five front-facing half-width node slots for compute nodes and future networking modules, making it suited to retail, branch and remote-site deployments that need compute, storage, networking and security in a compact, quiet platform. It is managed at scale through Cisco Intersight.

This UCSXE-9305-CHS-U variant is the base chassis with a non-NFC left slam latch and five 80 mm hot-swappable dual-rotor fan modules. The chassis measures 17.32 in wide by 5.12 in high and 18 in deep, rising to 23 in with a security bezel or air filter. It has two power supply bays for 2400 W Titanium AC PSUs with N+N grid redundancy, and two bays for hot-swappable Edge Chassis Management Controllers (eCMC). Each eCMC provides an embedded 25 Gbps switch with 145 Gbps of switching bandwidth, 2 x 10 Gbps SFP+ uplinks, a 1 Gbps RJ-45 management port and 2 x USB-C ports. The eCMCs, PSUs, bezel, air filter, mounting accessories and cables are ordered separately.

The chassis accepts UCS XE130c M8 and XE150c M8 compute nodes, as well as C8255-G2-UCSXE Secure Router Nodes. It requires two UCSXE-ECMC-G1 eCMCs per chassis. No licence is needed for the chassis itself, but Cisco Intersight is required for management.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Five front-facing flexible slots for compute nodes and future networking and SASE modules
- Two hot-swappable eCMCs forming a unified 25 Gbps fabric between nodes and upstream networks
- Hot-swappable, front-removable 2400 W Titanium PSUs with N+N redundancy
- Acoustically optimised hot-swappable fans, serviceable from the top and rear without tools
- Optional locking bezel with a separately replaceable air filter
- Multiple mounting options: sliding rail kit (4-post), static kit (2-post), wall and shelf brackets
- Cloud management through Cisco Intersight, including zero-touch provisioning and fleet management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Height: 5.12 in (13 cm), 3 RU
- Width: 17.32 in (44 cm)
- Depth: 18 in (45.7 cm) server only, 23 in (58.4 cm) with security bezel or air filter
- Compute node slots: 5 x half-width
- Fan modules: 5 x 80 mm hot-swappable dual-rotor fans
- Power supply bays: 2
- Power supply options: 2400 W Titanium AC or 2400 W DC, 12 V output
- AC input voltage: 100 to 127 V AC and 200 to 240 V AC, 47 to 63 Hz
- DC input voltage: -48 to -72 V DC
- Power redundancy: grid (N+N)
- Power connector: IEC60320 C20
- Chassis management: 2 x Edge Chassis Management Controllers (eCMC)
- eCMC embedded switch: 145 Gbps switching bandwidth
- eCMC ports: 2 x 10 Gbps SFP+ uplinks, 1 x 1 Gbps RJ-45 management, 2 x USB-C
- Fabric bandwidth: 50 Gbps Ethernet per compute node
- GPU support: one dedicated PCIe Gen5 slot for a 75 W HH/HL GPU such as NVIDIA L4
- Weight (empty chassis with 5 fans, 2 PSUs, 2 eCMCs): 37.94 lbs (17.21 kg)
- Operating altitude: 0 to 10,000 ft (0 to 3000 m)
- Management: Cisco Intersight
- Safety: UL 60950-1, IEC 60950-1, AS/NZS 60950-1
- EMC emissions: FCC Part 15 Class A, AS/NZS CISPR22 Class A, EN55022 Class A

FAQs

Q: Does this chassis need a licence?
A: No licence is required for the chassis itself. Cisco Intersight is required for management. Intersight Server licences apply to the compute nodes, while a chassis populated only with C8255-G2-UCSXE Secure Router Nodes needs no Intersight licence.

Q: What power supplies does it use?
A: It has two bays for 2400 W Titanium AC PSUs (2400 W at 200-240 VAC, reduced output at 100-127 VAC) or 2400 W DC PSUs (-48 to -72 V DC). They provide N+N grid redundancy and an IEC C20 inlet. Use the Cisco UCS Power Calculator to size your configuration.

Q: Which nodes and controllers does the chassis work with?
A: It accepts UCS XE130c M8 (12, 20 or 32-core) and XE150c M8 (20 or 32-core) compute nodes, plus C8255-G2-UCSXE Secure Router Nodes. It requires two UCSXE-ECMC-G1 eCMCs per chassis, with an optional 75 GB M.2 extended image cache.

Q: How does this SKU differ from the NFC variant?
A: UCSXE-9305-CHS-U uses the non-NFC left slam latch, so it cannot be claimed through the Intersight mobile app by NFC tap. It includes the five fan modules, while the eCMCs, bezel, air filter, mounting accessories, PSUs and cables are ordered separately.

Q: What mounting options are available?
A: The chassis is multi-mountable, with a sliding rail kit for 4-post racks, a static kit for 2-post racks, and wall and shelf brackets. Mounting hardware is ordered separately.
