Cisco

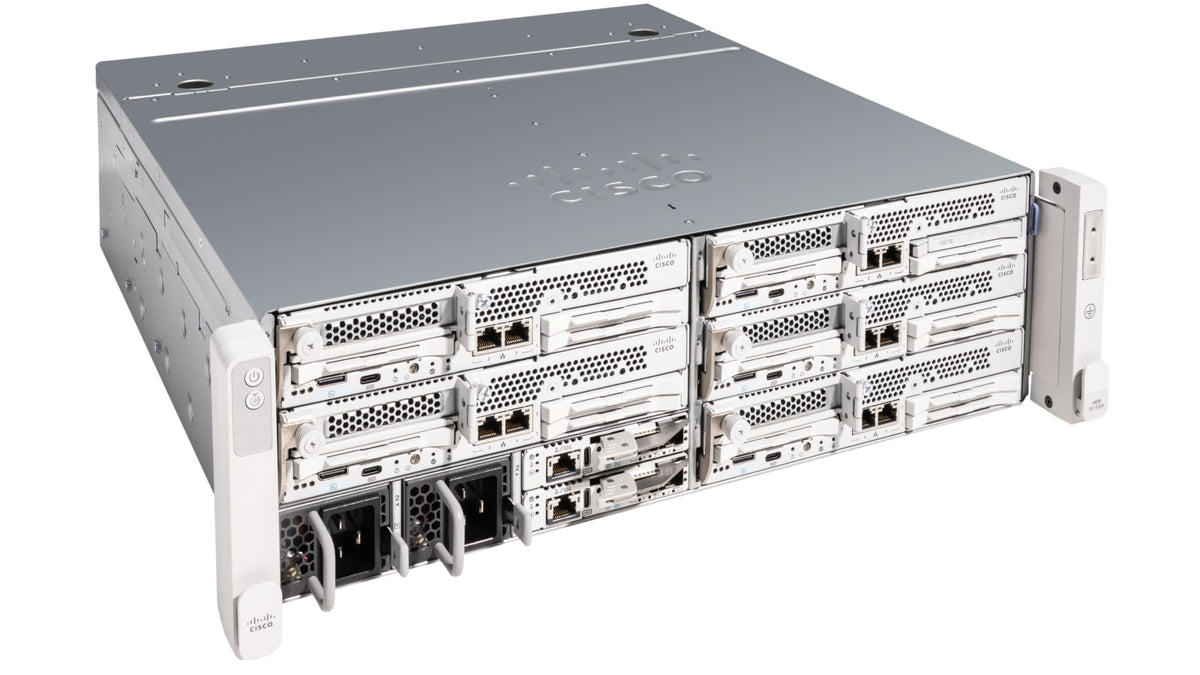

Cisco UCSXE-9305 | UCS XE9305 3RU Modular Edge Chassis, 5 Node Slots

UCSXE-9305

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS XE9305 is the 3RU, short-depth chassis at the heart of Cisco Unified Edge. It is built for distributed edge locations such as retail, branch and remote sites, where space and power are limited and skilled IT staff are rarely on hand. Five front-facing node slots host compute, storage, networking and security nodes, and the platform is managed through Cisco Intersight.

The chassis measures 13 cm high, 44 cm wide and 45.7 cm deep, and offers five half-width node slots plus one PCIe Gen5 GPU slot for a 75 W half-height, half-length GPU such as the NVIDIA L4. It has two bays for 2400 W Titanium AC power supplies in an N+N arrangement and five 80 mm hot-swappable dual-rotor fans. Two Cisco Edge Chassis Management Controllers (UCSXE-ECMC-G1) provide an embedded 25 Gbps switch, each with 2x 10G SFP+ uplinks and a 1G RJ-45 management port. This is the base chassis SKU, so the eCMCs, power supplies, fans, bezel and mounting hardware are specified separately.

Supported nodes include the UCS XE130c M8 and XE150c M8 compute nodes and the Cisco C8255-G2-UCSXE Secure Router Node. Mounting options cover 4-post sliding rails, 2-post static kits, wall brackets and shelf mounting.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Modular edge platform combining compute, storage, networking and security nodes
- Zero-touch deployment and remote lifecycle management through Cisco Intersight
- Active-active 25 Gbps switching embedded in the chassis management controllers
- Hot-swappable eCMCs, power supplies and fans
- Acoustically optimised fan control for quiet operation in office-like spaces
- NFC identifier for chassis claiming and troubleshooting with the Intersight mobile app
- Multiple mounting options: 4-post sliding rails, 2-post static kit, wall and shelf brackets
- Supports infrastructure software such as Nutanix, Red Hat, VMware and SUSE

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 3RU short-depth modular edge chassis
- Dimensions: 13 cm H x 44 cm W x 45.7 cm D (server only)
- Depth with security bezel or air filter: 58.4 cm
- Node slots: 5 half-width front-facing slots
- Chassis management: 2 hot-swappable Cisco Edge Chassis Management Controllers (UCSXE-ECMC-G1)
- eCMC switching: 25 Gbps embedded switch, 145 Gbps switching bandwidth
- eCMC ports: 2x 10G SFP+ uplinks, 1x 1G RJ-45 management port, 2x USB-C per eCMC
- Fabric bandwidth: 50 Gbps Ethernet per compute node
- GPU: 1 PCIe Gen5 slot for a 75 W HH/HL GPU such as NVIDIA L4
- Fans: 5x 80 mm hot-swappable dual-rotor
- Power supply bays: 2, supporting 2400 W Titanium AC PSUs
- Power redundancy: N+N
- Input voltage: 100 to 127 VAC or 200 to 240 VAC, 47 to 63 Hz
- Power connector: IEC320 C20
- Management: Cisco Intersight
- Operating temperature: 5 to 45 C
- Operating humidity: 5% to 85% noncondensing
- Operating altitude: 0 to 3000 m
- Weight: 17.21 kg empty chassis with 5 fans, 2 PSUs and 2 eCMCs

FAQs

Q: How does UCSXE-9305 differ from UCSXE-9305-U and UCSXE-9305=?
A: UCSXE-9305 is the base chassis. The eCMCs, bezel, air filter, mounting kit, power supplies, fans and cables are specified separately. UCSXE-9305-U is the configured version and UCSXE-9305= is the spare part.

Q: Does it need Cisco Intersight?
A: Yes. The chassis is managed through Cisco Intersight, and a separate Intersight licence or subscription tier is needed for management and full functionality.

Q: What power supplies does it use?
A: It has two bays for 2400 W Titanium AC power supplies in an N+N arrangement, with IEC C20 inputs. Output per PSU is 2400 W at 200 to 240 VAC and lower at 100 to 127 VAC.

Q: Which nodes can I install?
A: The chassis supports the UCS XE130c M8 and XE150c M8 compute nodes and the Cisco C8255-G2-UCSXE Secure Router Node. It holds up to five single-slot nodes, or a mix of single- and dual-slot nodes.

Q: Which management controllers does it require?
A: It takes two Cisco Edge Chassis Management Controllers, part number UCSXE-ECMC-G1. Each provides a 25 Gbps embedded switch, 2x 10G SFP+ uplinks and a 1G RJ-45 management port.

Q: Can it hold a GPU?
A: Yes. It has one PCIe Gen5 slot that accepts a 75 W half-height, half-length GPU such as the NVIDIA L4.
