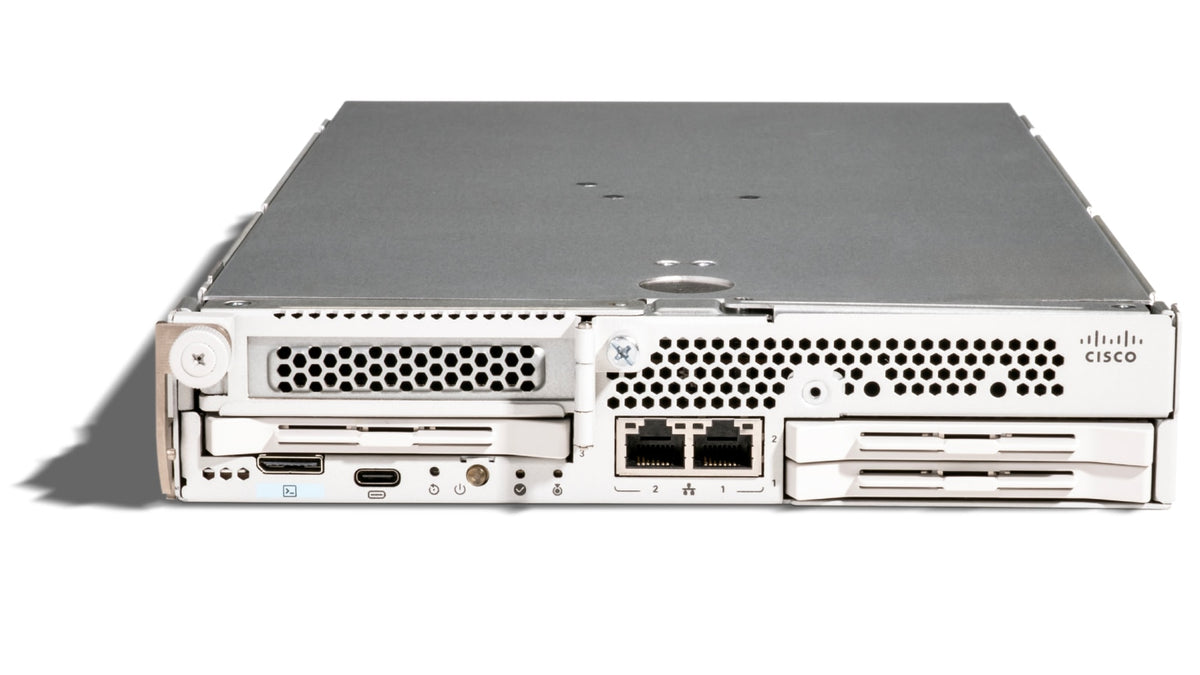

Cisco UCSXE-130C-M8-12-U | UCS XE130c M8 12-Core Compute Node, 1RU, Xeon 6

UCSXE-130C-M8-12-U

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS XE130c M8 is a 1 RU, half-width, sled-based compute node from the Cisco Unified Edge range. It is built for edge infrastructure deployments such as bare-metal servers, virtualisation, containers and AI/ML workloads in distributed locations, and installs in the Cisco UCS XE9305 Chassis.

This SKU is the 12-core version, powered by a single Intel Xeon 6 SoC with P-cores running at 2.0 GHz, and is supplied as a standalone node without storage or memory. The board provides 8 DIMM slots across 4 memory channels for DDR5-6400 RDIMMs, up to 768 GB using 8 x 96 GB modules. Connectivity includes two rear 25 Gbps ports to the chassis mid-plane and two front 10 Gbps RJ-45 host ports. Storage options include up to 4 front E3.S NVMe drives in the Storage-Optimized configuration or 3 in the IO-Optimized configuration, plus two M.2 SSDs with hardware RAID 1.

Expansion includes a PCIe Gen5 slot for a 75 W half-height, half-length GPU such as the NVIDIA L4, and a second PCIe Gen5 adapter slot for NICs, DPUs or IPUs in the IO-Optimized configuration. Management is handled through Cisco Intersight.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Tool-less, sled-based design for easy serviceability
- Intel AMX, AVX-512, QAT v2.2, DSA and Intel VT acceleration
- Intel Boot Guard, TXT, TDX, SGX and TME-MK security features
- Supports PCIe GPUs, DPUs, IPUs and adapters
- Storage-Optimized and IO-Optimized configurations
- Up to five nodes per UCS XE9305 Chassis
- Zero-touch deployment and fleet management through Cisco Intersight
- Works with Nutanix, Red Hat, VMware and SUSE software

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Processor: 1 x Intel Xeon 6 SoC with P-cores, 12 cores, 2.0 GHz
- Form factor: 1 RU, half-width, sled-based compute node
- Memory slots: 8 DIMM slots across 4 memory channels
- Memory type: DDR5-6400 RDIMM, 16, 32, 48, 64 or 96 GB modules
- Maximum memory: 768 GB (8 x 96 GB)
- Rear network ports: 2 x 25 Gbps to chassis mid-plane
- Front network ports: 2 x 10 Gbps RJ-45 host ports
- Front-panel ports: 1 x KVM connector, 1 x USB-C
- Boot storage: 2 x M.2 SSD, up to 960 GB each, hardware RAID 1
- Storage-Optimized config: 4 x hot-swappable E3.S NVMe, up to 30 TB each
- IO-Optimized config: 3 x hot-swappable E3.S NVMe, up to 30 TB each
- GPU slot: 1 x PCIe Gen5 for a 75 W HH/HL GPU
- Adapter slot: 1 x PCIe Gen5 HH/HL, IO-Optimized configuration only
- Security: built-in TPM 2.0 for BMC, optional TPM 2.0 for host OS
- Management: Cisco Intersight
- Operating temperature: 5 to 45 C
- Operating humidity: 5% to 85% non-condensing
- Operating altitude: 0 to 3000 m

FAQs

Q: What chassis does the UCS XE130c M8 install in?
A: It installs in the Cisco UCS XE9305 Chassis, which holds up to five nodes in a 3 RU short-depth enclosure.

Q: Does this SKU include storage or memory?
A: No. This is the standalone 12-core node, so DIMMs and drives are added separately.

Q: What memory does it support?
A: It supports DDR5-6400 RDIMMs in 16, 32, 48, 64 or 96 GB sizes, in sets of 2, 4 or 8 across its 8 DIMM slots, up to 768 GB.

Q: Can I fit a GPU?
A: Yes. A dedicated PCIe Gen5 slot takes a 75 W half-height, half-length GPU such as the NVIDIA L4.

Q: How is the node powered?
A: Power is supplied by the UCS XE9305 chassis. The node does not have its own power supply.

Q: How does it differ from the other XE130c M8 SKUs?
A: This SKU has the 12-core CPU and is ordered standalone with no storage or memory. Other SKUs use 20 or 32 core processors.
