Cisco UCSXE-130C-M8-32-U | UCS XE130c M8 1U Edge Compute Node, 32-Core, Standalone

UCSXE-130C-M8-32-U

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

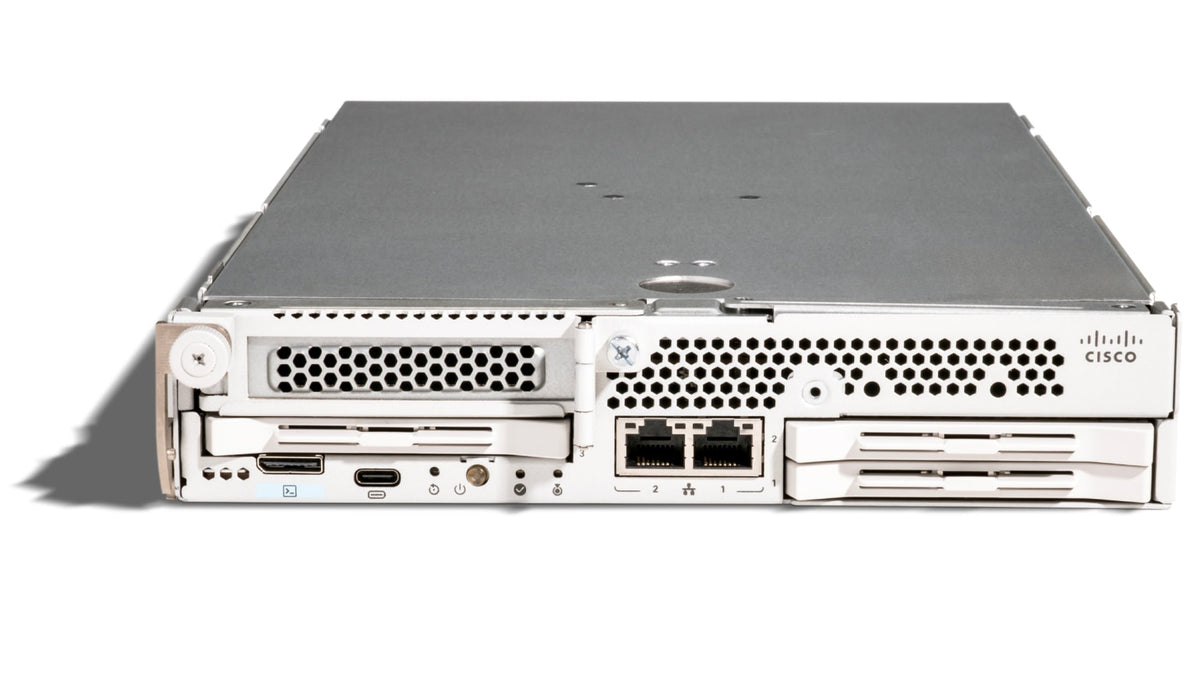

The UCS XE130c M8 is a 1 RU, half-width edge compute node for the Cisco Unified Edge platform, built on a single Intel Xeon 6 SoC with P-cores. It suits retail, branch and remote sites running bare-metal servers, virtualisation, containers and AI/ML inference, with zero-touch deployment and SaaS-managed operations at scale.

This SKU is the 32-core version with the standalone -U suffix, ordered without storage or memory. The processor runs at 2.0 GHz, with 8 DIMM slots across 4 memory channels for DDR5-6400 RDIMMs up to 768 GB. Connectivity is two 25 Gbps rear ports to the chassis mid-plane plus two 10 Gbps RJ-45 front host ports. Storage options include a mini module with two M.2 SSDs in hardware RAID 1, and four E3.S NVMe drives in the Storage-Optimized configuration or three in the IO-Optimized configuration. A dedicated PCIe Gen5 slot takes a 75 W half-height, half-length GPU such as the NVIDIA L4, while IO-Optimized builds add a PCIe Gen5 adapter slot.

The node installs in the Cisco UCS XE9305 3 RU chassis, up to five per chassis, and draws power from the chassis rather than its own PSU. Management is through Cisco Intersight, and no operating system or hypervisor is included.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Tool-less, sled-based 1 RU half-width design for easy serviceability
- Intel Xeon 6 SoC with Intel AMX, AVX-512, QAT v2.2, DSA, VT, TDX, SGX, TXT, Boot Guard and TME-MK
- Dedicated PCIe Gen5 GPU slot for edge AI inference
- Choice of Storage-Optimized or IO-Optimized configurations
- Hardware RAID 1 on the M.2 boot and storage module
- Zero-touch deployment and SaaS management via Cisco Intersight
- Edge-optimised chassis platform with quiet acoustic profile and high-particulate protection
- Ecosystem support for Nutanix, Red Hat, VMware and SUSE infrastructure software

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Processor: 1 x Intel Xeon 6 SoC with P-core, 32 physical cores, 2.0 GHz
- Form factor: 1 RU, half-width, sled-based compute node
- Chassis: Up to 5 nodes per UCS XE9305 3 RU chassis
- Memory slots: 8 DIMM slots, 4 memory channels
- Memory type: DDR5-6400 MT/s RDIMM, 16, 32, 48, 64 or 96 GB modules
- Maximum memory: 768 GB (8 x 96 GB)
- Rear network: 2 x 25 Gbps ports via chassis mid-plane to both Chassis Management Controllers
- Front network: 2 x 10 Gbps RJ-45 host ports
- Front-panel ports: 1 x KVM connector, 1 x USB-C
- Boot storage: Mini storage module with 2 x M.2 SSD, up to 960 GB each, hardware RAID 1
- Front storage (Storage-Optimized): 4 x hot-swappable E3.S NVMe, up to 30 TB each
- Front storage (IO-Optimized): 3 x hot-swappable E3.S NVMe, up to 30 TB each
- GPU slot: 1 x PCIe Gen5 for a 75 W HH/HL GPU, such as the NVIDIA L4
- PCIe adapter slot: 1 x PCIe Gen5 HH/HL slot, IO-Optimized configuration only
- Management: Cisco Intersight
- Security: Built-in TPM 2.0 for BMC, optional host TPM 2.0
- Power: Supplied by the UCS XE9305 chassis, no node-level PSU
- Operating temperature: 5 to 45 C
- Operating humidity: 5% to 85% non-condensing

FAQs

Q: What does the -U suffix mean on this SKU?
A: The -U suffix means the node is ordered standalone rather than as a chassis option. This SKU is the 32-core version, supplied without storage or memory.

Q: Which chassis does this compute node install in?
A: It installs in the Cisco UCS XE9305 3 RU chassis, which holds up to five nodes. The node has no PSU of its own and is powered from the chassis.

Q: What memory does the node use?
A: It has 8 DIMM slots across 4 memory channels and uses DDR5-6400 RDIMMs in 16, 32, 48, 64 or 96 GB sizes, up to 768 GB in total.

Q: Can it take a GPU for AI inference?
A: Yes. A dedicated PCIe Gen5 slot supports a 75 W half-height, half-length GPU such as the NVIDIA L4.

Q: How is the node managed and does it need a licence?
A: It is managed through Cisco Intersight, which requires an Intersight licence tier. No operating system or hypervisor is included.
